Description
This Short Arm system replaces all four lower link arms due to their vulnerability to offroad obstacles during offroad use.
The heavy duty Links Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Joints® are included. The weld on 1/4? thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.
System includes Fabtech's dual rate Long Travel coil springs and front lower shock mounts to allow for maximum offroad articulation and travel.
Excellent system for rocks, trail and overland expedition use.

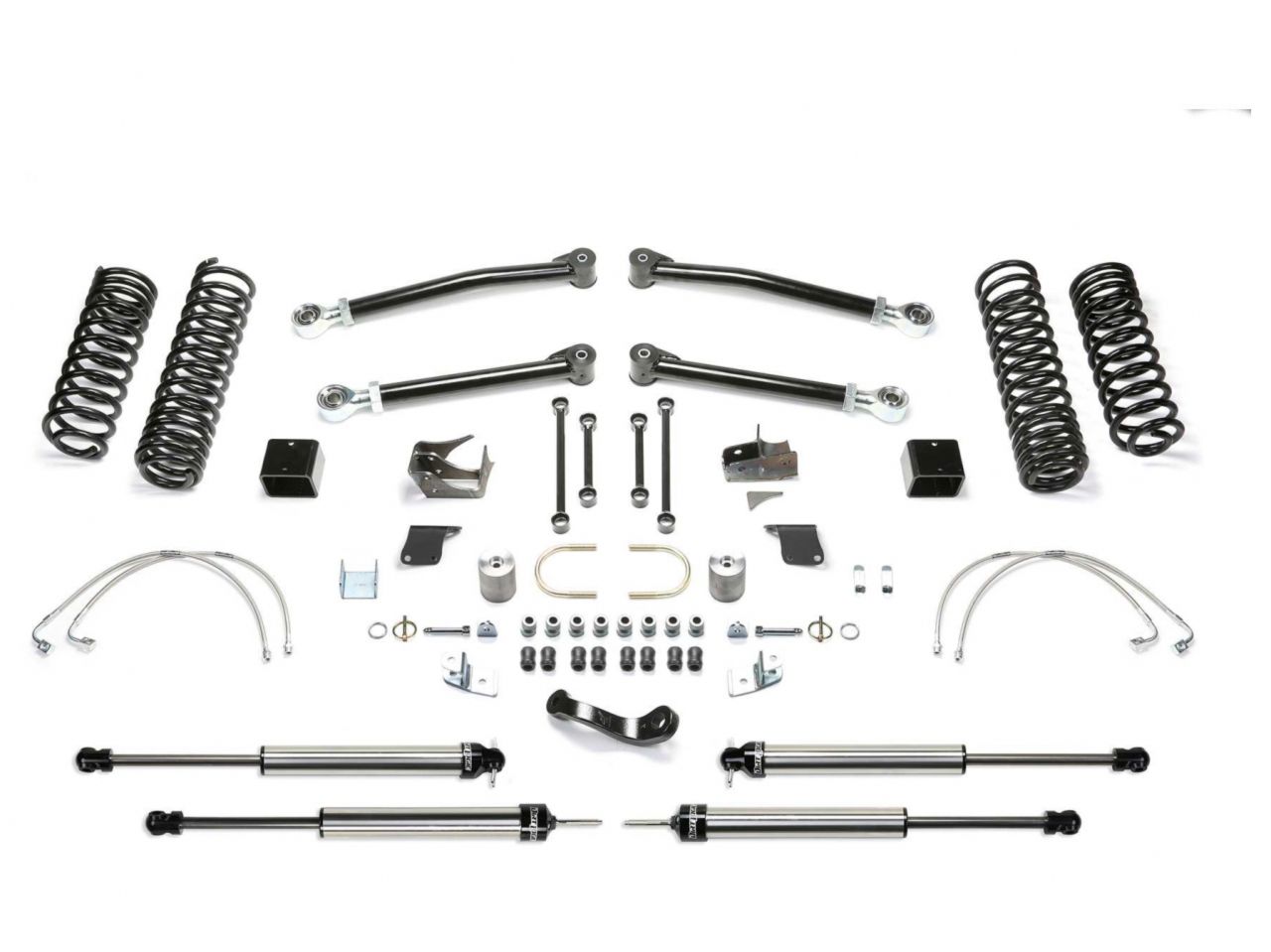

- Front & Rear Short Arm Lower Links
- Long Travel Front & Rear Coil Springs
- Front Lower Long Travel Shock Brackets
- Front & Rear Track Bar Brackets
- Front & Rear Sway Bar LInks
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Additional Information
DRIVE: 4WD
LIFT: 3"
MAKE: JEEP
MODEL: JK
SYSTEMS: TRAIL LONG TRAVEL SYSTEM
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
