Fabtech 3" Trail II System w/ Performance Shocks
3" Trail II System w/ Performance Shocks
Description
This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Joints® are included. The front adjustable Track Bar and bolt on rear track bar bracket with gusset recenters the axles for the increased ride height.
System includes Fabtech's Standard coil springs for great on and offroad suspension performance.
Perfect system for rocks, trail and overland expedition use.

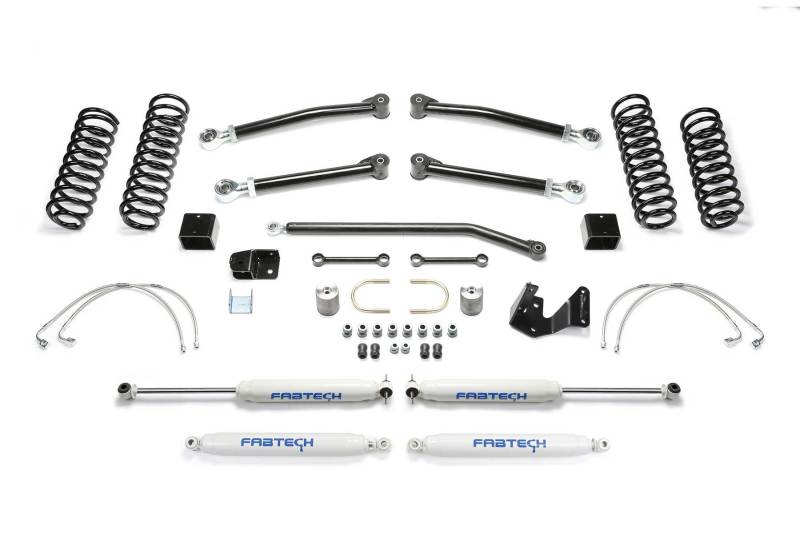

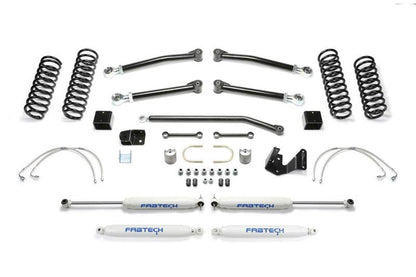

- Front & Rear Short Arm Lower Links
- Standard Front & Rear Coil Springs
- Front Adjustable Track Bar
- Front Sway Bar LInks
- Rear Track Bar Bracket w/Support
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Additional Information
LIFT: 3"
DRIVE: 4WD
MAKE: JEEP
SYSTEMS: TRAIL II SYSTEM
MODEL: JK
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 | Jeep | Wrangler | 75th Anniversary, Unlimited Sport S, Sport S, Unlimited 75th Anniversary, Unlimited Black Bear |
| 2010 | Jeep | Wrangler | Islander |
| 2007 - 2017 | Jeep | Wrangler | Rubicon, Unlimited Rubicon, Unlimited Sahara, Sahara |
| 2012 | Jeep | Wrangler | Unlimited |
| 2011 | Jeep | Wrangler | Unlimited 70th Anniversary, 70th Anniversary |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2010 - 2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2017 | Jeep | Wrangler | Unlimited Winter Edition, Unlimited Smoky Mountain |
| 2014 | Jeep | Wrangler | Willys Wheeler, Unlimited Willys Wheeler |
| 2007 - 2011 | Jeep | Wrangler | X, Unlimited X |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Sport S, Sahara, Rubicon, Unlimited Sport, Unlimited Sport S, Unlimited Rubicon, Unlimited Sahara, Sport |
