Fabtech 3" Trail II System w/ Dirt Logic 2.25 Shocks
Fabtech 3" Trail II System w/ Dirt Logic 2.25 Shocks
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 257.51 lb
- Barcode
- 00674866100794
Billable shipping weight; may include dimensional weight.
3" Trail II System w/ Dirt Logic 2.25 Shocks
Description

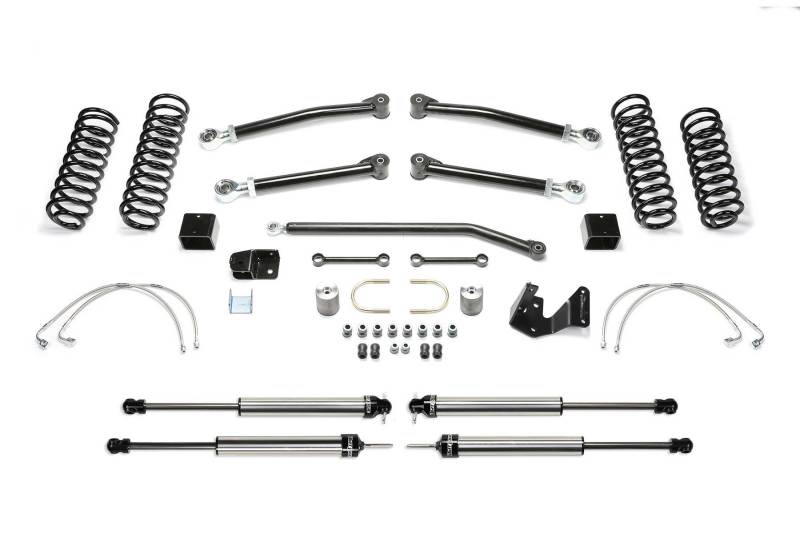

This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Joints® are included. The front adjustable Track Bar and bolt on rear track bar bracket with gusset recenters the axles for the increased ride height.
System includes Fabtech's Standard coil springs for great on and offroad suspension performance.
Perfect system for rocks, trail and overland expedition use.
- Front & Rear Short Arm Lower Links
- Standard Front & Rear Coil Springs
- Front Adjustable Track Bar
- Front Sway Bar LInks
- Rear Track Bar Bracket w/Support
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Additional Information
DRIVE: 4WD
LIFT: 3"
MAKE: JEEP
MODEL: JK
SYSTEMS: TRAIL II SYSTEM
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | Jeep | Wrangler | 70th Anniversary, Unlimited 70th Anniversary |
| 2010 | Jeep | Wrangler | Islander |
| 2007 - 2017 | Jeep | Wrangler | Rubicon, Unlimited Rubicon, Unlimited Sahara, Sahara |
| 2016 | Jeep | Wrangler | Sport S, Unlimited Sport S, Unlimited 75th Anniversary, 75th Anniversary, Unlimited Black Bear |
| 2012 | Jeep | Wrangler | Unlimited |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2017 | Jeep | Wrangler | Unlimited Smoky Mountain, Unlimited Winter Edition |
| 2010 - 2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2014 | Jeep | Wrangler | Unlimited Willys Wheeler, Willys Wheeler |
| 2007 - 2011 | Jeep | Wrangler | X, Unlimited X |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Sport, Unlimited Sahara, Rubicon, Sport S, Unlimited Sport, Sahara, Unlimited Sport S, Unlimited Rubicon |
