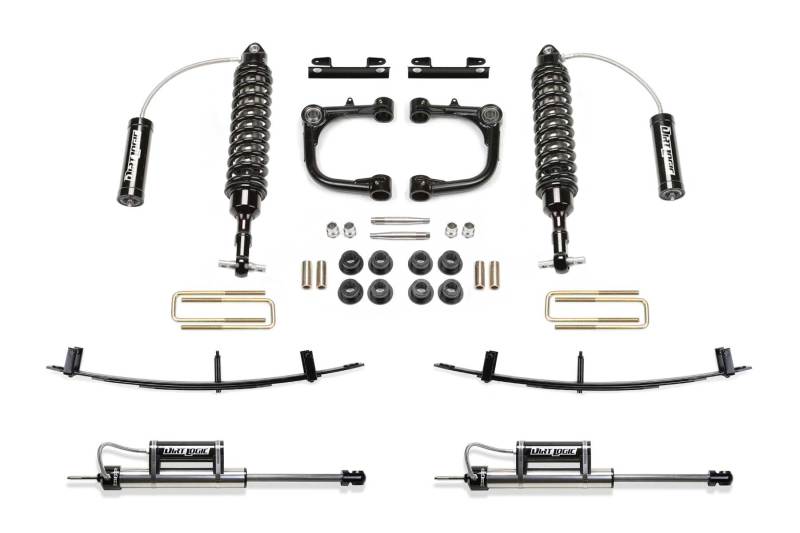

Fabtech 3 Inches Uniball UCA System w/ Front Dirt Logic 2.5 Resi Coilovers

Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

The replacement UCAs have been designed to work in conjunction with Fabtechs Dirt Logic 2.5 Coilover shocks providing 103 of wheel travel for a complete front suspension system upgrade.

A rear three leaf spring pack enhances the factory leaf springs by eliminating the stiff lower overload leaf. This allows for more flexibility and travel while enhancing the ride quality.

Front stainless steel Dirt Logic 2.5 Coilovers with cold wound springs provide 103 of wheel travel for aggressive offroad use. The rear Dirt Logic 2.25 shocks will also provide 103 of travel due the remote reservoir allowing for the full stroke of the shock.

FEATURES:

Arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball

Chromoly tubing reduces flex found in stock arms for more positive road feel

17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle

Arms are direct replacements for factory arms on suspensions that require additional strength and align ability

Three leaf rear spring pack for improved ride and articulation

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

2.53 OD Stainless Steel Body

2.253 OD Billet Aluminum Piston

7/83 NitroSteel® BlackPiston Rod

Cold Wound Coil Springs

Adjustable Coilover Construction

5/83 Spherical Ball Mounting Ends

2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 RESI SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

2.253 OD Stainless Steel Body

2.03 OD Billet Aluminum Piston

7/83 NitroSteel® BlackPiston Rod

Polyurethane Mounting Ends

2.253 OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

Vehicle Fitments:
