Fabtech 3 Inches Trail System w/ Stealth Shocks

This Trail system provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. On road, the suspension has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate.

The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation. The Fabtech heavy duty link arms are constructed of 1.75" OD. .250" thick wall steel tubing that are guaranteed never to bend. They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint® for longevity and a quiet ride.

Fabtechs long travel Dual Rate coil Springs are corner specific to the JL. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.

To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.

The factory angle of the draglink to the pitman arm does not change and there is no increased side load on the steering box sector shaft as compared to using a dropped pitman arm. This helps extends the life of the steering box with the increased ride height.

The heavy duty rear Track Bar bracket with side support maintains the factory roll center of the vehicle while centering the axle. Front and rear bumps stop extensions protect the suspension from over cycling.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components please see below.

This popular system is a top choice for daily drivers that enjoy tackling tough trails and overlanding with the comfort that they have a high quality complete suspension under their Jeep.

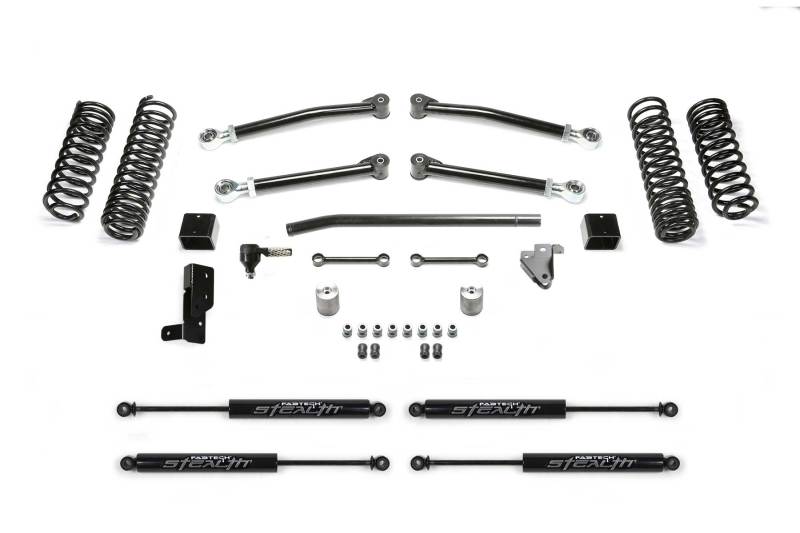

Front & Rear Dual Rate Coil Springs

Front & Rear Lower 5 Ton Link Arms

Front & Rear Bump Stop Extensions

Front & Rear Track Bar Bracket

Heavy Duty Flipped Draglink

Front & Rear Sway Bar Links

Front Shock Mount Bracket

Front & Rear Stealth Monotube Shocks

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality
