Fabtech 3 Inches Spacer System w/ Dirt Logic 2.25 Shocks

This economical suspension is the perfect way to lift a Jeep JL and keep the factory ride for use with oversized tires. This system comes complete with all the necessary heavy duty components for a quick easy installation.

The system includes front steel and rear billet coil spring spacers that retain the stock coils while the four bump stops extensions control the travel within the factory specifications.

The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. Extended rear sway bar links are provided to eliminate the links and sway bar from going over center and creating bind at full extension travel.

A heavy duty rear track bar bracket recenters the axle while retaining the factory roll center of the vehicle with the increased ride height.

As a shock upgrade with this system Dirt Logic 2.25 shocks are included for increased offroad damping and a smooth highway ride.

This is a great entry level system for those that want clearance for oversized tires while retaining the factory ride quality or upgrading the shocks.

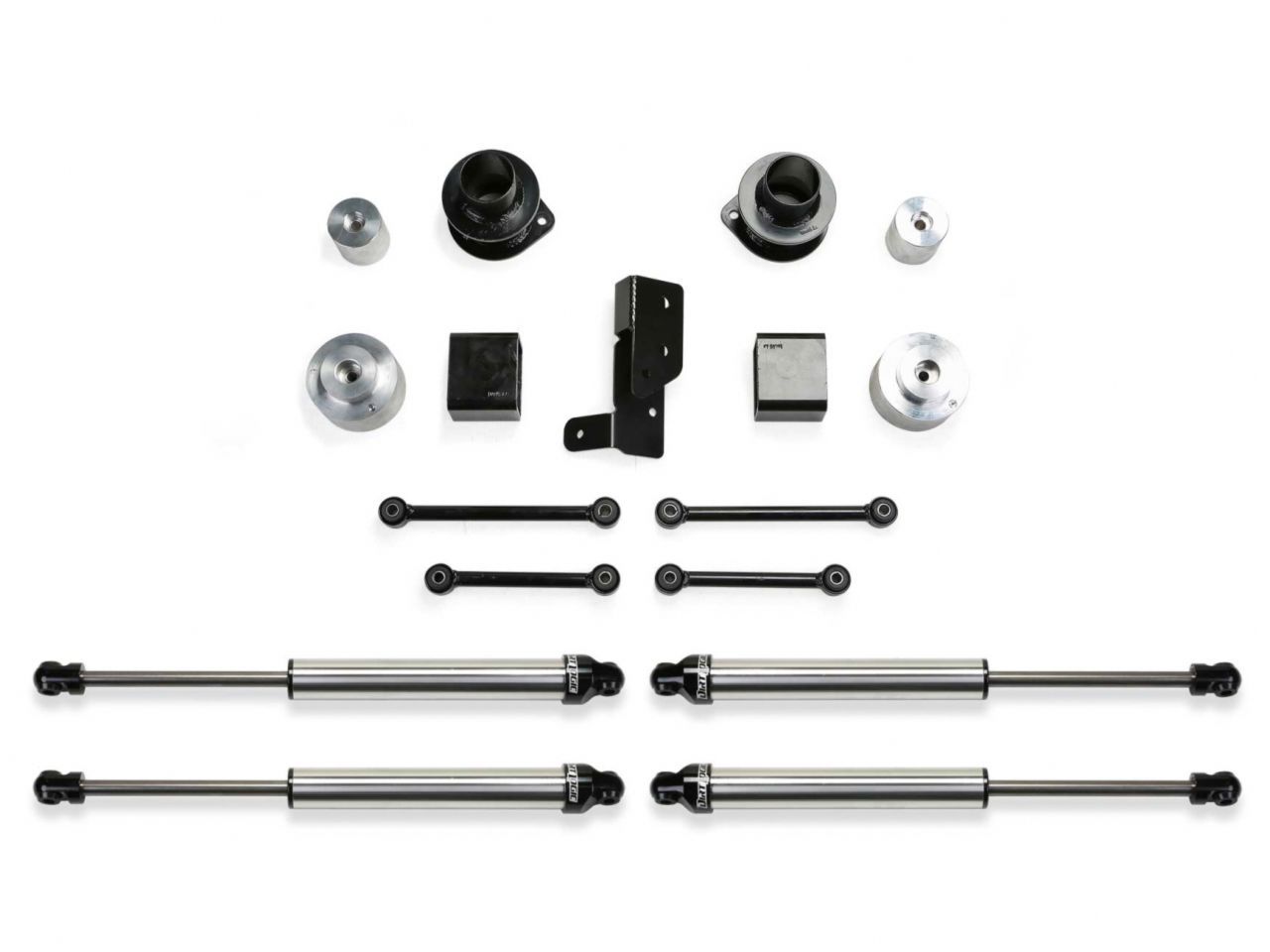

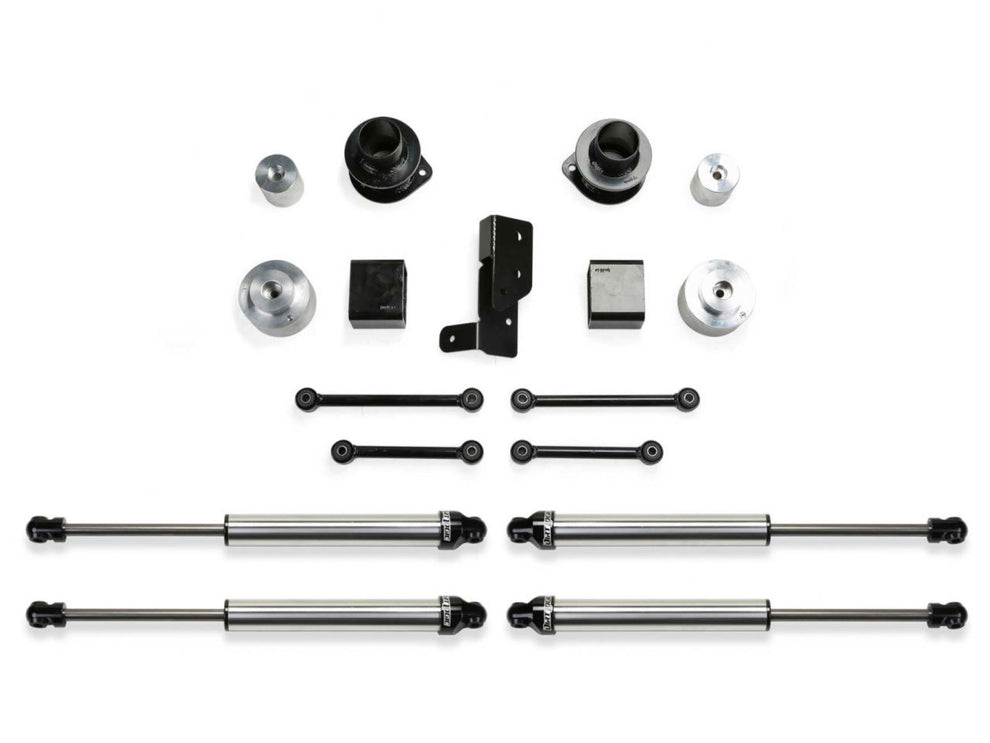

Front & Rear Coil Spring Spacers

Front & Rear Sway Bar Links

Front & Rear Bump Stop Extensions

Rear Track Bar Brackets

E-Brake Bracket

4 Dirt Logic 2.25 Shocks

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
