Fabtech 3" Crawler Coilover II System w/ Dirt Logic 2.5 Resi Coilovers
Fabtech 3" Crawler Coilover II System w/ Dirt Logic 2.5 Resi Coilovers
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Front and Rear Shocks / Coil Springs / Trailing Arm Kit
- Category
- Coil Springs
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 484.6 lb
- Barcode
- 00674866101937
Billable shipping weight; may include dimensional weight.

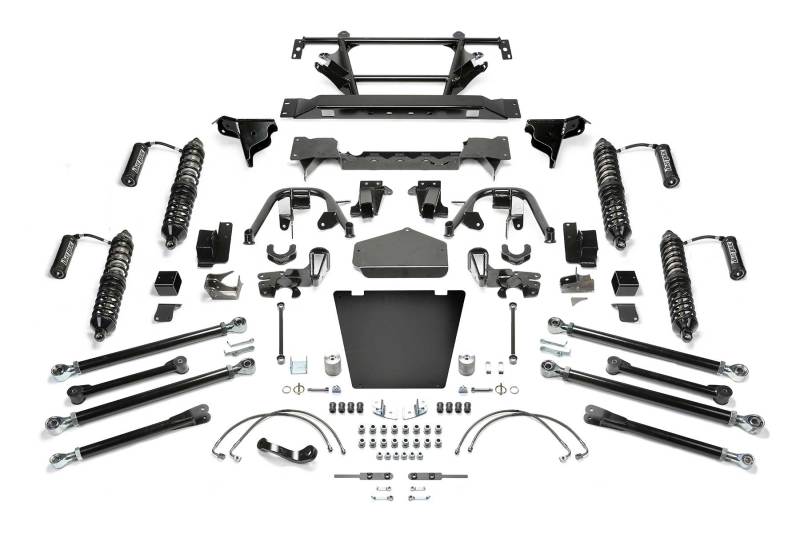

3" Crawler Coilover II System w/ Dirt Logic 2.5 Resi Coilovers
Description
As the pinnacle of Crawler systems this high clearance Long Arm suspension provides incredible articulation for aggressive rock crawling and heavy offroad use. Highway driveability is maintained thanks to the advanced link arm geometry.
Fabtech Link Arm construction features .313? thick wall tubing that is guaranteed not to bend. Heavy duty 5 Ton Joints® in the Link Arms will handle offroad abuse yet are quiet on the highway. The weld on 1/4? thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.
This top level system includes a front and rear Coilover Conversion featuring Dirt Logic 2.5 Coilovers that provide 12? of wheel and articulation travel for exceptional suspension performance.
- Front Upper & Lower Long Arm Links
- Rear Upper & Lower Long Arm Links
- Front Dirt Logic 2.5 Resi Coilovers
- Front Coilover Hoop Kit
- Rear Dirt Logic 2.5 Resi Coilovers
- Rear Coilover Sub Frame Kit
- Front Sway Bar Links
- Front & Rear Track Bar Brackets
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
Additional Information
LIFT: 3"
DRIVE: 4WD
MAKE: JEEP
SYSTEMS: CRAWLER COILOVER II SYSTEM
MODEL: JK
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks:
FRONT DIRT LOGIC 2.5 RESI COILOVER
The Dirt Logic 2.5 Resi Coilover provides outstanding high speed damping with the ability to crawl at low speed with maximum articulation for big rocks.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold wound dual rate coil springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | Jeep | Wrangler | 70th Anniversary, Unlimited 70th Anniversary |
| 2010 | Jeep | Wrangler | Islander |
| 2010 - 2017 | Jeep | Wrangler | Sport, Unlimited Sport |
| 2012 | Jeep | Wrangler | Unlimited |
| 2016 | Jeep | Wrangler | Unlimited 75th Anniversary, Unlimited Sport S, 75th Anniversary, Sport S, Unlimited Black Bear |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2007 - 2017 | Jeep | Wrangler | Unlimited Sahara, Sahara, Rubicon, Unlimited Rubicon |
| 2017 | Jeep | Wrangler | Unlimited Smoky Mountain, Unlimited Winter Edition |
| 2007 - 2011 | Jeep | Wrangler | Unlimited X, X |
| 2014 | Jeep | Wrangler | Willys Wheeler, Unlimited Willys Wheeler |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Sport, Unlimited Sport S, Unlimited Sahara, Unlimited Sport, Unlimited Rubicon, Sport S, Rubicon, Sahara |
