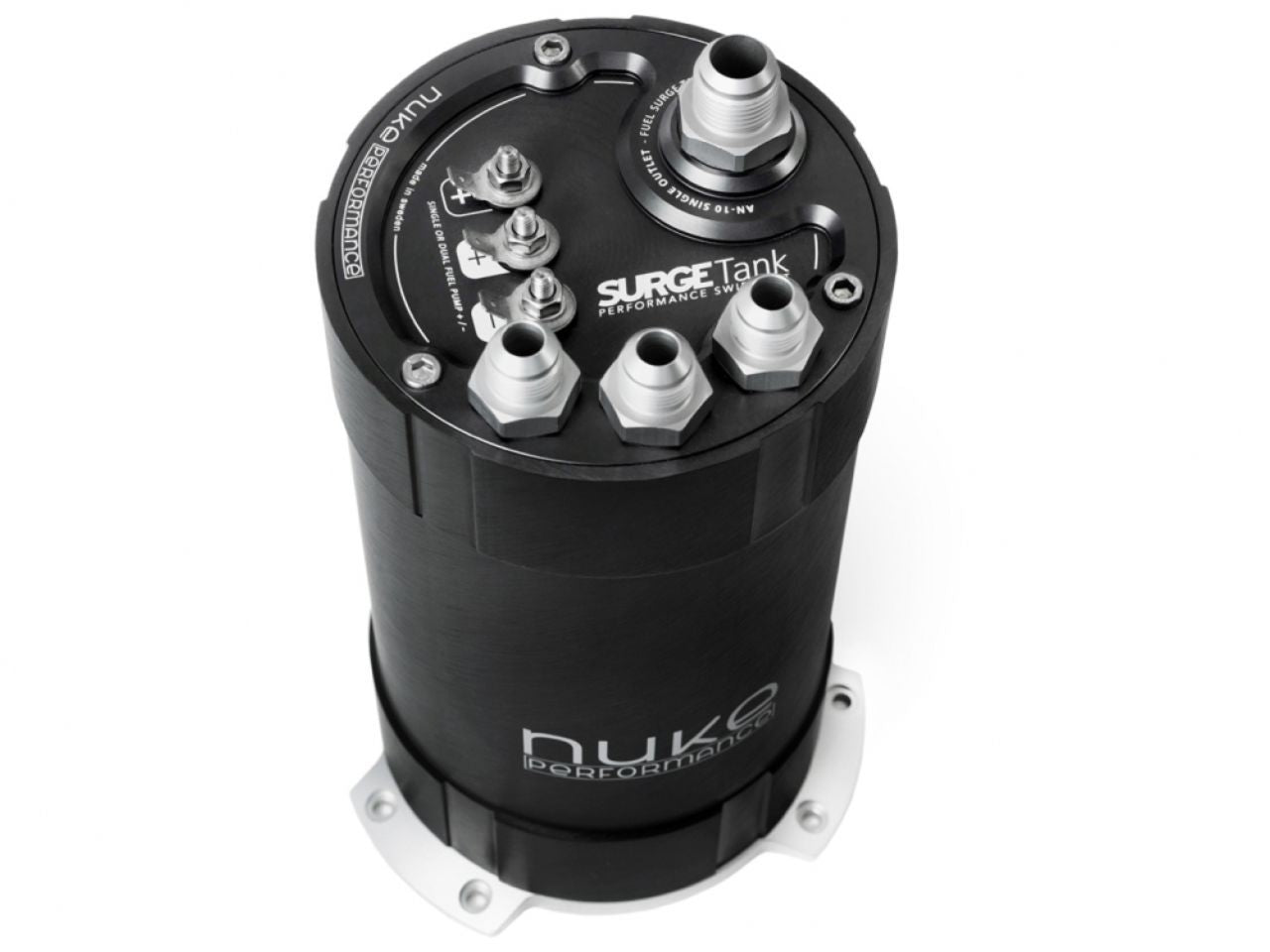

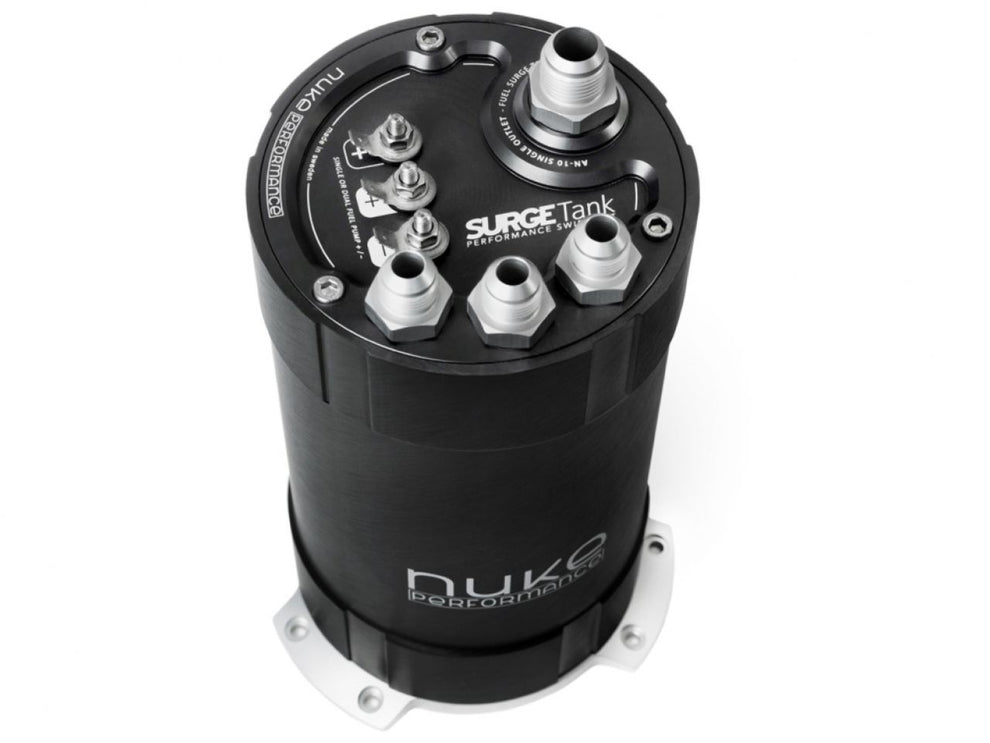

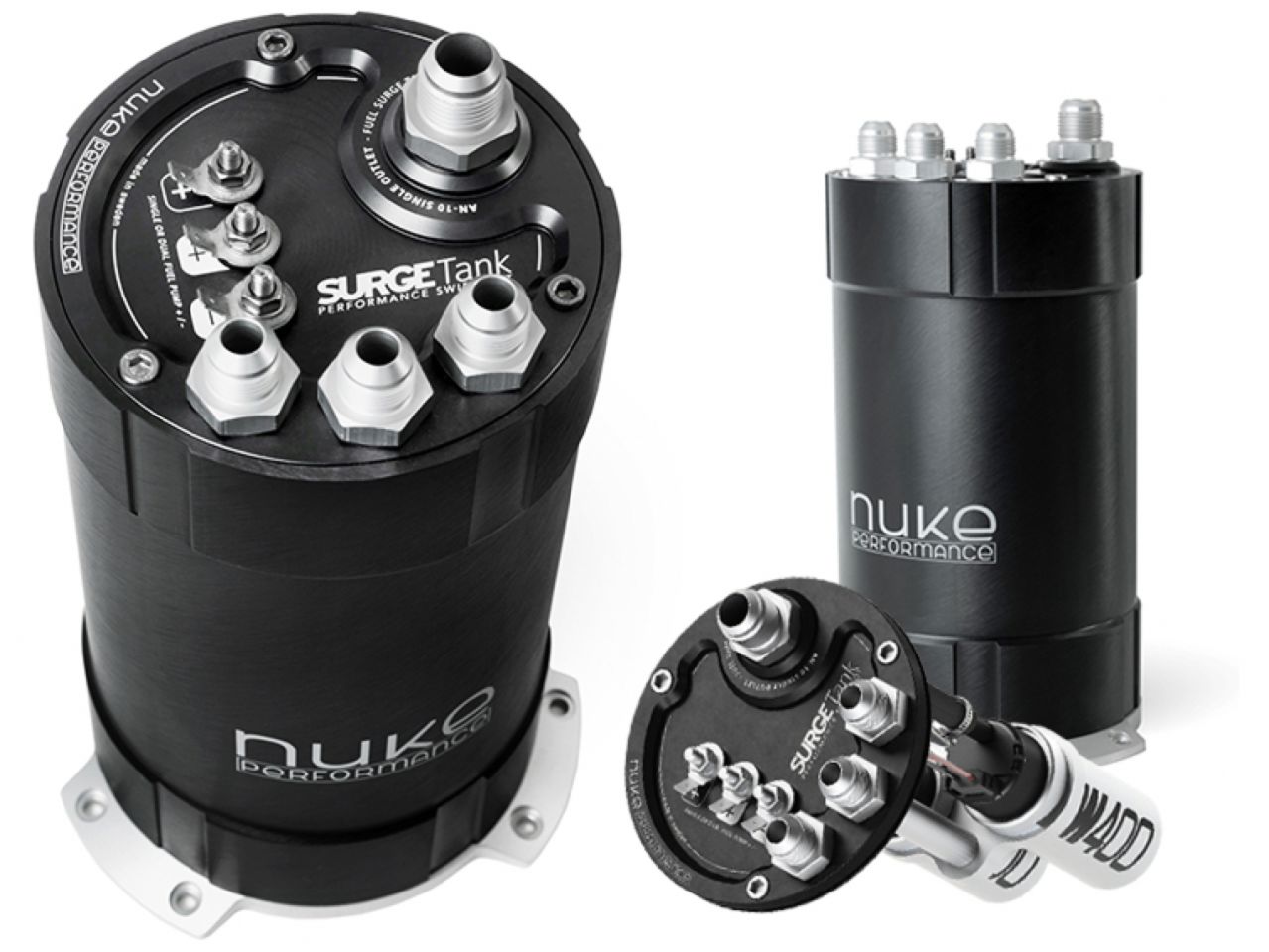

Nuke Performance 2G Fuel Surge Tank 3.0 Liter Single or Dual Deatschwerks DW400

2G Fuel Surge Tank 3.0 liter for single or dual DW400

2nd generation Nuke Performance 3.0 liter Fuel Surge Tank is market leading with top quality combined with outstanding performance.

This new version is the first of its kind specially developed and designed to mount a single or dual setup of Deatschwerks ground-breaking DW400 fuel pump. Combine the two internal fuel pumps into one 7/8 AN-10 outlet. This Fuel Surge Tank is able to deliver steady fuel flow even over 1600hp. This Fuel Surge Tank is approved by Deatschwerks. Run one or two fuel pumps individual with multi electrical connectors on the top lid. Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products. Everything is included for running single or dual fuel pumps.Fuel pumps are mounted with the billet internal mounting bracket. Optional internal bracket for 39mm fuel pumps is optional, with this optional bracket you can run single or dual setup of any 39mm fuel pump such as DW300 and Walbro GST 450. With our Fuel Surge Tank, you minimize the risk when running at low fuel level, that the system not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss. The Fuel Surge Tank works as a buffer so the fuel pumps are always supplied with fuel for high outputs. Our Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum, either with internal fuel pumps or external fuel pumps. Comes with a billet mounting bracket with our six bolt pattern making it sit stable in any installation.Delivered with billet aluminum mounting bracket for easy mounting And 3 x 3/4 AN-8 fittings and 1 x 7/8 AN-10 for the top cover connections. 3/4 AN6 - AN10. and 7/8 AN-12 is optional and are sold separately. Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.

Specifications

• CNC manufactured from aluminium alloy 6063.
• Stainless steel bolts for long lasting function and appearance.
• Holds a volume of approximately 3 liters.
• Delivered with 3 x 3/4 AN-8 and 1 x 7/8 AN-10 fittings.
• 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line.
• 7/8 UNF Port, available to AN-10, AN-12 line.
• Billet aluminium mounting bracket with 6x mounting holes.
• Laserengraved.
• Height: 255 mm
• Diameter: 148 mm
• Weight: 2880 g
