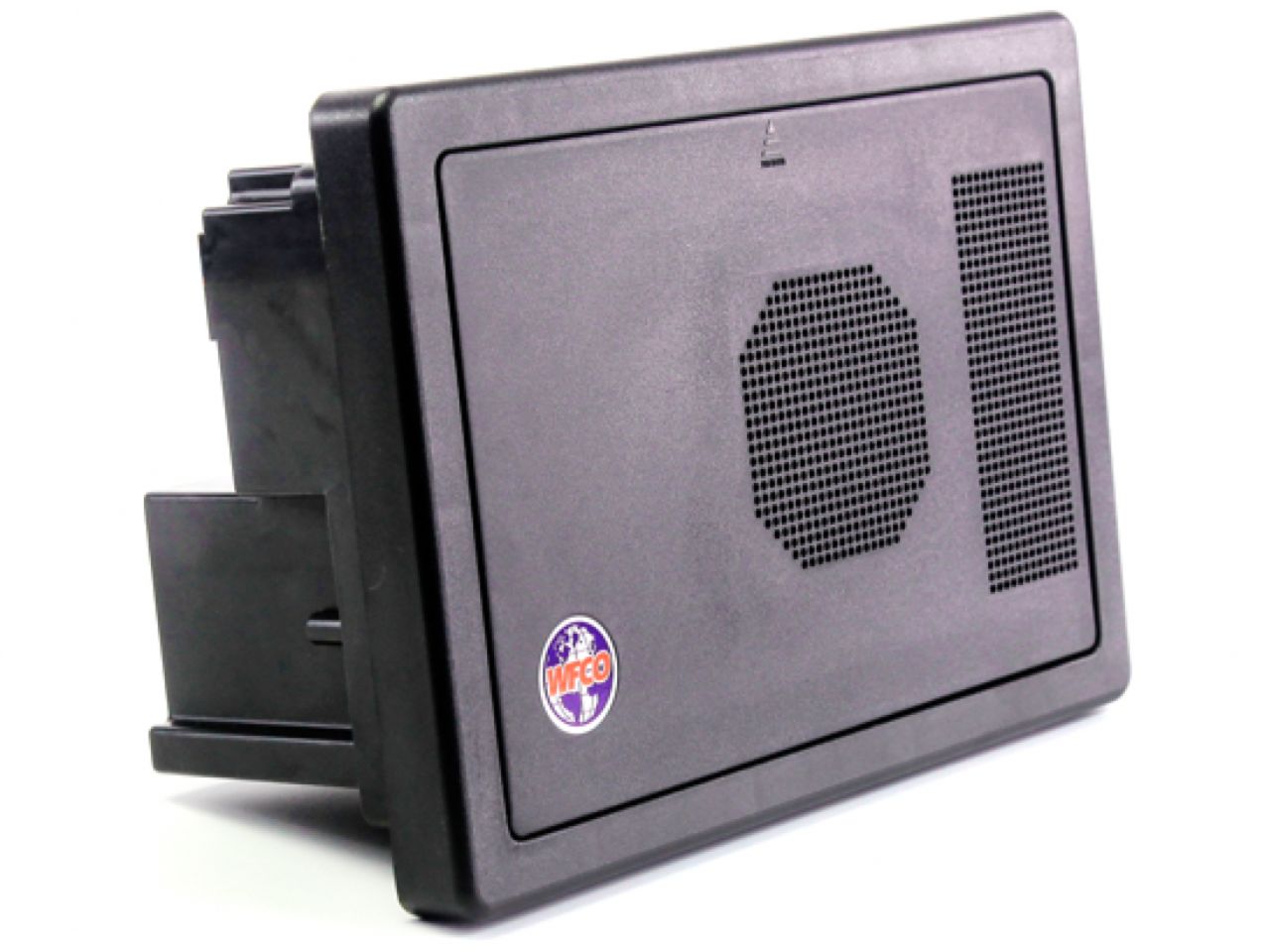

Arterra Dist 25 Amp Power Center, Black

WF-8725 model converters provide 25 Amp DC output and a highly reliable nominal 13.6 VDC with or without a battery. No extra filtering is required.

WFCO's three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 VDC range "float" mode, 13.6 VDC range "absorption" charge mode, and a 14.4 VDC range "bulk" charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the 8725 operates only when needed and ensures quiet operation.

Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30 Amp main AC breaker and a total of up to three 20 Amp branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.

SPECIFICATION

Case Color
Black

Output Power
430 W

Input Voltage/Hz
105-130 VAC, 60 Hz

Dimensions
10 7/16? x 6 1/8? x 3 3/4?

Weight
4.75 lbs.

Output Current
25 A

Converter Type
Three-Stage Converter Charger

Voltage Output
13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)

AC Circuits (twin breakers)
4 (Main and 3 branch circuits)

DC Circuits (Quantity)
4 (one battery circuit)

Case Material
Plastic

Over Current
Yes

Over Temperature
Yes

Over Voltage
Yes

Reverse Polarity
Yes

Cooling System
Yes

Certifications
FCC
