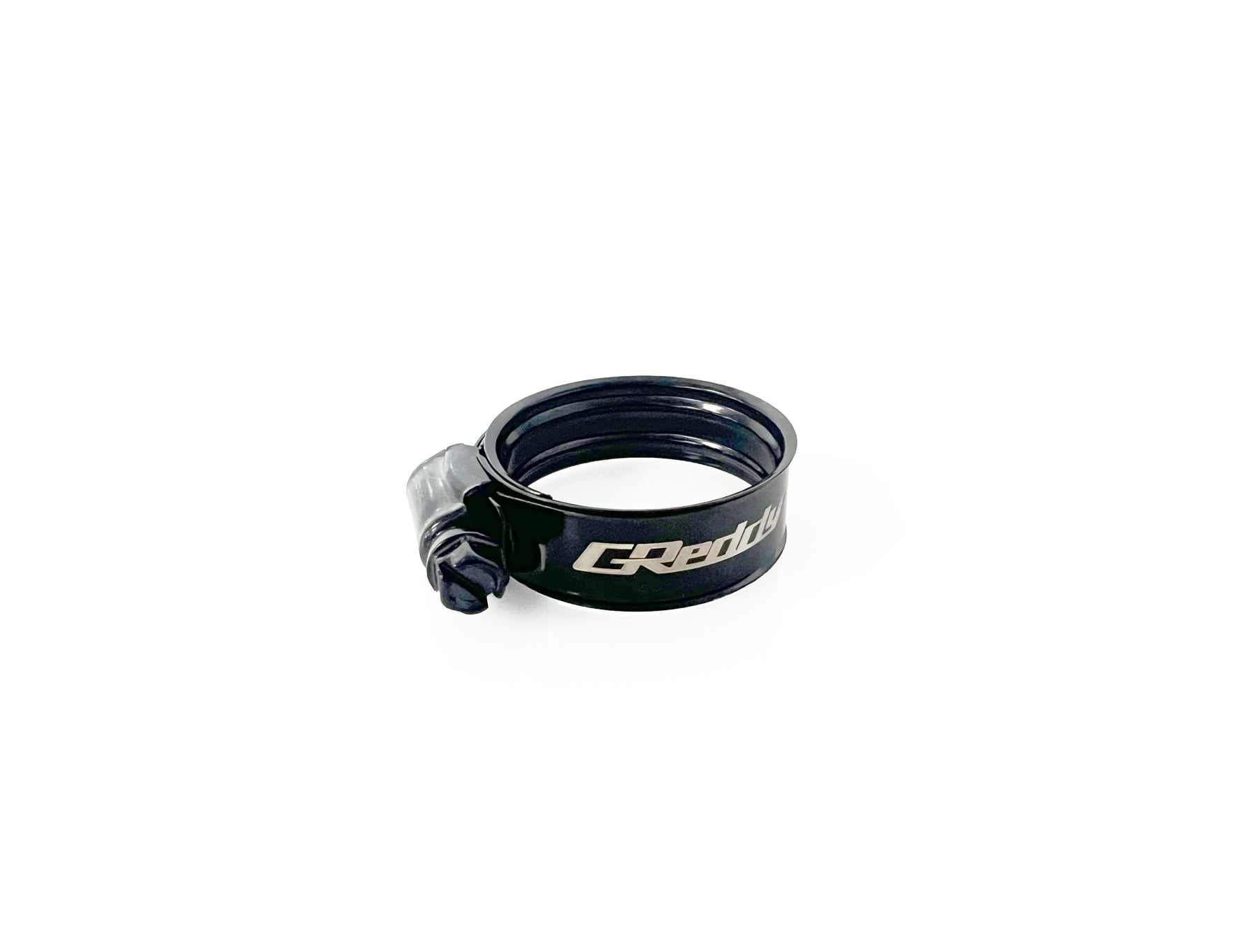

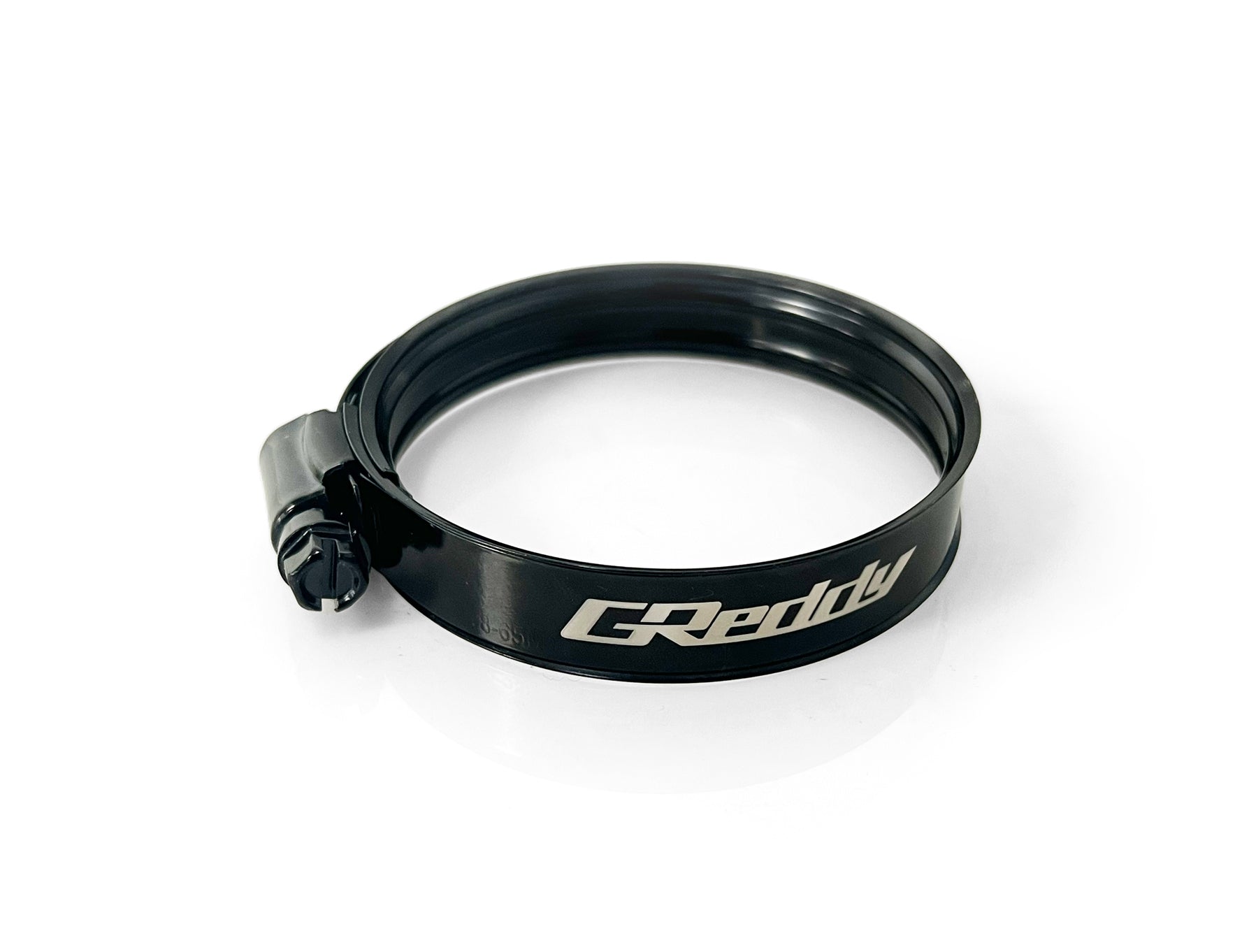

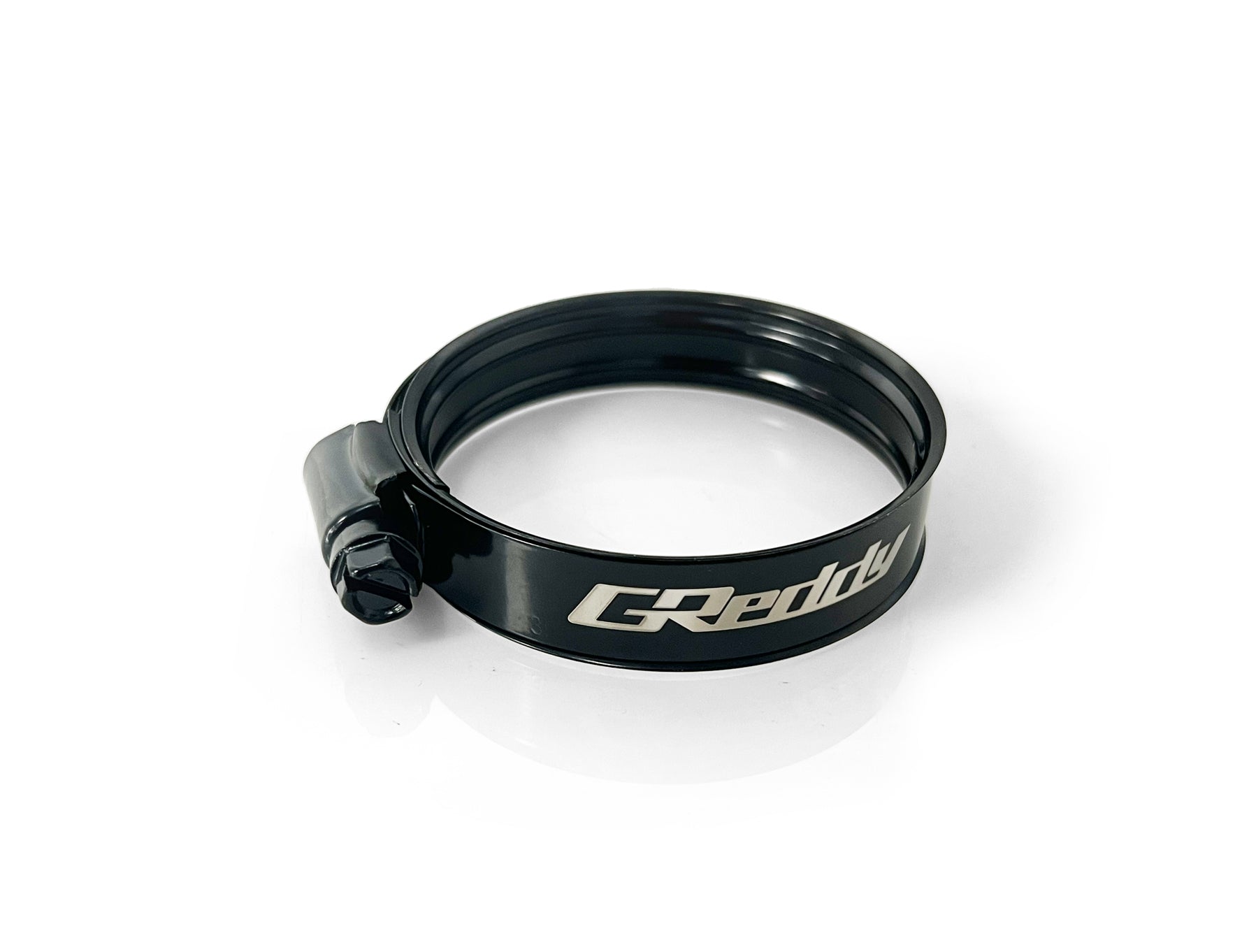

GReddy Dual-Bead Boost Clamp(s) - Black  22400056 = 39-56mm / No. 28 - Black (1pc.)

GReddy Dual-Bead Boost Clamp(s) - Black

Regular price $4.51
Regular price Sale price $4.51
Sale Sold out

Shipping calculated at checkout.

Clamp Size

36 in stock

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Hose Clamp
Category
Motor Vehicle Engine Parts
Item condition
New
Shipping weight
0.2 lb

Billable shipping weight; may include dimensional weight.

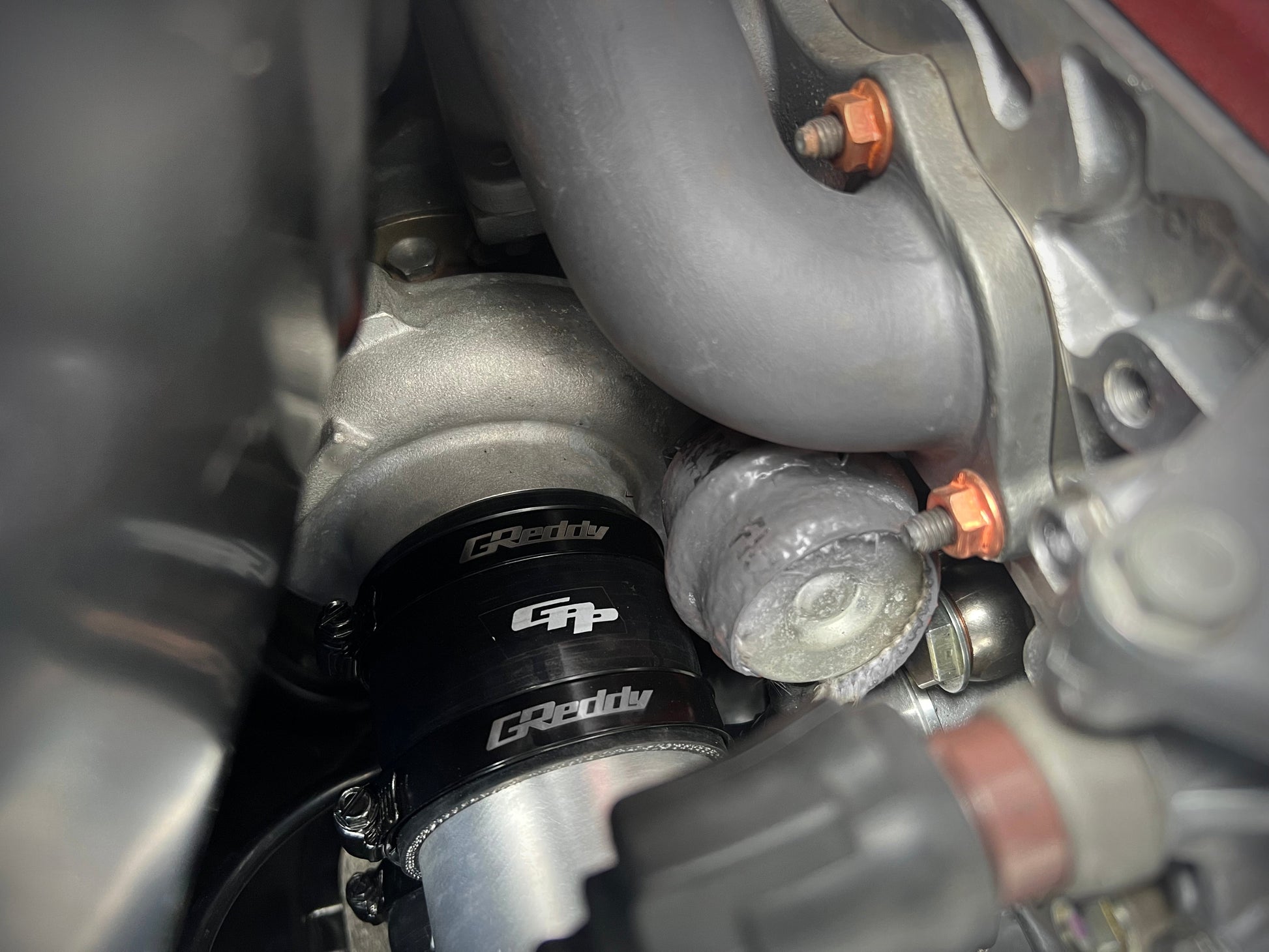

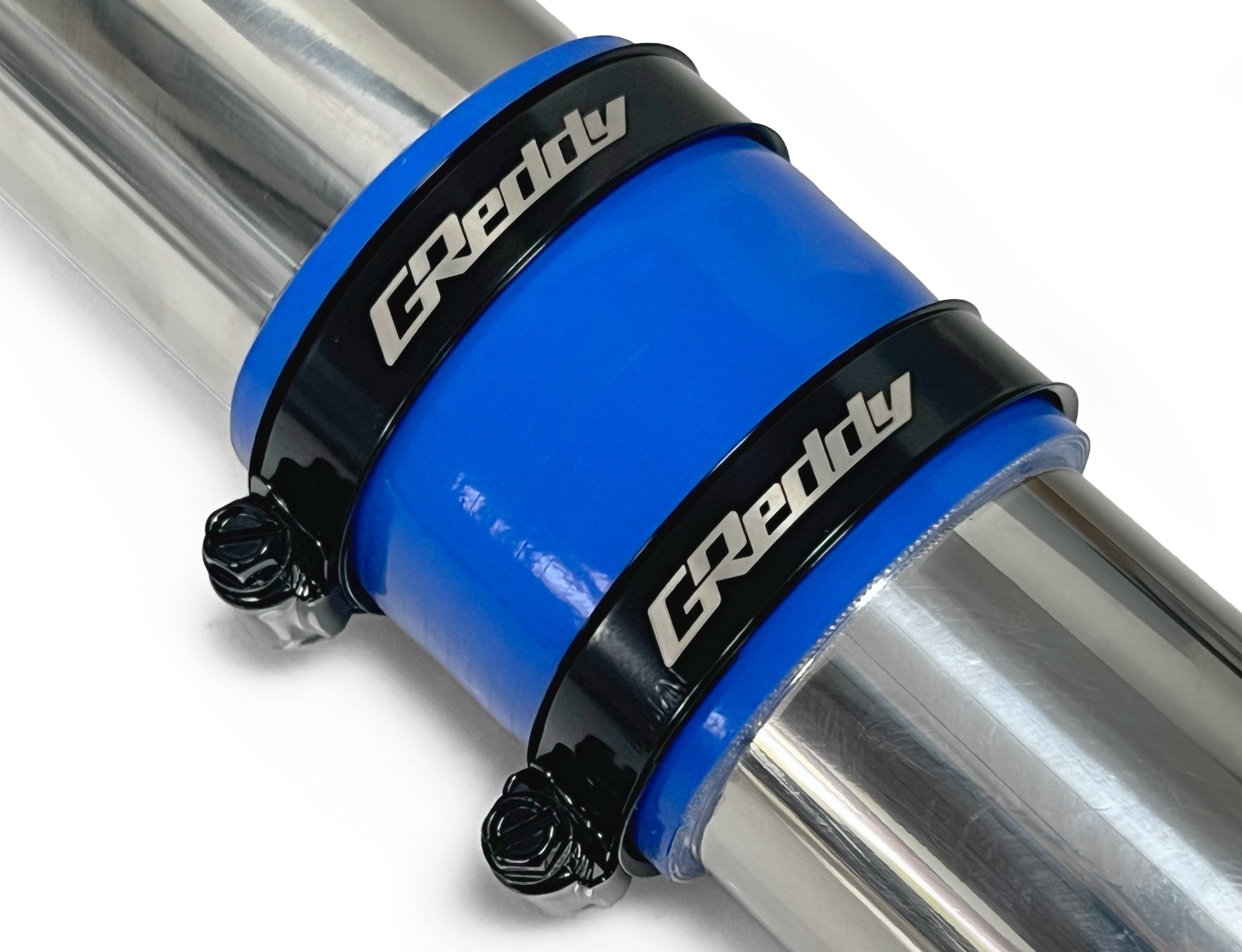

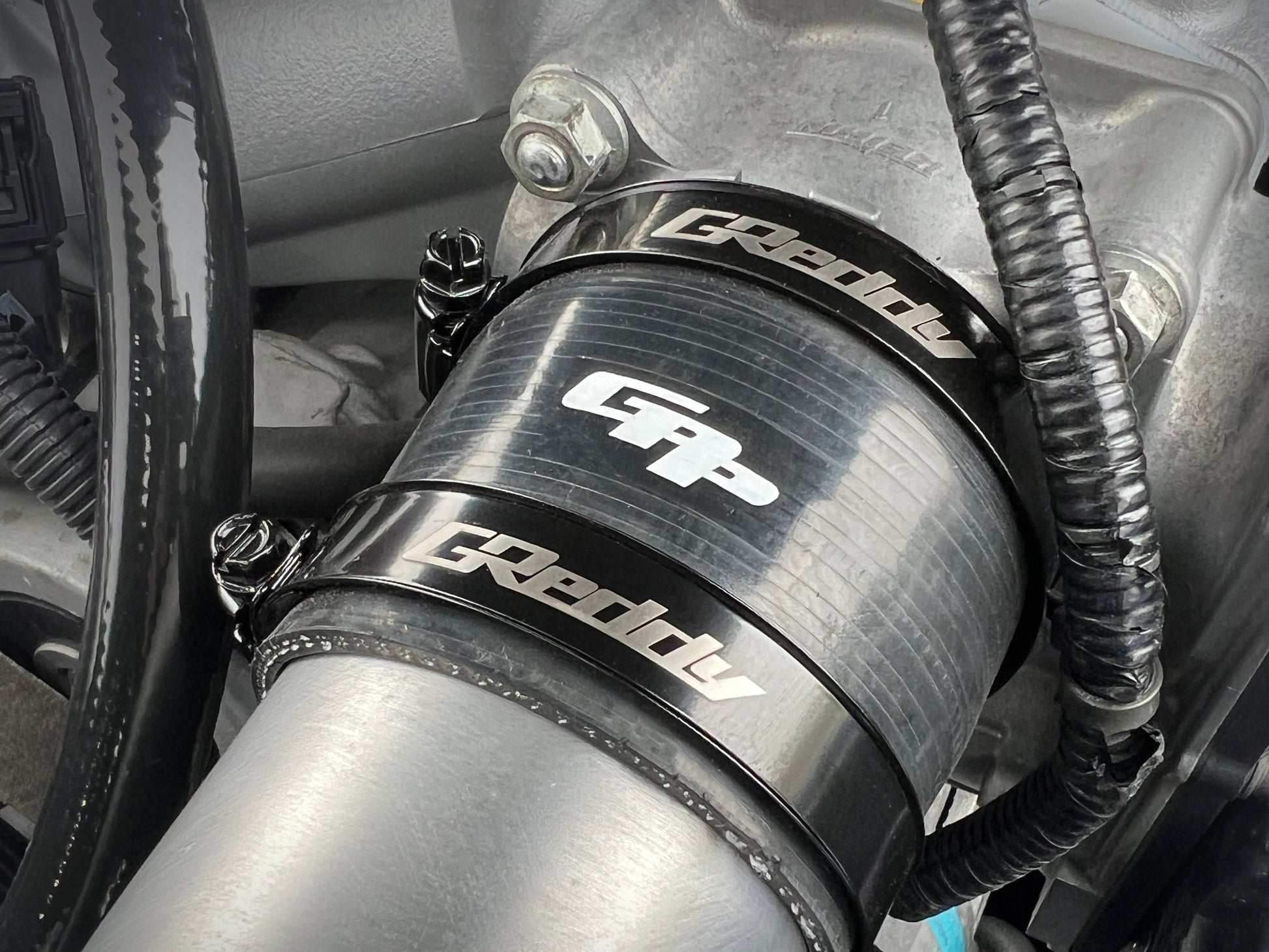

The GReddy Dual-Bead Boost Clamp(s) in black are suitable for use in both air-to-air and coolant applications. The inner shield offers excellent sealing capabilities and is gentle on all soft hoses. Its unique design ensures a secure fit without causing any damage to hose or tubing.

* also see GReddy raw Stainless Dual Bead Hose Clamps

* For easy GReddy hose clamp replacements, see the GReddy instruction manual(s) and reference the parts list, with the description of the hose clamp size i.e. No. 28 (see below)

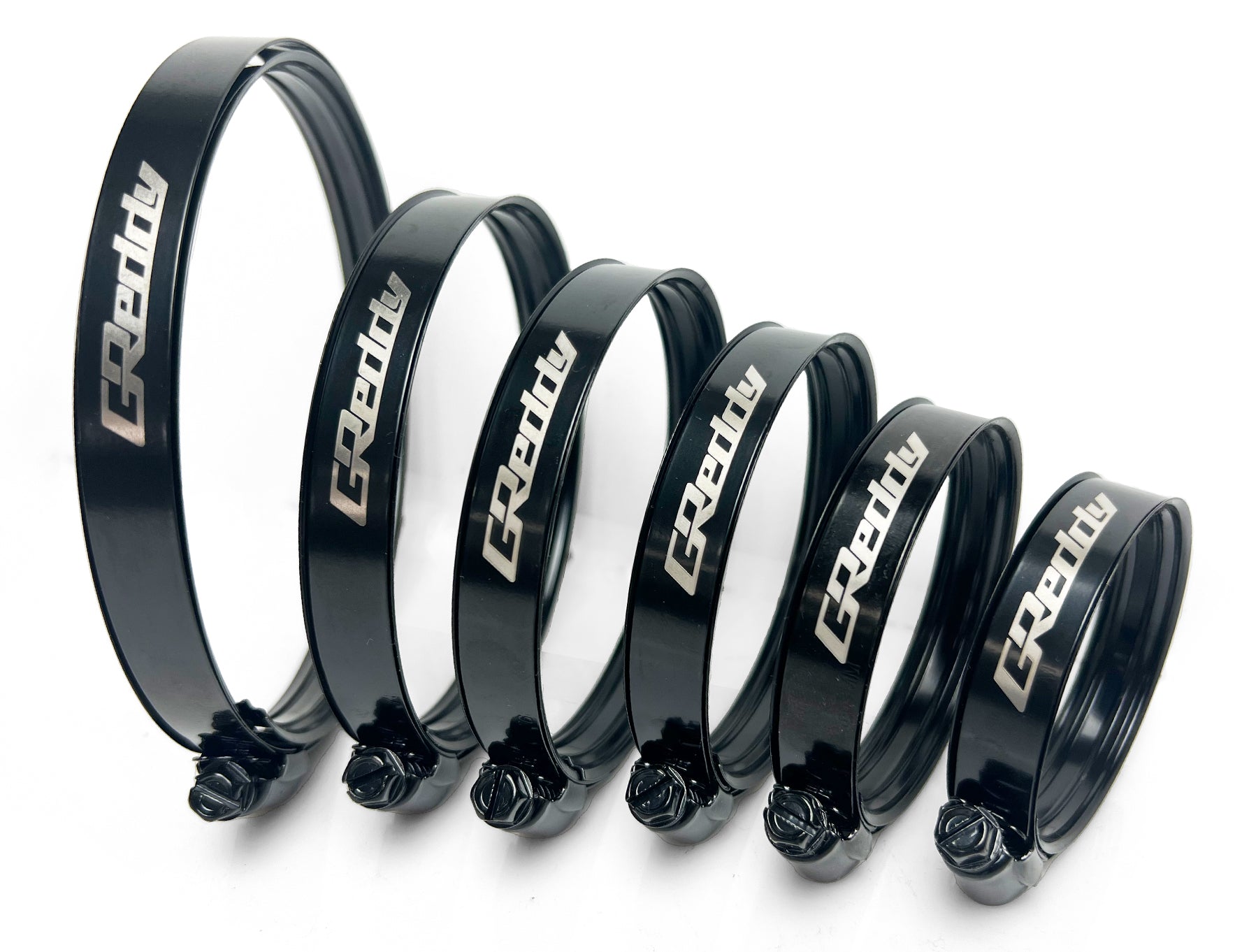

Black DB Clamp P/N SUS DB Clamp P/N Adjustment Range Dia. Std. Dia. Hoses Metric Dia. Hoses Clamp Type Clamp Name
22400039 22410039S 26-39mm 1.0"-1.5" 32mm No. 16 DB-1

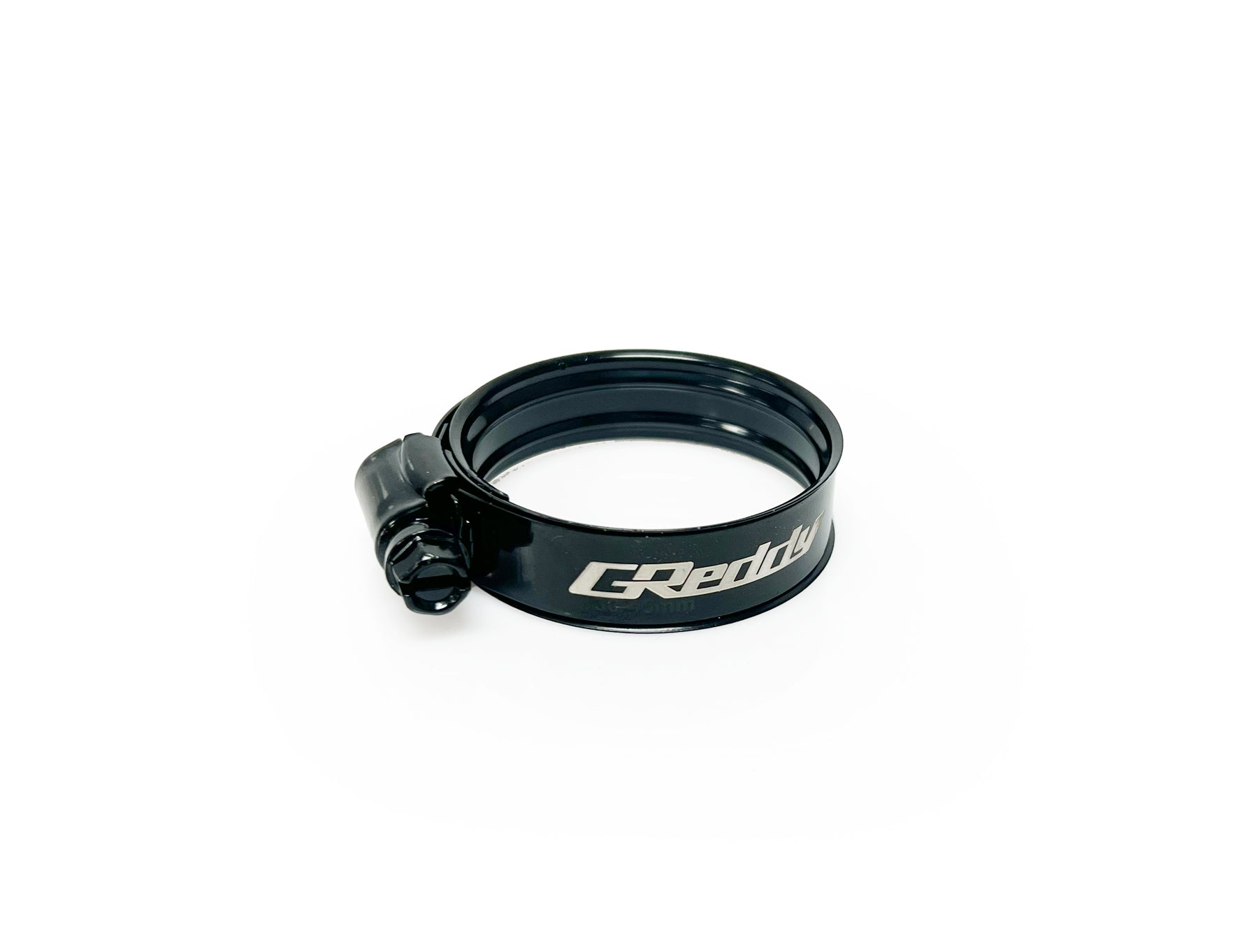

22400045 22410045S 30-45mm 1.25"-1.75" 32-34mm No. 24 DB-2
22400056 22410056S 40-56mm 1.75"-2.0" 34-42-45-50mm No. 28 DB-3
22400065 22410065S 48-65mm 2.0"-2.25"-2.5" 45-50-54-60mm No. 36 DB-4

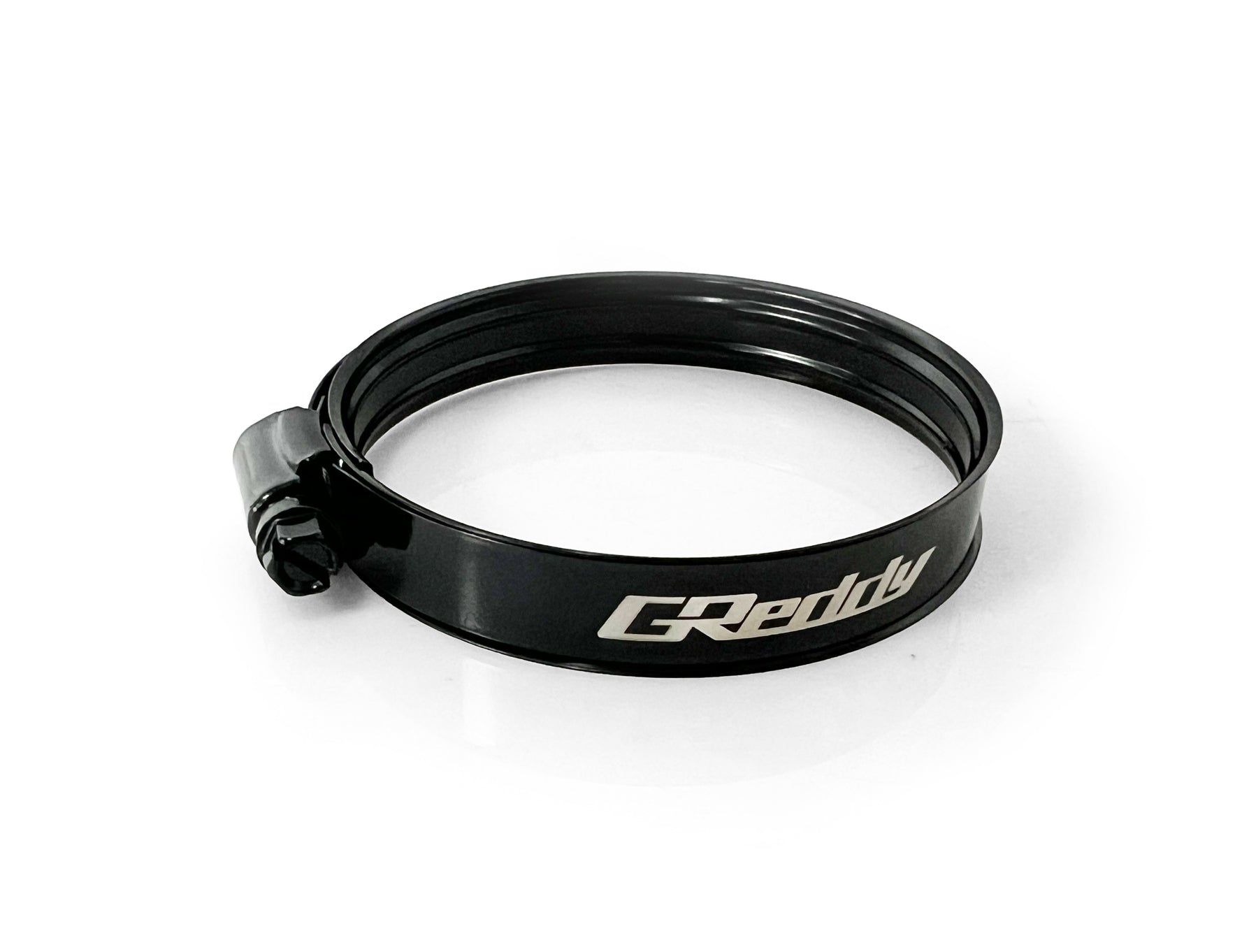

22400075 22410075S 58-75mm 2.5"-2.75" 54-60mm No. 40 DB-5

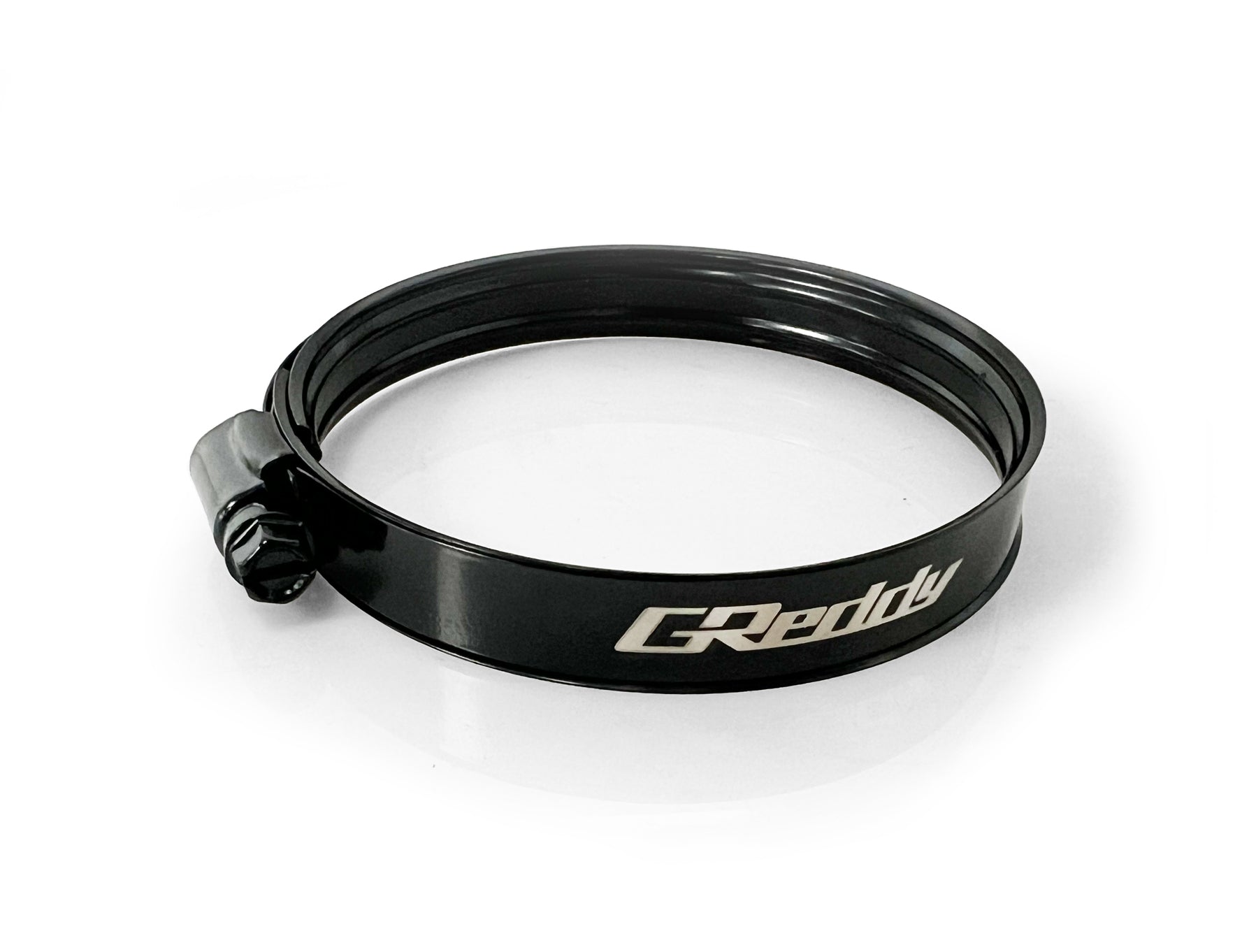

22400085 22410085S 68-85mm 2.75"-3.0" 60-65-70-78-80mm No. 44 / 48 DB-6

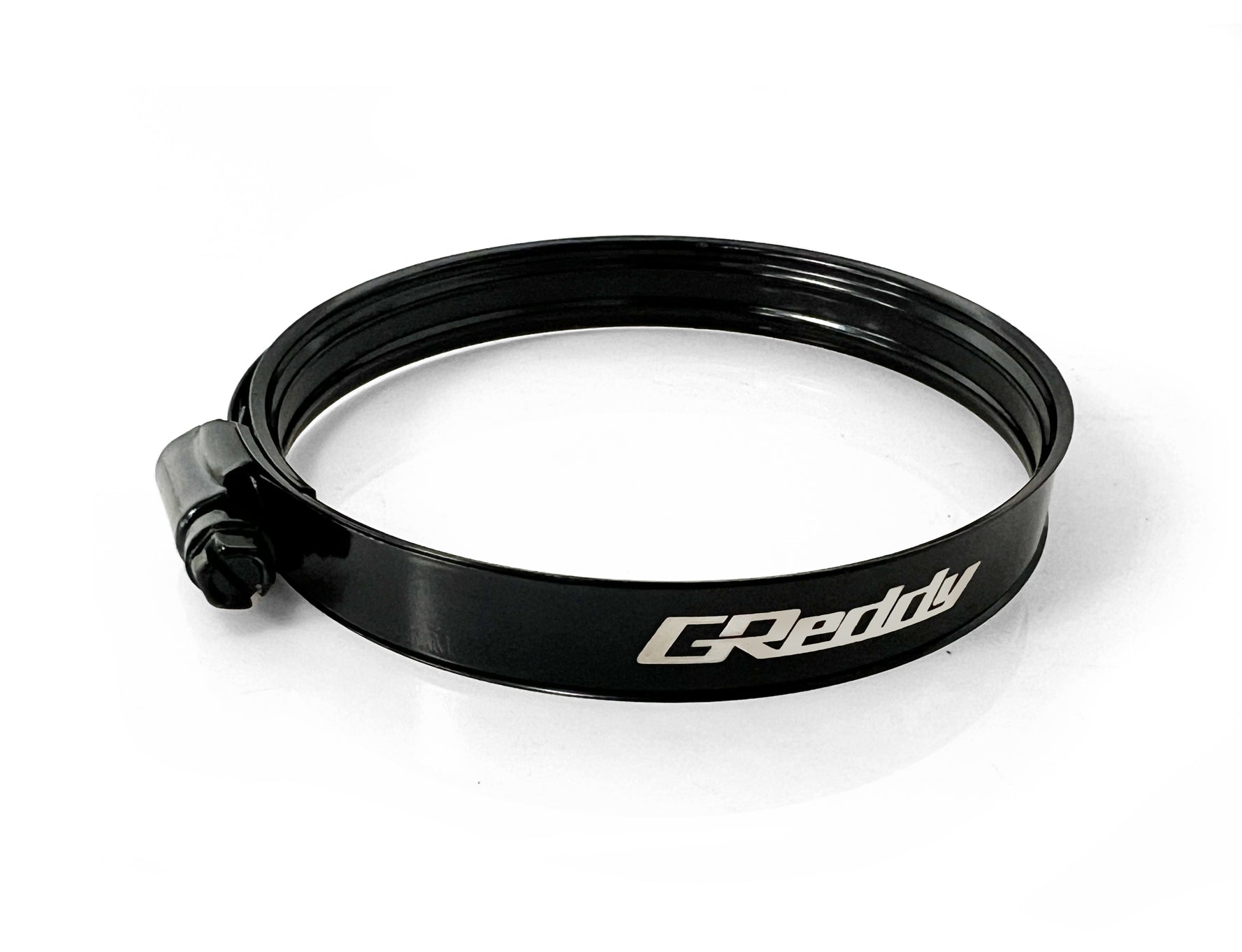

22400095 22410095S 78-95mm 3.0'-3.5" 80-90mm No. 56 DB-7

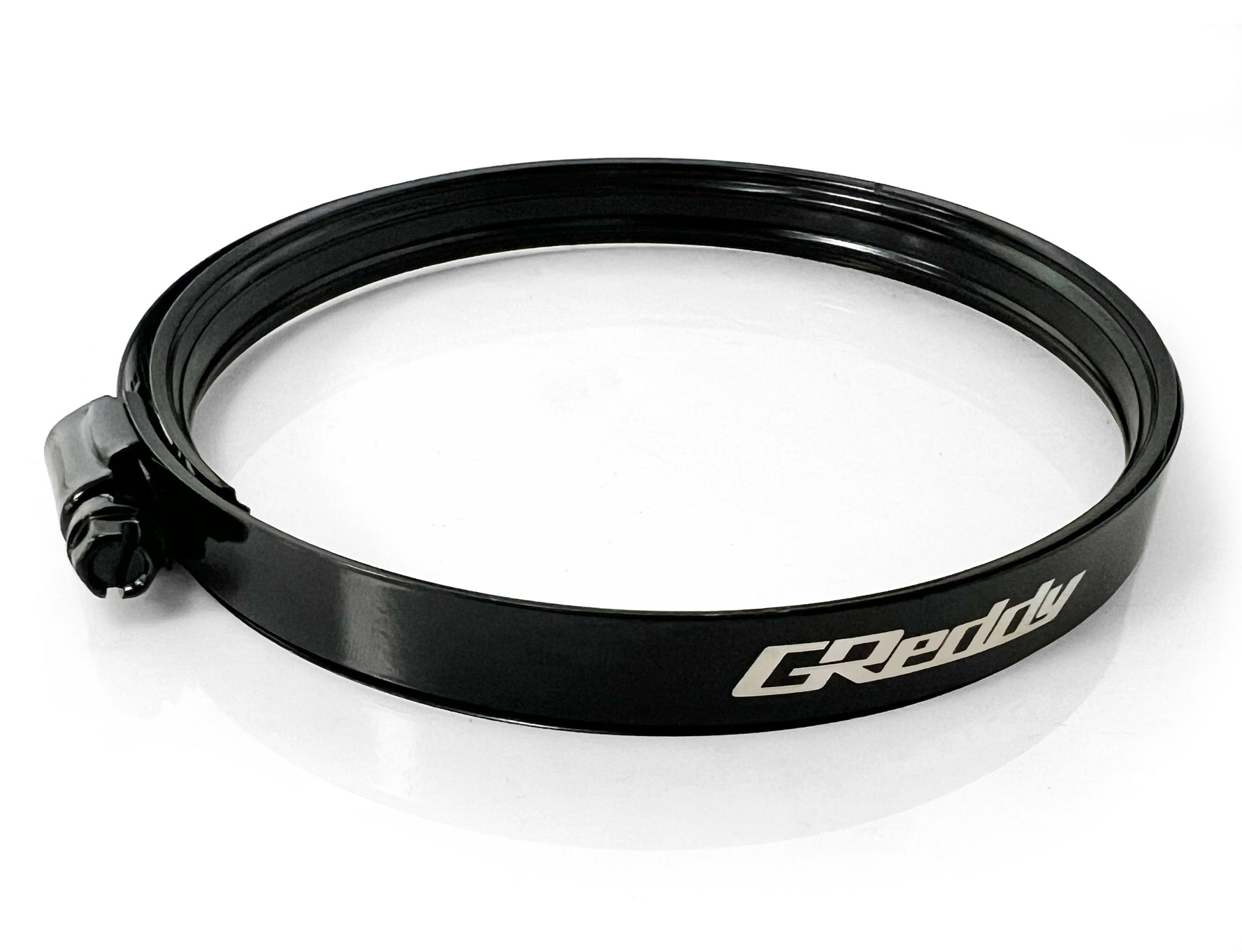

22400120 22410120S 100-120mm 4"-4.5" 100mm No. 72 DB-8



  • Special Black coated Stainless-steel hose clamps
  • The design helps in prevent of turbo hoses from blow off.

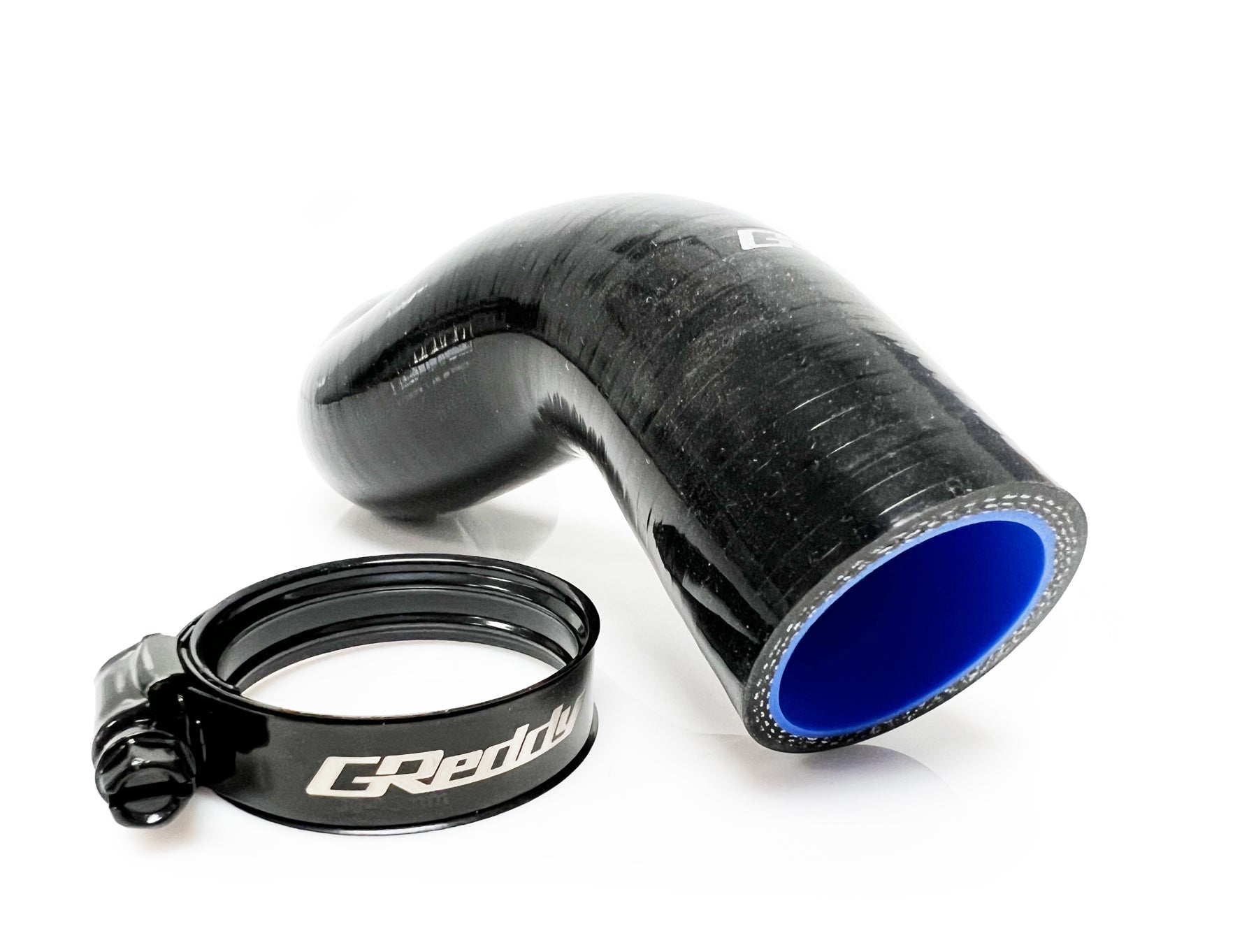

  • Flanged edges protect soft hoses, such as silicone or rubber, from damages.
  • Ideal upgrade for improved looks with the black coating and GReddy laser engraved logo on each clamp.
  • 8mm Hex / Flathead adjustment head

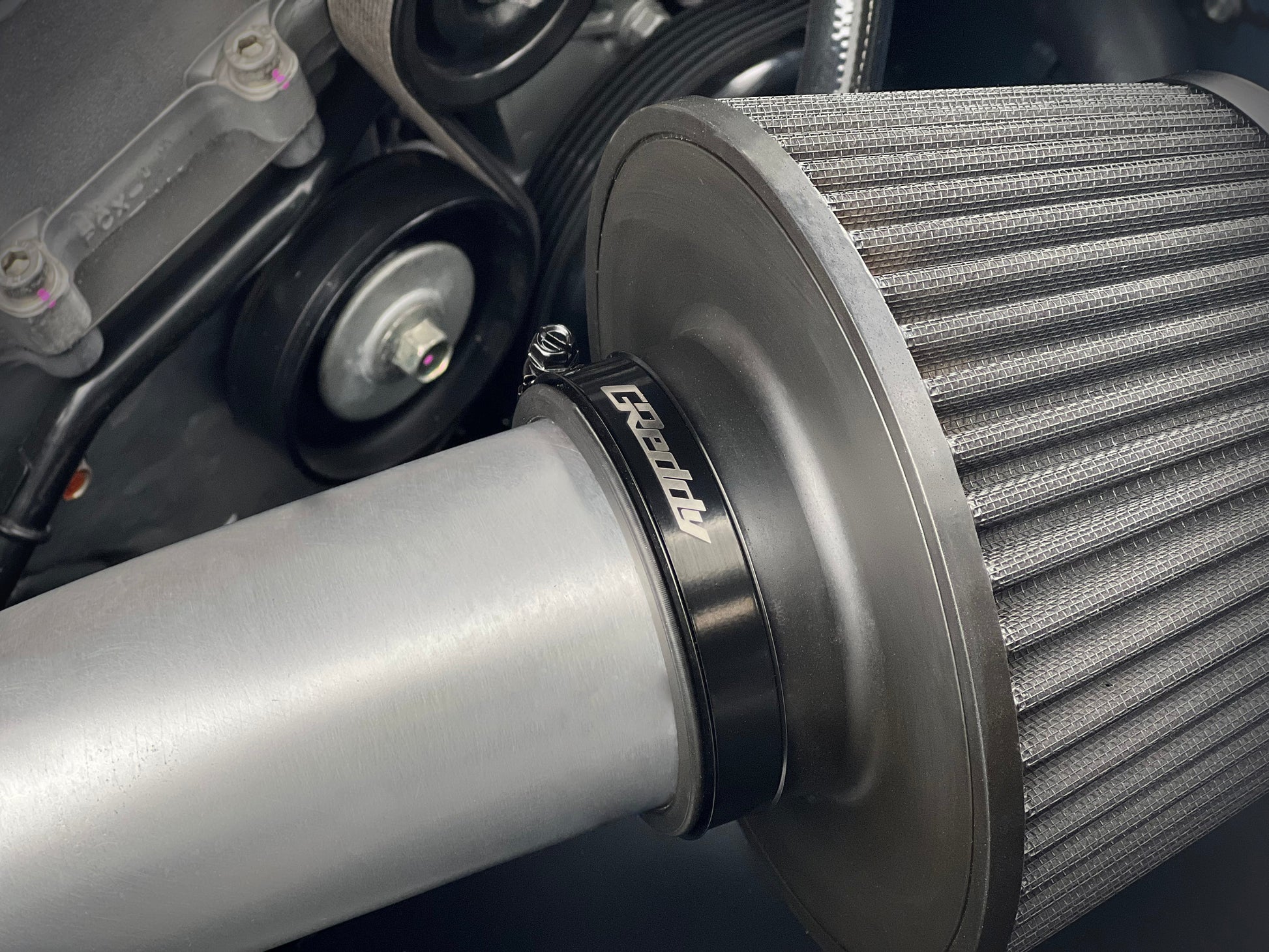

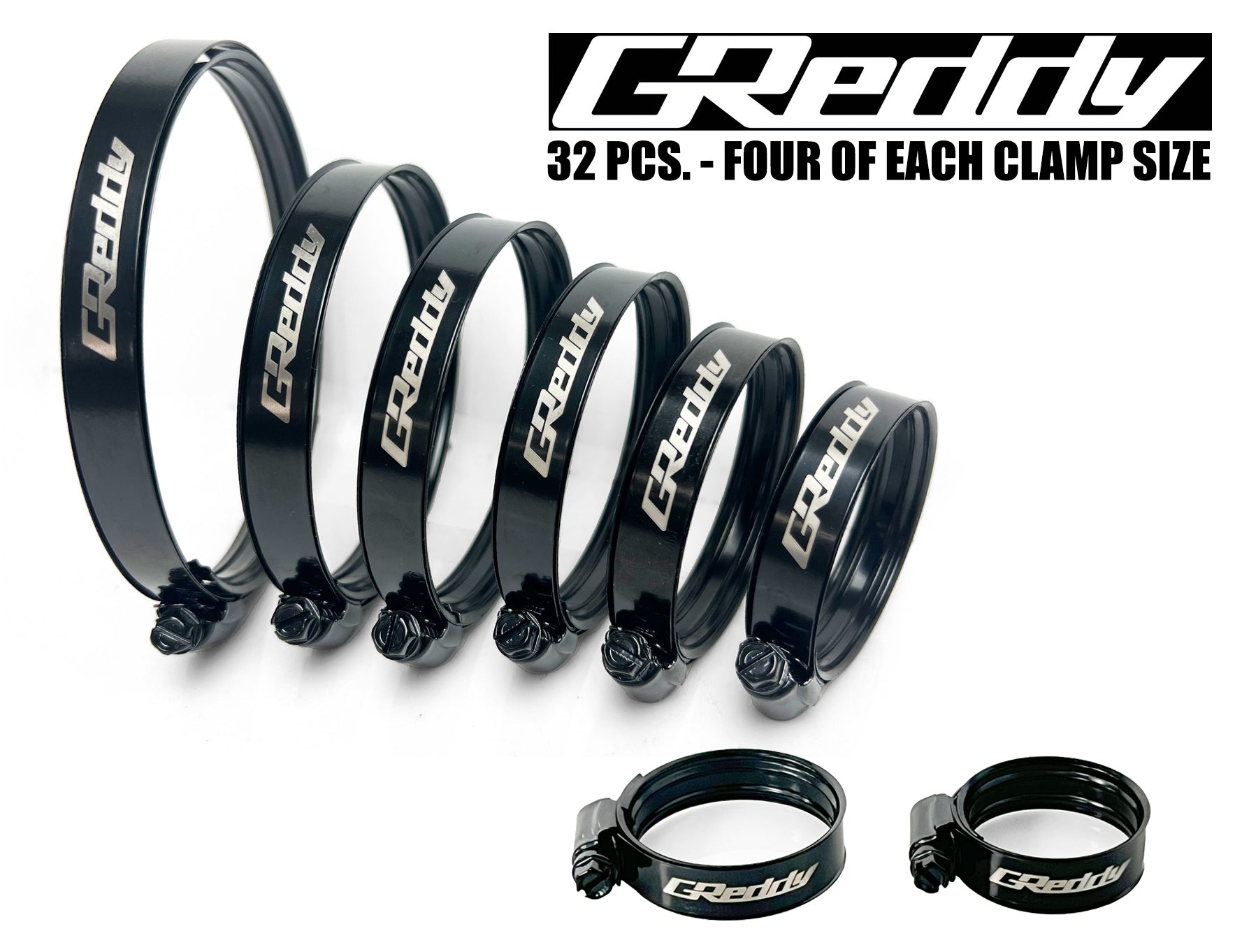

  • 6 adjustable sizes to fit most air intake and boost applications. (DB-3 to DB-8)

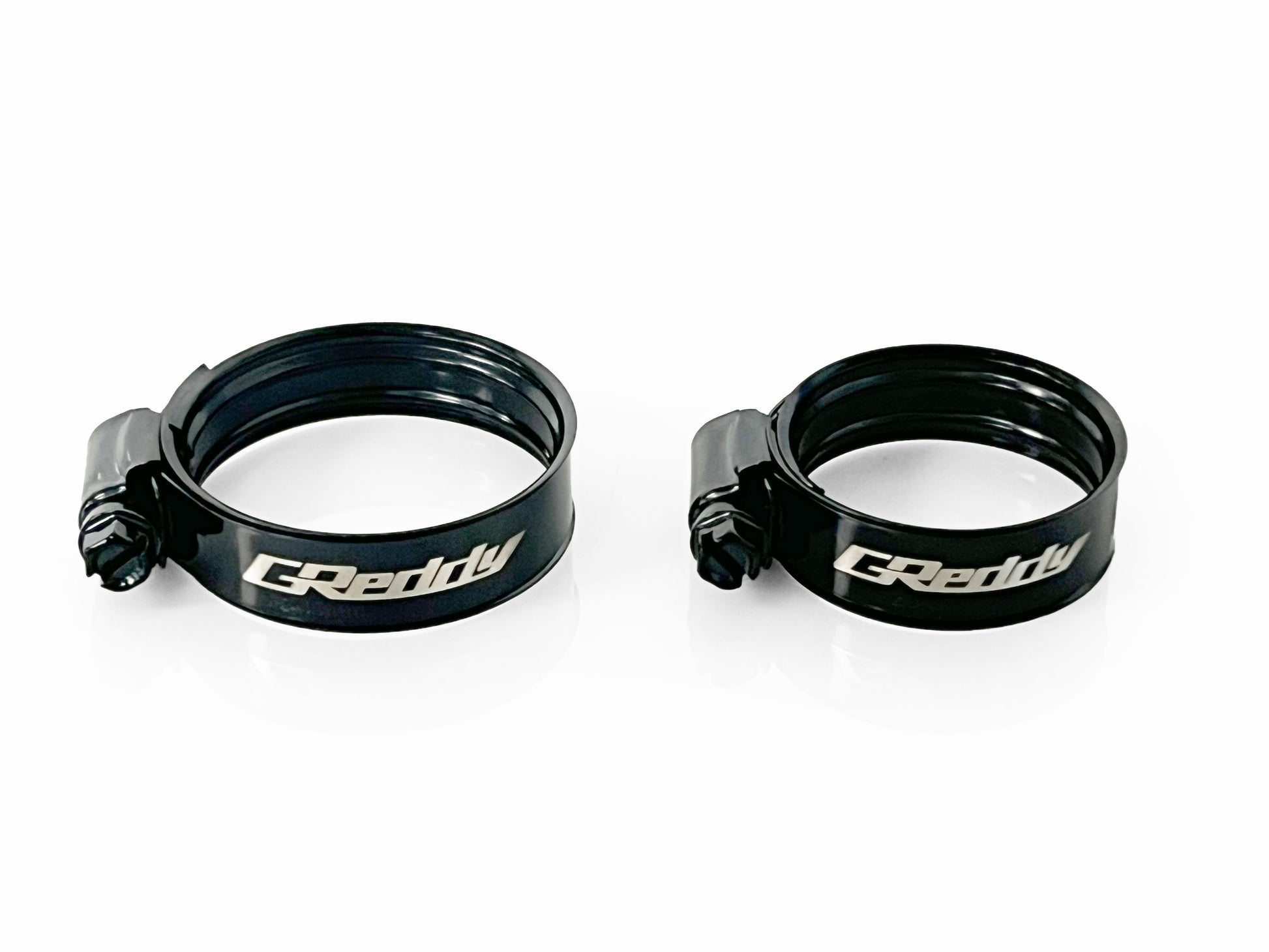

  • And 2 applications for Blow off valve discharge or Radiator Hoses (DB-1 to DB-2)
