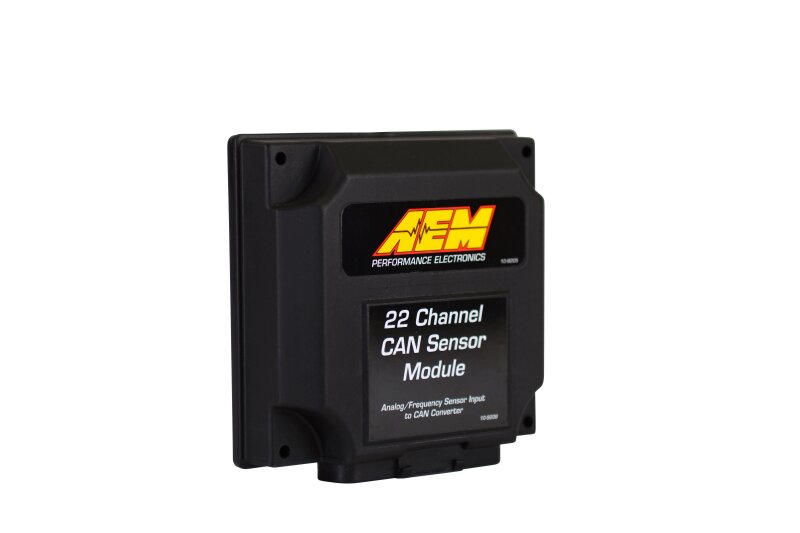

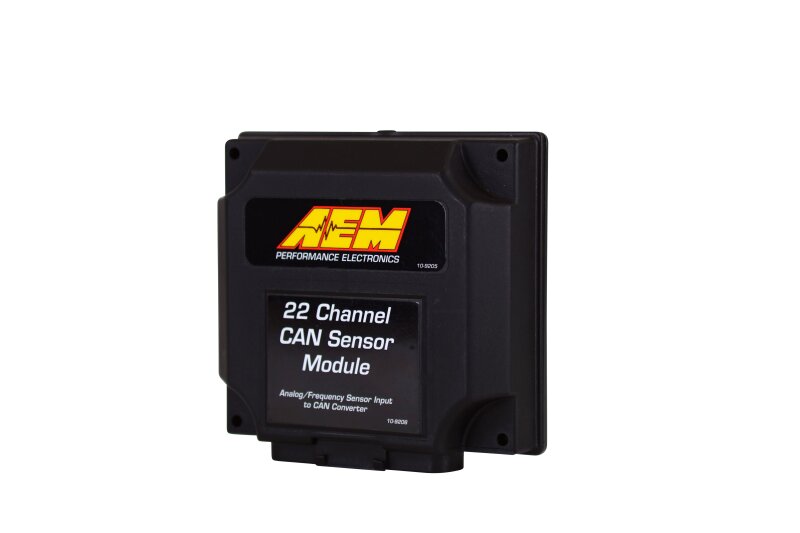

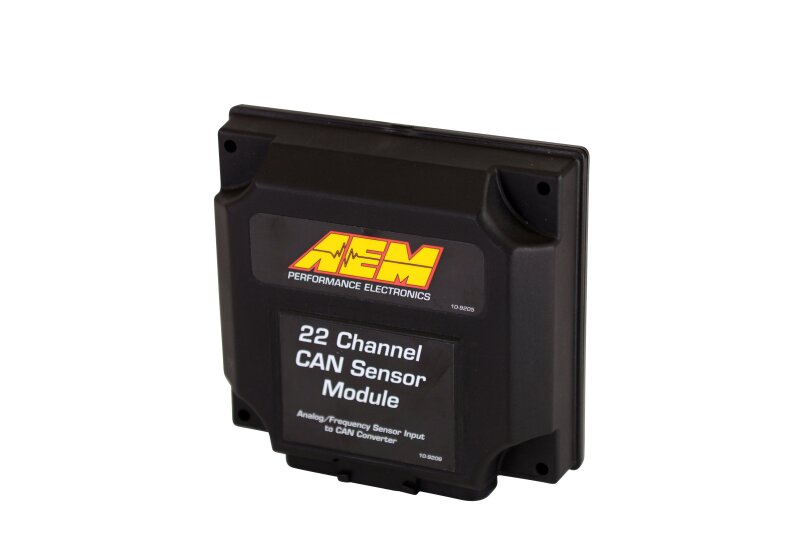

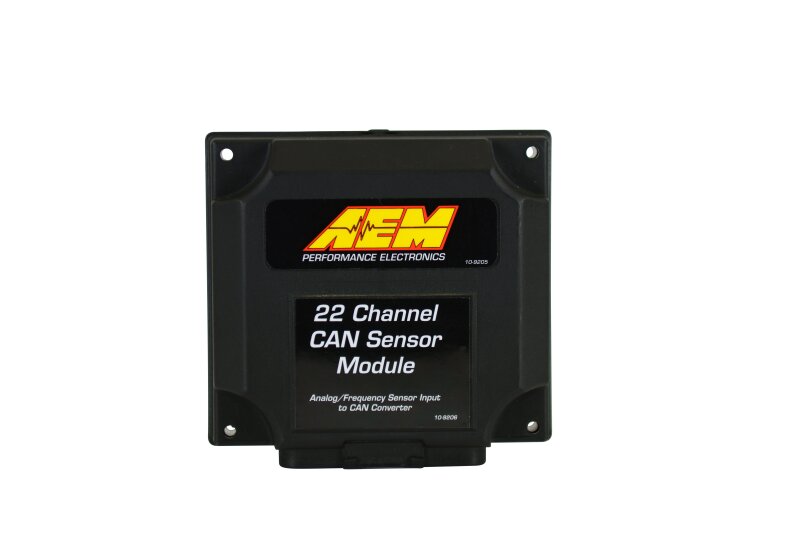

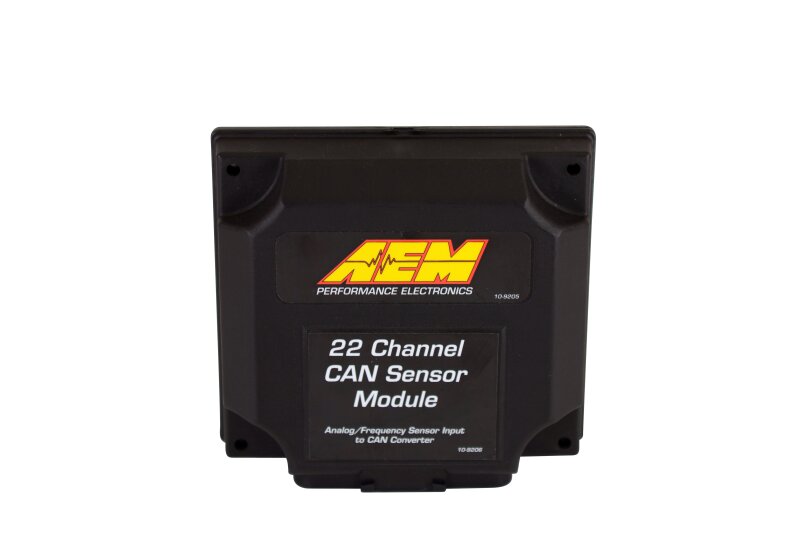

AEM Electronics 22 Channel CAN Sensor Module

AEM Electronics 22 Channel CAN Sensor Module

Regular price $449.95
Regular price Sale price $449.95
Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Data Acquisition Module
Category
Motor Vehicle Frame & Body Parts
Item condition
New
Shipping weight
1.5 lb
Barcode
840879025908

Billable shipping weight; may include dimensional weight.

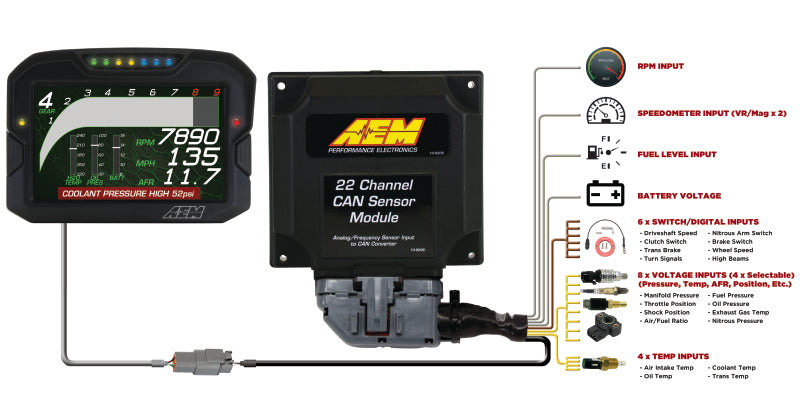

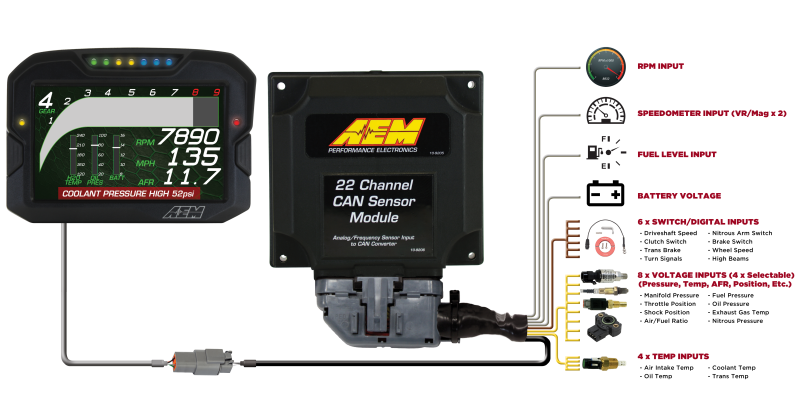

  • Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
  • Perfect for users with carbureted vehicles who want to add a CD Dash display
  • Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
  • Daisy chain two Modules together for additional channels
  • IP65-rated enclosure is 'dust tight' and water resistant

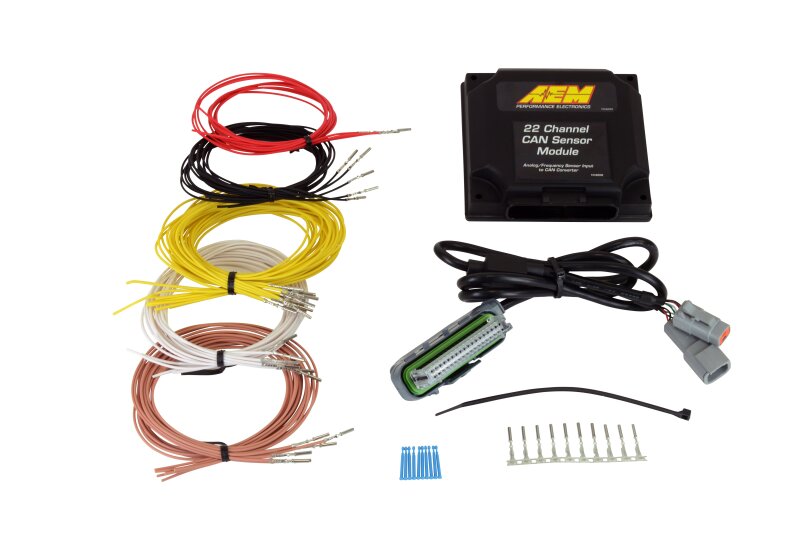

  • Wiring harness included with 36-inch flying leads and pre-wired CAN cable
  • Four Dedicated 0-5V analog inputs
  • Four Temperature (thermistor) inputs
  • Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
  • One dedicated fuel level input (0 to 250 ohm range)
  • Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
  • One Tach Input, trigger when low, 12v internal Pull Up
  • Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
  • Jumper selectable CAN bus speeds, 250k,500k,1M
  • Jumper selectable terminating resistor
  • Jumper selectable header length, 11bit or 29 bit
  • Dimensions: 4.7" L x 4.3" W x 1.4" H (not including connector)
  • Weight: 6.4oz / 180g
