Mishimoto 2017+ Honda Civic Type R Baffled Oil Catch Can Kit - Black
There is no doubt that the 2017 Honda Civic Type R is the current king of the hot-hatchbacks, and it's easy to see why. The mighty K20C1 producing 305hp combined with Honda's state of the art torque-vectoring differential and suspension delivered a record shattering lap-time around the Nürburgring, and put it on a level of its own.
However, this performance comes at a cost. The compound of the direct-injected fuel delivery system along with the high-compression and turbocharged power propelling the CTR leaves the top end components susceptible to the symptoms of blow-by, clogging intake valves and coating the internals of the intercooler, reducing the temperature of this year's scolding hot-hatch.

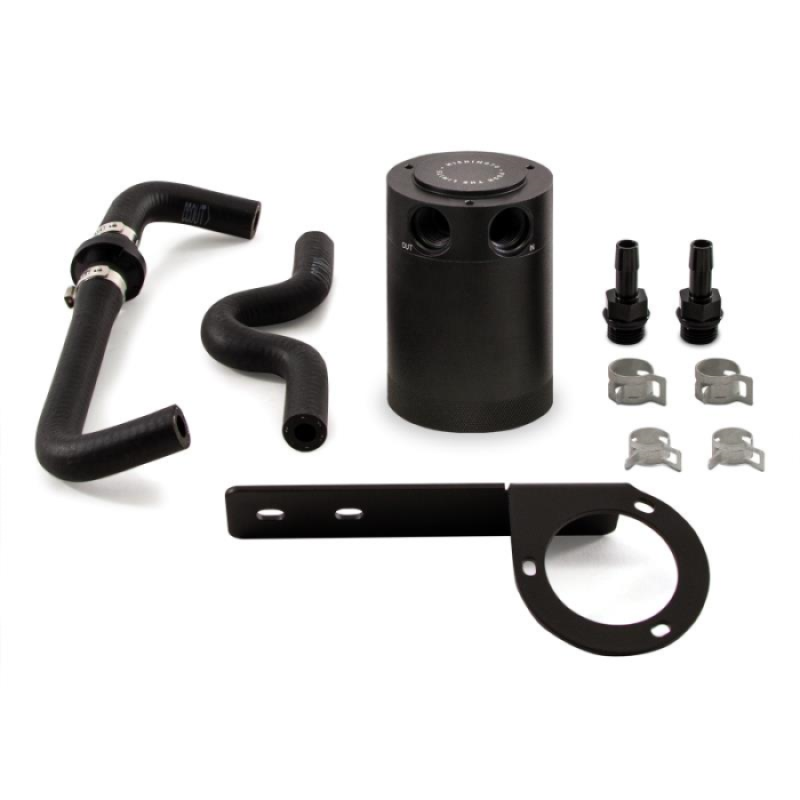

Quash the full frontal assault of engine blow-by in you 2017 Honda Civic Type R with the Mishimoto Direct Fit Baffled Oil Catch Can kit. This kit includes everything you need to protect your investment of a limited run FK8 Type R, which contains molded hoses designed specifically for the K20C1's PCV system which simplifies the installation of this kit. For added protection, a one-way check valve has been incorporated into the lines to ensure that the crank-case gasses are always flowing in the correct direction.
Also included in the kit is a mounting bracket engineered to fit directly on the Type R's firewall to hold our 2oz. compact oil catch can steady in any driving condition. Our bracket is available in wrinkle black and wrinkle red to add some extra flare under the hood of the Civic Type R.
- Direct fit for the left-hand drive 2017+ Honda Civic Type R
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Installs in under 30 minutes
- Robust, application-specific bracket mounts the can in a serviceable location
- Bracket available in Black or Rallye Red
- Catch can has a 2 oz. capacity for longer servicing intervals
- Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase.
- Billet 6061 aluminum sealed can is fully serviceable

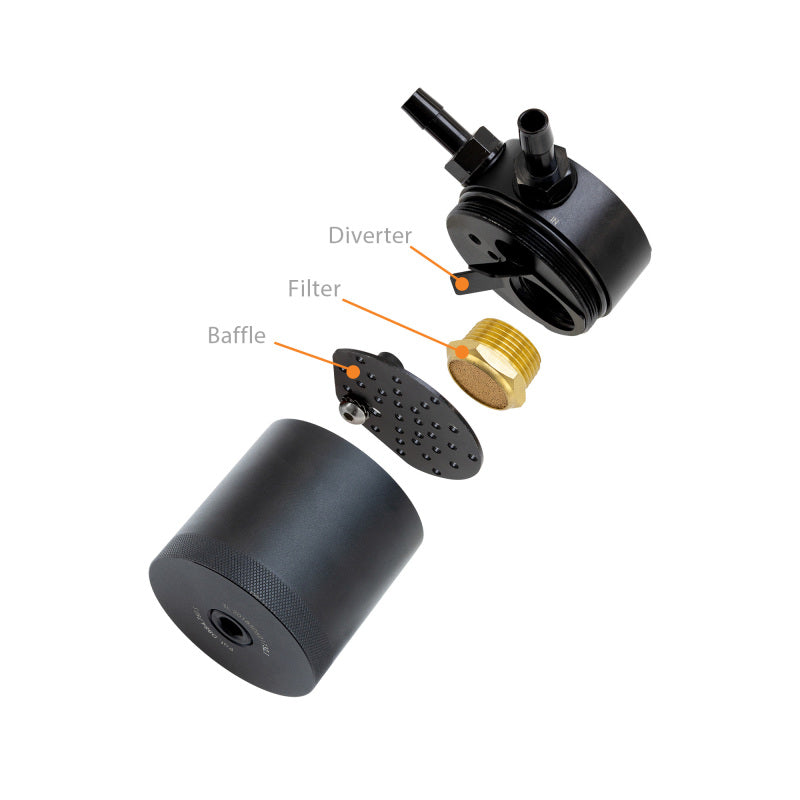

- Internal air diverter increases air turbulence to improve oil separation
- Mishimoto Lifetime Warranty
- Catch can has a 3 oz. capacity for longer serving intervals
- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
SPECIFICATION:
- Overall Heigh: 3.8"
- Overall Diameter: 2.5"
- Inlet: 3/8"
- Outlet: 3/8"
- Drain Plug Thread Size: 3/8" NPT
- Capacity: 2 fl oz
- Fits: 2017 Honda Civic Type R
- Engine Codes: K20C1
- Chassis Codes: FK8
- Materia: 6061 Aluminum
- Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
- Note: Only fits left-hand drive (LHD) vehicles.
- Baffled: True
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 - 2021 | Honda | Civic | EX-L, Sport Touring, Type R, Touring, DX, EX, Sport, LX |
| 2018 - 2020 | Honda | Civic | i-Style |
| 2017 - 2018 | Honda | Civic | LX-P, EX-T |
| 2018 | Honda | Civic | SE, Coupe |
| 2019 - 2020 | Honda | Civic | Sport Plus |
| 2017 | Honda | Civic | Turbo |
| 2017 - 2020 | Honda | Civic | Turbo Plus, Si |
| 2021 | Honda | Civic | Type R Limited Edition |
