Mishimoto 2017+ Ford Powerstroke 6.7L Intercooler Pipe & Boot Kit
Mishimoto has developed an intercooler pipe and boot kit for the 2017+ 6.7L Powerstroke for customers looking to upgrade both cold-side and hot-side intercooler pipes at the same time! Upgrade to the Mishimoto kit for increased reliability, durability, and performance.
The pipes are constructed of mandrel bent aluminum with a polished finish and eliminate restrictive bends in the factory pipe, allowing for improvements in airflow, power, and EGTs. The engineers at Mishimoto designed CNC-machined quick-disconnect flanges and IAT sensor housing to allow for an easy install in less than two hours. This intercooler pipe and boot kit is direct fit, retaining all factory emissions components and does not require the use of a tuner.
This kit includes Mishimoto Silicone Boots with DuraCore technology. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto Constant-Tension T-bolt Clamps for accurate and consistent holding power.
This pipe and boot kit is the perfect addition to the Mishimoto 6.7L Powerstroke Performance Primary Radiator.
- Direct fit for the 6.7L Powerstroke, 2017+
- Mandrel-bent, polished aluminum pipes eliminates restrictive bends
- CNC-machined stock-style coupling allows for quick install
- Includes Mishimoto Silicone Boots with DuraCoreT Technology and Mishimoto Constant Tension T-bolt Clamps
- Installs in under one hour
Specification
Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

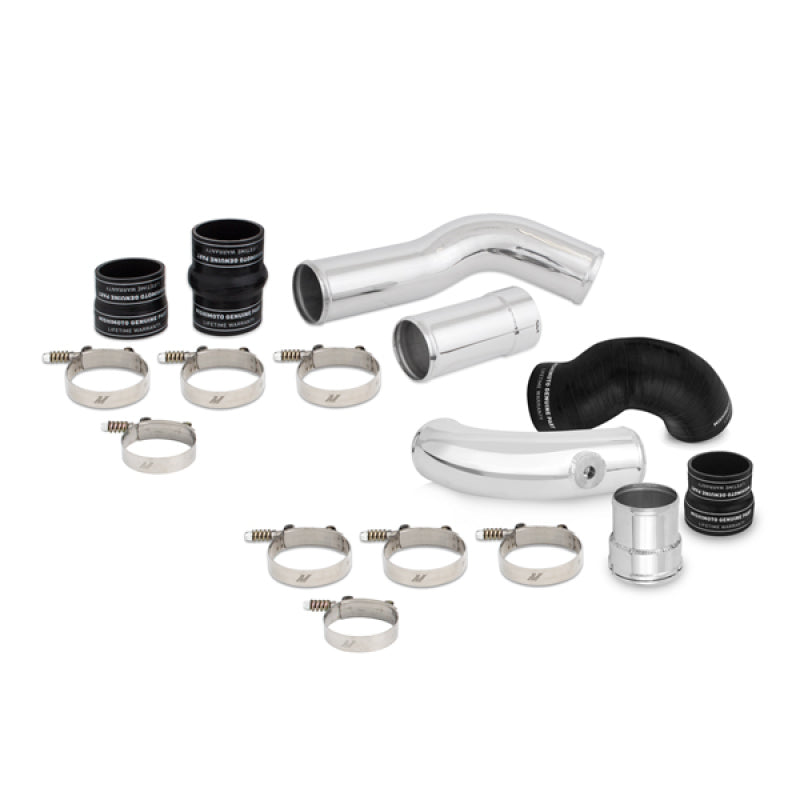

Purchase Includes
(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange
(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip
(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing
(1) Aluminum Intercooler Pipe
(4) Silicone Boots with DuraCoreT Technology
(8) Constant Tension T-Bolt Clamps
Note
Mishimoto has improved this product by including an O-ring and spring clip for the cold-side pipe. If you did not receive these components with your kit, contact our Customer Service Team or remove the stock O-ring and spring clip and install them onto your Mishimoto CNC-machined coupling.
The stock O-ring and spring clip must be re-used with the hot-side pipe.
Pipe Diameter
2.75" (Hot-Side Turbo Section)
3.0" (Hot-Side Intercooler Section)
2.65" (Cold-Side Intercooler Section)
3.5" (Cold-Side Butterfly Valve Section)
Constant Tension T-Bolt Clamps Specs (1) 3.0" Constant Tension T-Bolt Clamps
(6) 3.25" Constant Tension T-Bolt Clamps
(1) 4.0" Constant Tension T-Bolt Clamp
Silicone Boots With DuraCore Specs
Boot 1: 2.75" to 3.00"
Boot 2: 3.00"
Boot 3: 2.65" to 3.00"
Boot 4: 3.00" to 3.50"
Fits
2017+ Ford F-250 w/ 6.7L Powerstroke
2017+ Ford F-350 w/ 6.7L Powerstroke
2017+ Ford F-450 w/ 6.7L Powerstroke
2017+ Ford F-550 w/
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 - 2021 | Ford | F-250 Super Duty | Lariat, XLT, Platinum, King Ranch, XL |
| 2018 - 2021 | Ford | F-250 Super Duty | Limited |
| 2018 - 2021 | Ford | F-350 Super Duty | Limited |
| 2017 - 2021 | Ford | F-350 Super Duty | Platinum, XL, XLT, Lariat, King Ranch |
| 2017 - 2020 | Ford | F-350 Super Duty | XL Plus |
