Flowmaster 2017-2018 Ford F-150, 3.5L, Eco V6, Delta Force PAI, Plastic Tube, Bla
Performance Air Intake - Delta Force® - 17-18 F-150 3.5L EcoBoost
Application Summary
Fits 2017-2018 Ford F-150 with 3.5L EcoBoost Engine. NOTE: This kit is not engineered to fit vehicles with a body lift.
Features

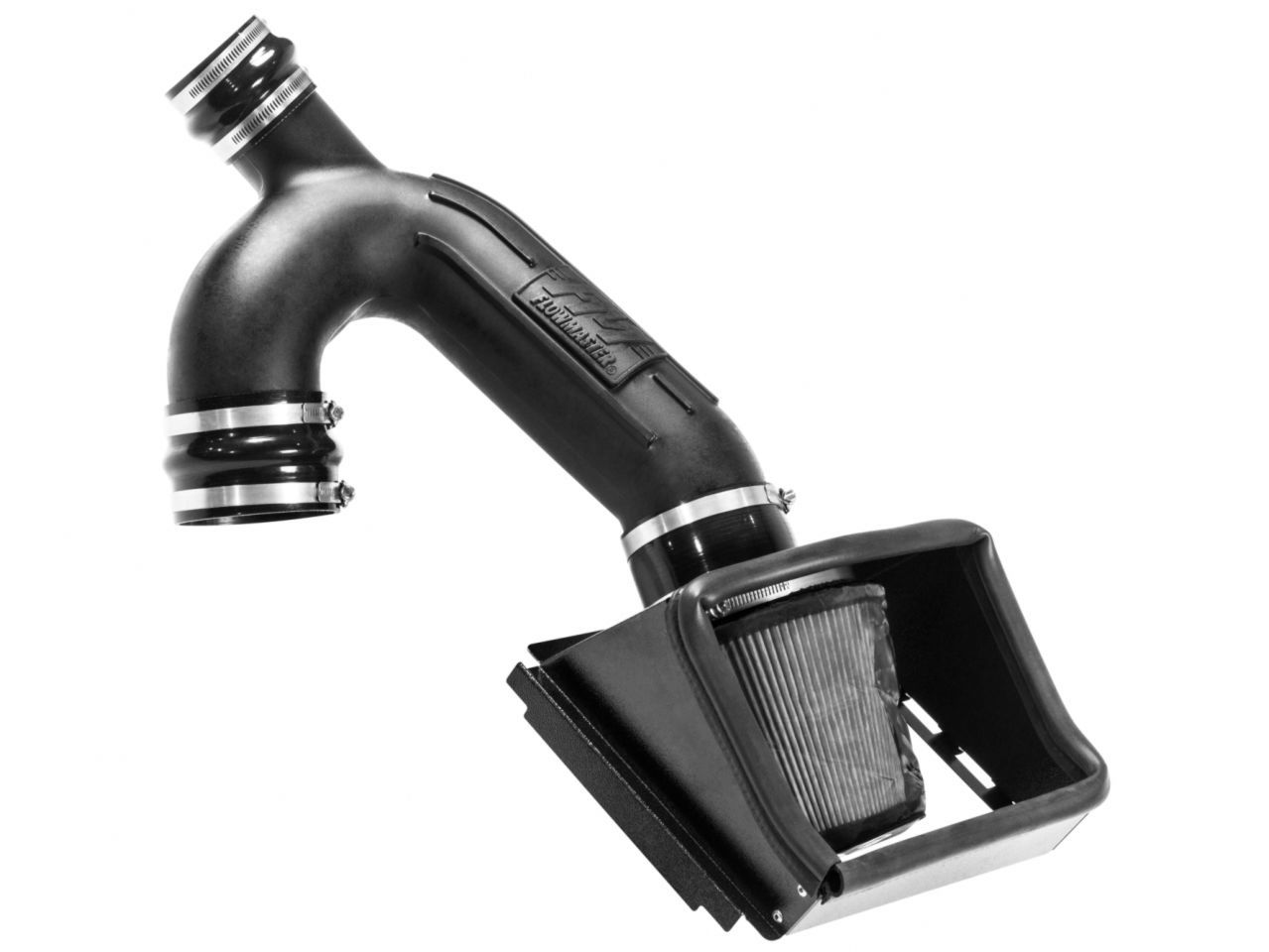

Take the performance of your vehicle to the next level with the addition of Flowmaster's new Delta Force® Performance Air Intake system for 2017-2018 Ford F-150 truck with 3.5L Eco-boost engine. The Delta Force system contains an ultra-trick looking, custom molded black Cross-Linked Polyethylene (XLPE) high-flow intake tube, black anodized aluminum fittings (when applicable), high quality reinforced silicone couplers and all stainless steel hardware. Other features include a large 6" diameter high-flow conical shaped dry synthetic air filter, a custom-fit black powder-coated air dam with attachment brackets to securely mount the system in place along with soft bumpers to eliminate any metal to metal contact under the hood. For maximum performance and that iconic Flowmaster® exhaust tone, we highly recommend pairing your new Delta Force Performance Air Intake with a Flowmaster exhaust system. Delta Force Performance Air Intakes are NOT currently legal for use or for sale in the State of California. Proud to Say Made in the USA.
- Dry Synthetic Filter Media
- No Cutting or Drilling For Easy Installation
- Power Gains of Up to 15% HP and TQ
- No Tuning Required
| Air Filter Overall Width (in) | 7.5 | Air Filter Inside Diameter (in) | 6 |
|---|---|---|---|
| Air Filter Small End Diameter (in) | 5 | Air Filter Outlet Shape | Cone |
| Air Filter Oulet Length(in) | 1 | Air Filter Element Color | White |
| Air Filter Element Washable | No | Air Filter Heat Shield Color/Finish | Black/Powder Coated |
| Air Box Included | No | Clamp Type | Worm Gear |
| Clamp Color/Finish | Natural | Coupler Material | Silicone |
| Intake Pipe Color/Finish | Black | Intake Pipe Inlet Length (in) | 2 |
| Intake Pipe Outlet Shape | Round | Intake Pipe Outlet Width (in) | 4 |
| Intake Pipe Ports | 1 | MAF Sensor Adapter Included | No |
| Vacuum Tubing Included | No | Replacement Filter PN (Dry) | 615010D |
| CARB (California) Compliant | No | Air Filter Overall Length (in) | 6.625 |
| Air Filter Overall Height (in) | 6.625 | Air Filter Outside Diameter (in) | 7.5 |
| Air Filter Large End Diameter (in) | 7.5 | Air Filter Oulet Width (in) | 6 |
| Air Filter End Cap Color/Finish | Black | Air Filter Element Material | Synthetic sheet |
| Air Filter Heat Shield Included | Yes | Air Filter Heat Shield Material | Steel |
| Clamp Quantity Included | 6 | Clamp Material | Stainless Steel |
| Coupler Quantity Included | 3 | Coupler Color/Finish | Black |
| IntakePipe Inlet Shape | Round | Intake Pipe Inlet Width (in) | 4 |
| Intake Pipe Outlet Length (in) | 2 | Intake Pipe Material | Cross-Linked Polyethylene |
| Mass Air Flow Sensor Included | No | Mounting Hardware Included | Yes |
| Replacement Filter PN (Oiled) | 615010 | Special Fitment Info | No |
