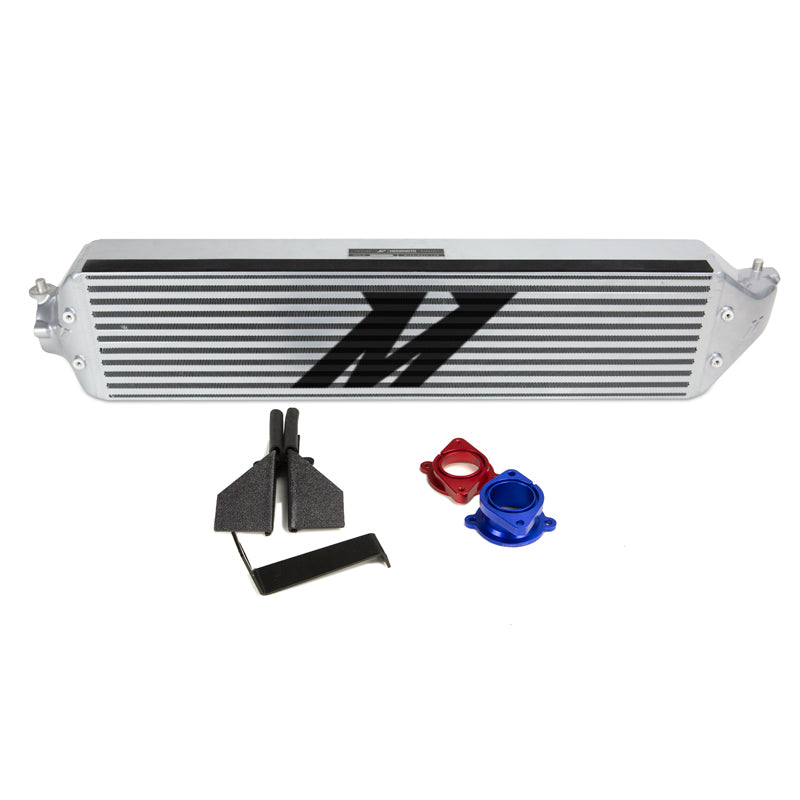

Mishimoto 2016+ Honda Civic 1.5T / 2017+ Honda Civic Si Intercooler
Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler from Mishimoto! In the age of the turbocharger, Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced, it still suffers from an age-old enemy - heat.
The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks, giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum, bar-and-plate construction is specifically designed to shrug off heat generated by compressing air into the intake manifold. Our intercooler also has increased the volume by 102% and fin surface area by 97%, which helps drop outlet air temperatures by 20°F over the stock intercooler, and up to 42°F once a performance tune is added.
The benefits of our upgraded design don't stop with the temperature drop. Our direct-fit intercooler adds up to 4 hp and 8 ft-lbs of torque when combined with the 2016+ Honda Civic Performance Intercooler Piping, with the potential to boost that power gain to 11 hp and 9 ft-lbs of torque with a tune. The Mishimoto 2016+ Honda Civic Performance Intercooler is available in Silver or Black.
- Direct fit for the 2016+ Honda Civic 1.5T and Si
- Max power gains of 3 hp and 8 ft-lbs torque on stock tuning
- Increased core size of 102% and fin surface area by 97%
- Drops outlet air temperatures by 20°F on the stock tune, and 42°F with performance tuning
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Compatible with stock piping
- Available in silver or black
SPECIFICATION
- Installation Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
- Engine Codes: L15B7
-
Chassis Codes:
- FC1
- FC3
- FK4
- FK7
-
Fits:
- 2016+ Honda Civic 1.5T
- 2017+ Honda Civic Si
- Weight: 19 lbs.
- Core Size: 27.5" x 6.5" x 3.5"
- Construction: Bar-and-Plate
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2016 - 2021 | Honda | Civic | EX, EX-L, DX, Touring, LX |
2016 - 2018 | Honda | Civic | EX-T, LX-P |
2018 - 2020 | Honda | Civic | i-Style |
2018 | Honda | Civic | SE, Coupe |
2017 - 2020 | Honda | Civic | Si, Turbo Plus |
2019 - 2020 | Honda | Civic | Sport Plus |
2017 - 2021 | Honda | Civic | Sport Touring, Sport, Type R |
2016 - 2017 | Honda | Civic | Turbo |
2021 | Honda | Civic | Type R Limited Edition |
