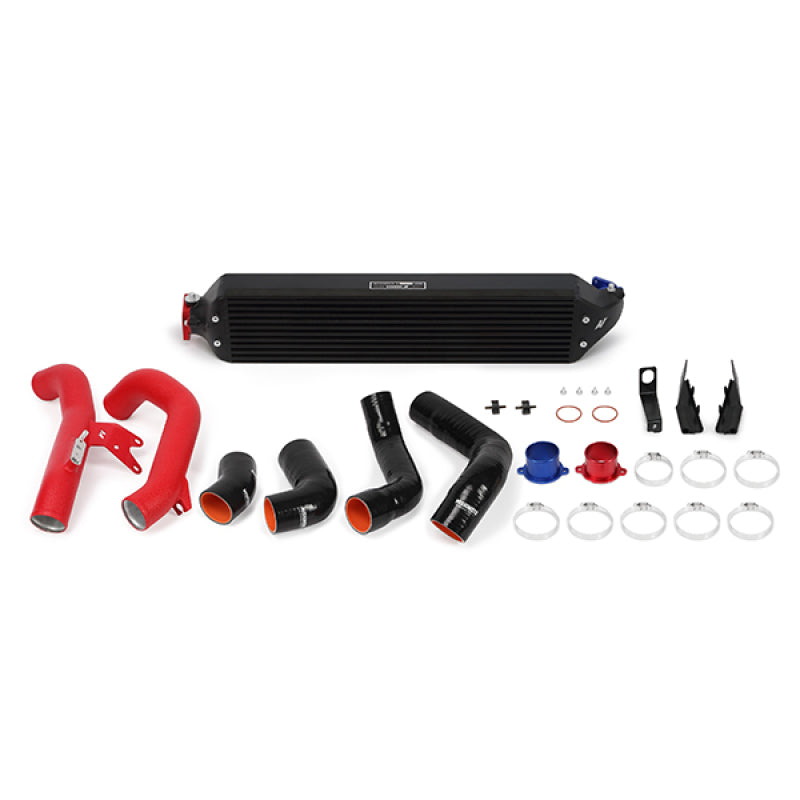

Mishimoto 2016+ Honda Civic 1.5T / 2017+ Honda Civic Si Black Intercooler

• Direct fit for the 2016+ Honda Civic 1.5T and Si
• Max power gains of 4 whp and 8 ft-lbs torque on stock tuning
• Increased core size of 102% and fin surface area by 97%
• Drops outlet air temperatures by 20°F on the stock tune, and 42°F with performance tuning
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• 30% increase in size over stock intercooler piping
• Increased flow capacity ideal for tuned applications
• Mandrel-bent aluminum hot and cold-side piping for increased durability

Description

Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler Kit from Mishimoto! In the age of the turbocharger, Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced, it still suffers from an age-old enemy - heat.

The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks, giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum, bar-and-plate construction is specifically designed to shrug off heat generated by compressing air into the intake manifold. Our intercooler has increased the volume by 102% and fin surface area by 97%, which helps drop outlet air temperatures by 20°F over the stock intercooler, and up to 42°F once a performance tune is added.

The benefits of our upgraded design don't stop with the intercooler. Our direct-fit intercooler kit also gives the stock intercooler piping an overhaul. We ditched the plastic and rubber combination that made up the original equipment and replaced them with mandrel-bent aluminum and 5-layer, fiber-embedded silicone couplers. Our piping also increases the size of both the hot and cold sides of the piping system from 42 mm to 55 mm, equating in a 30% increase in size. We also took the liberty of reducing the angles of the bends in the piping, giving the charged air a more direct and improved flow through the intercooling system.

Our performance intercooler kit adds up to 4 whp and 8 ft-lbs of torque on the stock tuning, with the potential to boost that power gain to 11 whp and 9 ft-lbs of torque with a tune. The Mishimoto 2016+ Honda Civic Performance Intercooler is available in a silver or black core with the option of wrinkle black or Rallye Red piping.

Tech Specs

• Pipe Diameter 2.2"
• Engine Codes L15B7
• Chassis Codes FC1 ,FC3 ,FK4 ,FK7
• Fits 2016+ Honda Civic 1.5T
  2017+ Honda Civic Si
• Weight 19 lbs Coating Powder Coated
• Core Size 27.5" x 6.5" x 3.5"
• Construction Bar-and-plate
