Flowmaster 2014-18 Corvette Stingray, 6.2L, V8, Axle-back, Outlaw Series Mufflers
Axle-Back 409S - Outlaw® Kit - DOR - Moderate/Aggressive Sound
Application Summary
2014-2017 Chevrolet Corvette Z06 with 6.2L Engine. Fits WITH 2V Performance Exhaust Option NPP. Fits Supercharged models
Note 1: For applications with the 2V Performance Exhaust option
Features

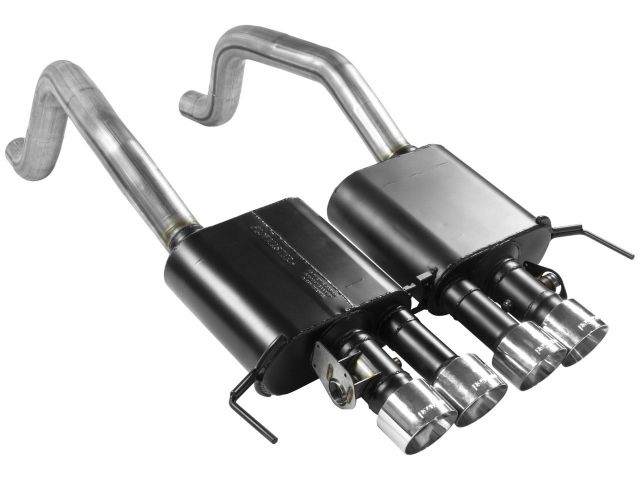

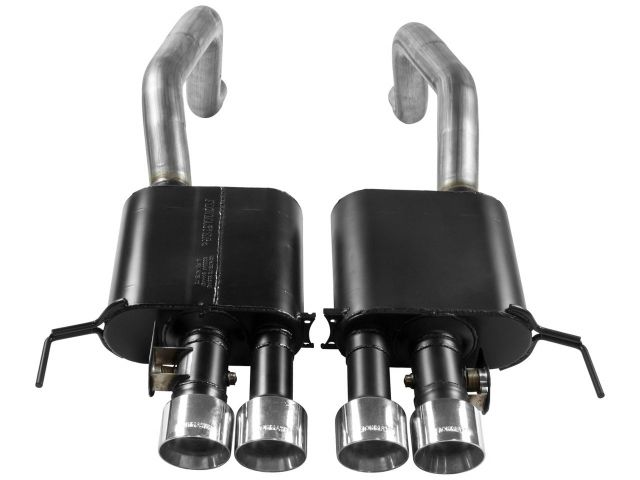

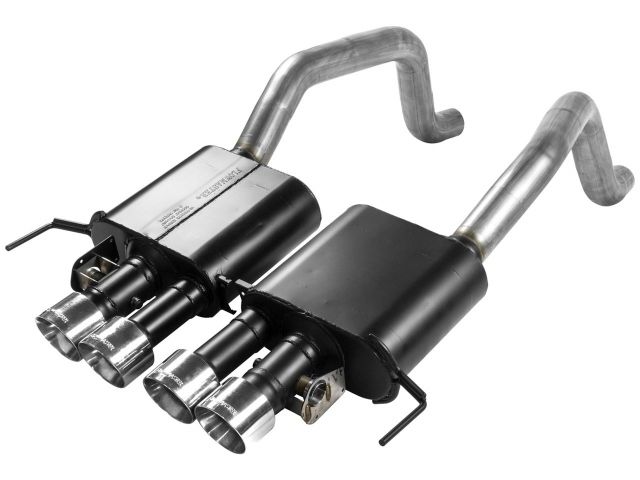

Flowmaster® Outlaw® Axle-back exhaust system for 2014-2018 Corvette Z06 coupes and convertibles with the 6.2L Supercharged V8 engine and factory 2V Performance Exhaust NPP option is perfect for the person looking for a powerful and aggressive sound quality in Track mode, while maintaining a deep moderate tone during Stealth mode. This kit features Outlaw mufflers and quad 4.00 inch polished stainless steel tips and includes functional exhaust valves to work with the OE actuator motors to select between sound levels. The exhaust system is manufactured in the USA with 409S stainless steel and is covered by Flowmaster's Lifetime Limited Warranty. Designed for an easy fit on coupes and convertibles with the factory 2V Performance Exhaust Option NPP. The system includes all necessary parts, hardware and installation instructions.
- For Performance Exhaust Option NPP
- Race Inspired Outlaw® Mufflers
- Stainless Steel Construction
- Deep Powerful Sound
| Tip Logo | Embossed | Tip Cut | Angle |
|---|---|---|---|
| Tip Edge Style | Cut | Tip Diameter | 4 |
| Tip Length (in) | 3.25 | Tip Quantity | 4 |
| Heat Shield | No | Catalytic Converter Included | No |
| CARB (California) Compliant | Yes | System Type | Axle-back |
| Exhaust Series | Outlaw® | Single Dual | Dual |
| Sound Level | Moderate | Exit Position | DOR |
| Mount Type | Uses factory hangers | Tubing Material | 409S Stainless Steel |
| Tubing Diameter (in) | 3 | Muffler Part Number | Kit Only |
| Muffler Series | Outlaw® | Muffler Type | Welded Baffle |
| Muffler Shape | Oval | Muffler Material | 409S Stainless Steel |
| Muffler Finish | Black | Muffler Quantity | 2 |
| Muffler Inlet Diameter (in) | 3 | Muffler Outlet Diameter (in) | 3 |
| Tip Style | Double wall | Tip Shape | Round |
| Tip Material | 304 Stainless | Tip Finish | Polished |
