Mishimoto 2013+ Dodge Cummins 6.7L Intercooler Kit - Black

Mishimoto has released a performance intercooler kit for the 2013+ Dodge Ram 6.7L Cummins. This kit includes everything you need to improve airflow, substantially decrease charge-air temperatures and support your truck at any power level.

The first key component is the Mishimoto 6.7L Cummins intercooler piping kit. Our engineers have maximized airflow by eliminating restrictive bends, allowing for smooth and unimpeded airflow. The piping is constructed of mandrel-bent 3 aluminum for smooth flow and rugged durability. Also included are Mishimoto silicone boots with DuraCore" technology and Mishimoto Constant-Tension T-Bolt Clamps for accurate and consistent holding force. Mishimoto DuraCore" technology comprises the innermost layer of all Mishimoto diesel silicone boots. Compared to normal silicone, DuraCore" provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of your boots and prevents leaks or blowouts.

• Direct fit for the 2013+ Dodge Ram 6.7L Cummins
• Includes hot-side and cold-side intercooler pipes and boots
• Lowers AITs by 12.5%
• 3" mandrel-bent polished aluminum piping
• Bar-and-plate construction with cast aluminum end tanks
• 76.65% increase in external fin surface area
• 37.8% larger core volume than factory
• Includes new air ducts to divert air into the core & new lower fan shroud section
• End tanks strategically designed for optimal airflow
• Internal fins designed for maximum heat transfer with minimal pressure drop
• Includes Mishimoto Silicone Boots with DuraCore" technology and Mishimoto Constant-Tension T-bolt Clamps

Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

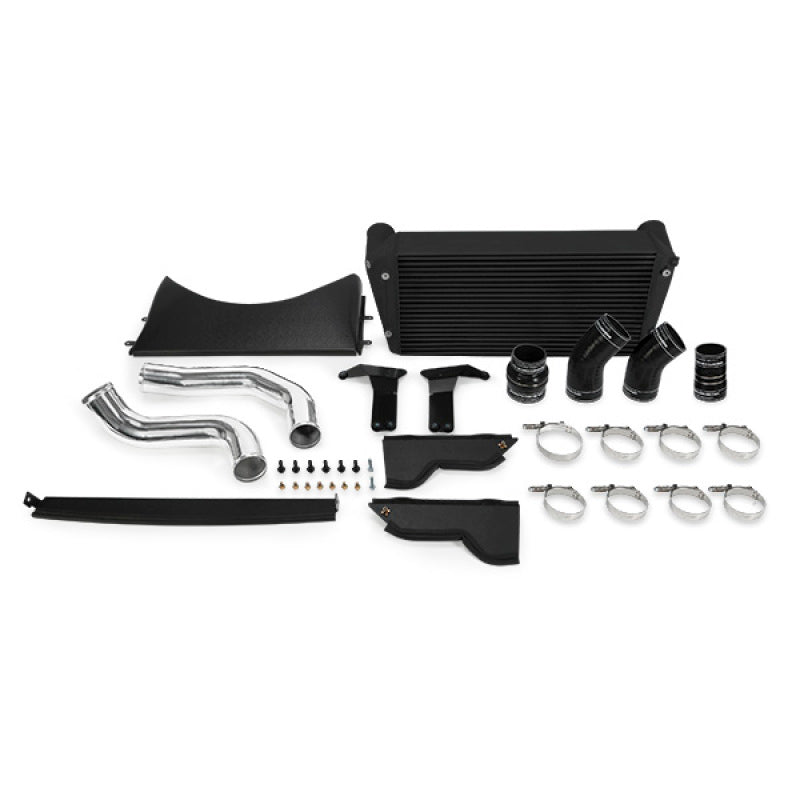

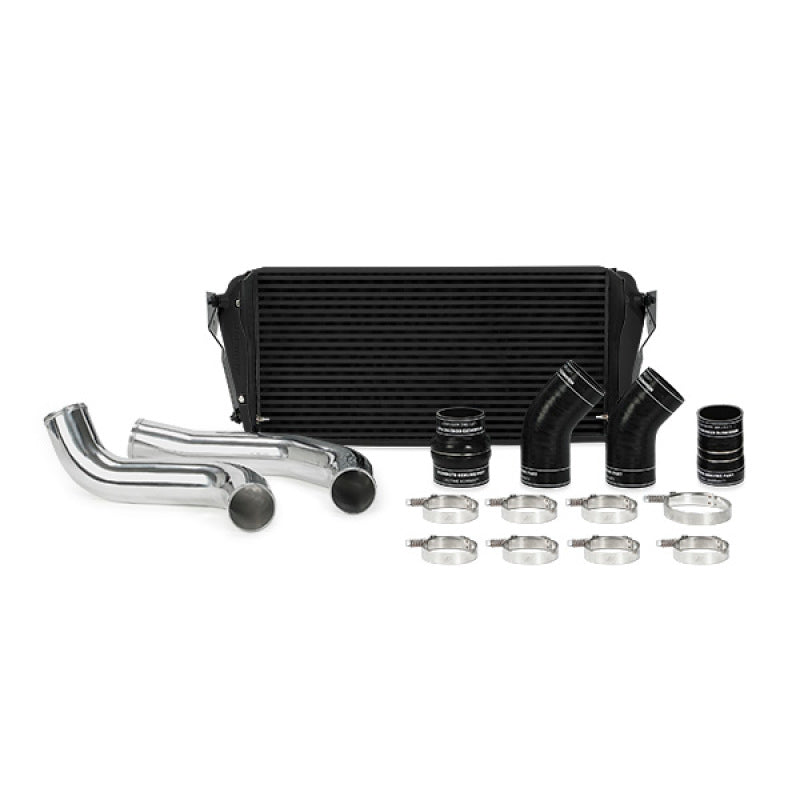

Purchase Includes (1) Mishimoto Intercooler
(3) Front Air Diversion Panels
(1) Replacement Lower Fan Shroud
(2) Mounting Brackets w/ Rubber Isolators
(2) Aluminum Pipes
(4) Silicone Boots with Duracore" Technology
(8) Constant Tension T-Bolt Clamps

Note Vehicles with snow plow mounts installed may require trimming of the mounts in order to fit this intercooler.

Fits 20132018 Dodge Ram 6.7L Cummins

Tank Wall Thickness 4 mm

Outlet 3.0"

Core Length 25.7"

Core Height 12.5"

Core Width 5.0"

Inlet 3.0"

Overall Width 10.0"

Overall Height 12.5"

Overall Length 33.0"

Make Dodge

Vehicle Fitments:
