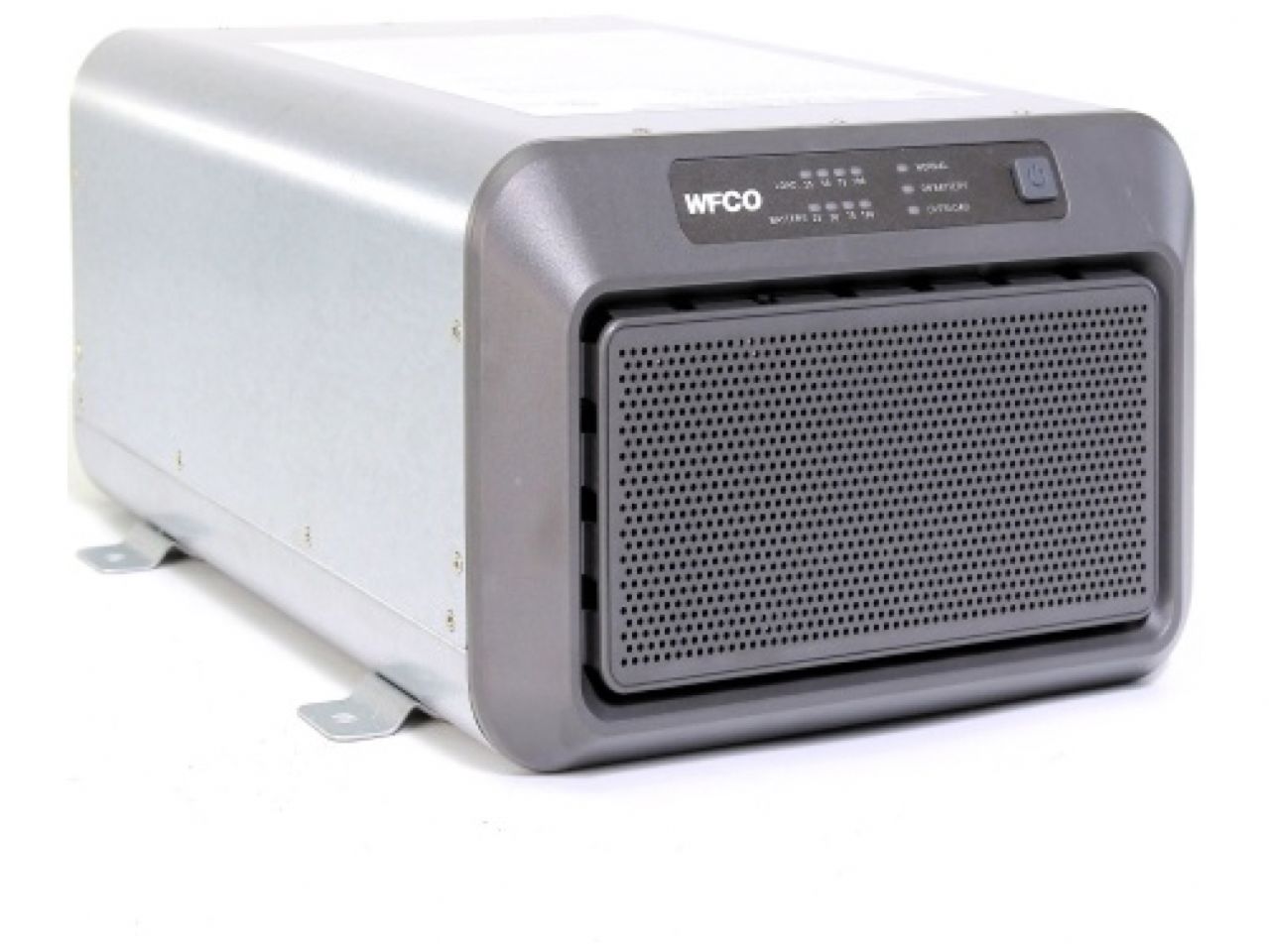

Arterra Dist 2000 Watt Power Inverter

WFCO's 2000 Watt power inverter, WF-5120, is engineered for outstanding performance. It provides high-efficiency power at full-load conditions with safeguards that include overload protection, over-temperature protection, short-circuit protection, and reverse polarity protection. The cooling fan enhances efficiency as its operation is controlled by the amount of load incurred by the inverter.

The WF-5120 features an automatic transfer switch, pure sine wave output, hi-tech filtering for premium electronics and refrigerators, and an easy hi-pot testing design. The inverter also has LED status indicators that display battery charge and inverter load levels, a low battery indicator, as well as a remote-control system that features the same display menu as the unit.

SPECIFICATION

DC Input Voltage
12V DC

DC Input Voltage Regluation
10-15V DC

Output Voltage Frequency
120 VAC/60Hz +/- 0.05%

Output Waveform
Pure Sine Wave (THD <3%)

Efficiency (full load)
>80%

Continuous Output Power
2000W

Status Indicator Lights
Green - AC normal; Amber - On battery; Red - Overload, fault two LED bars (with 4 LEDs) - Battery & Load Level

Transfer Switch
Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating

Transfer Time
<50 milliseconds

Protection Features
AC Output Fuse, Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit

Certifications
cUL458, FCC Class B compliant

Dimensions
16.2 L x 10.8 W x 6.65 H (inch) / 412 L x 274 W x 169 H (mm)

Weight
Net: 9.08 kgs / 20 lbs; Gross: 10.9 kgs / 24 lbs
