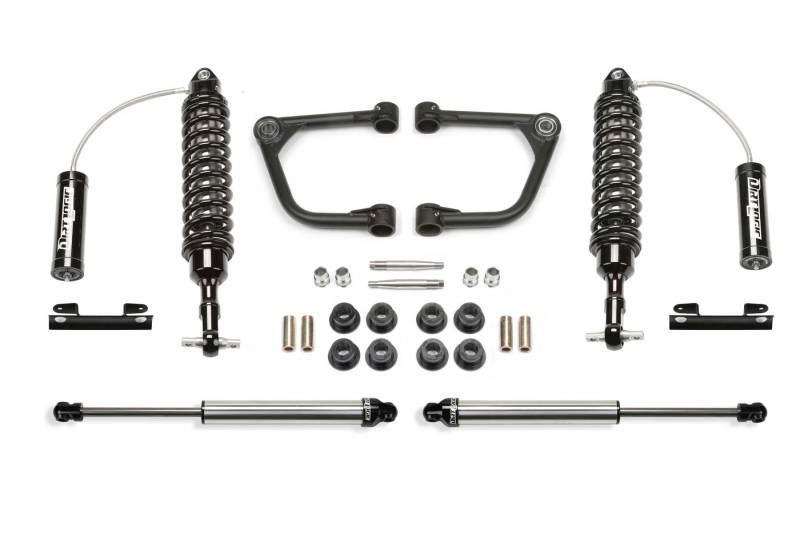

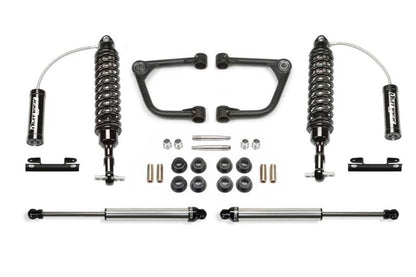

Fabtech 2" Upper Control Arm System w/ Front Dirt Logic 2.5 Resi Coilovers
Fabtech 2" Upper Control Arm System w/ Front Dirt Logic 2.5 Resi Coilovers
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyFabtech's Uniball Upper Control Arms are designed for severe duty use with stock and most aftermarket suspension systems. These Arms replace the thin stock upper control arms that are prone to flex and ball joint failure with heavy duty construction designed for aggressive offroad driving.
The Dirt Logic 2.50 Resi Coilover front shocks provide superior damping for rugged offroad use with additional wheel travel when combined with the Uniball Upper Control Arms. The rear of the vehicle receives Dirt Logic 2.25 reservoir shocks.
- Built with same materials as found on Trophy Trucks
- .120? Wall 4130 Chromoly Tubing. 1.50? OD
- .250? wall DOM Bushing Barrels
- PTFE lined 1? ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2013 | Toyota | Tundra | Base |
| 2009 - 2016 | Toyota | Tundra | Platinum |
| 2014 - 2016 | Toyota | Tundra | SR, 1794 Edition |
| 2007 - 2016 | Toyota | Tundra | SR5, Limited |
| 2015 - 2016 | Toyota | Tundra | TRD Pro |
