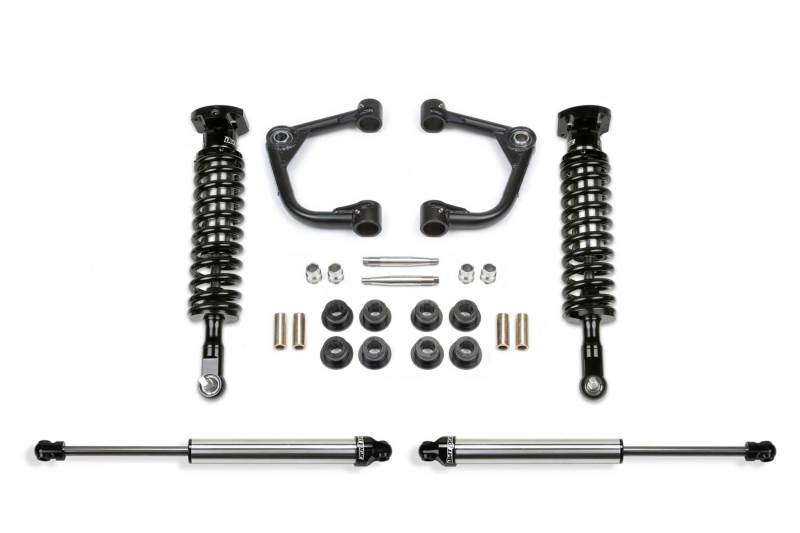

2" Uniball UCA System w/ Front Dirt Logic 2.5 Coilovers & Rear Dirt Logic 2.25 Shocks
Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The high quality tubular Upper Control Arms feature 1.25" OD. .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.
These heavy duty UCA's have been designed to work in conjunction with Fabtech's legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150's offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25's.
- Built with same materials as found on Trophy Trucks
- .120? Wall 4130 Chromoly Tubing. 1.50? OD
- .250? wall DOM Bushing Barrels
- PTFE lined 1? ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
Additional Information:
MODEL: F150
SYSTEMS: UNIBALL UCA SYSTEM
MAKE: FORD
LIFT: 2"
DRIVE: 2WD
YEAR: 2015, 2016, 2017, 2018
Included Shocks:
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
Rear Dirt Logic 2.25 Shocks
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2020 | Ford | F-150 | Lariat, XL, XLT, King Ranch, Platinum |
| 2018 - 2020 | Ford | F-150 | Police Responder |
| 2017 - 2020 | Ford | F-150 | Raptor |
| 2016 - 2020 | Ford | F-150 | SSV, Limited |
