Fabtech 2" Uniball UCA System w/ Front Dirt Logic 2.5 Coilover RESI & Rear
Fabtech 2" Uniball UCA System w/ Front Dirt Logic 2.5 Coilover RESI & Rear
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 100.6 lb
- Barcode
- 00674866099081
Billable shipping weight; may include dimensional weight.

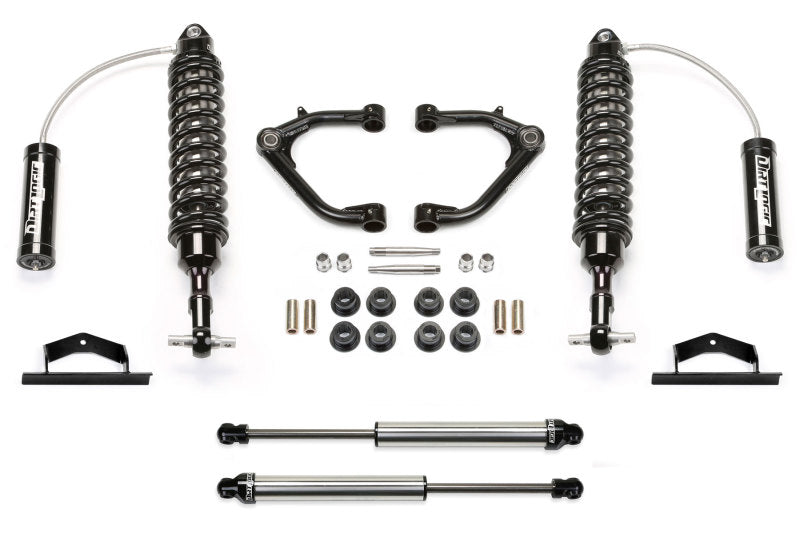

2" Uniball UCA System w/ Front Dirt Logic 2.5 Coilover RESI & Rear Dirt Logic Shocks
New upper control arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball. These arms are direct replacements for factory arms on suspensions that require additional strength. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. The chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Gain increased wheel travel with Dirt Logic 2.5 Resi Coilover shocks
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- .120" Wall 4130 Chromoly Tubing. 1.50" OD
- .250" wall DOM Bushing Barrels
- 1" ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
Additional Information:
MAKE: GM
MODEL: C1500, K1500
DRIVE: 2WD, 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013
SYSTEMS: UNIBALL UCA SYSTEM
LIFT: 2"
Tires & Wheels:
- Tire Size - 295/70R17 Wheel Size - 17×8 w/ 4 1/2in BS w/minor trimming
- Tire Size - 275/65R18 Wheel Size - 18×8 w/ 4 1/2in BS w/minor trimming
- Tire Size - 285/55R20 Wheel Size - 20×9 w/ 5in BS w/minor trimming
Included Shocks:
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
| 2014 - 2018 | Chevrolet | Silverado 1500 | High Country |
| 2009 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
| 2007 - 2018 | Chevrolet | Silverado 1500 | LTZ, LT, LS, WT |
| 2015 - 2018 | Chevrolet | Silverado 1500 | SSV |
| 2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid, LT, SS, LS, WT |
| 2007 | Chevrolet | Silverado 1500 HD Classic | LT |
| 2014 - 2018 | GMC | Sierra 1500 | Base |
| 2007 - 2018 | GMC | Sierra 1500 | Denali, SLT, SLE |
| 2009 - 2013 | GMC | Sierra 1500 | Hybrid |
| 2007 - 2013 | GMC | Sierra 1500 | SL, WT |
| 2010 - 2013 | GMC | Sierra 1500 | XFE |
| 2007 | GMC | Sierra 1500 Classic | SLE, Hybrid, SLT, SL, Denali, WT |
| 2007 | GMC | Sierra 1500 HD Classic | SLE, SLT |
