Aeromotive Gen II Stealth Fuel Tank 66-67 GTX Charger

Gen II Stealth Fuel Tank 66-67 GTX Charger

The new Gen II Stealth tank utilizes Aeromotives patented and award-winning Phantom in-tank technology that enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump while ensuring consistent fuel delivery and drivability even in low fuel conditions.

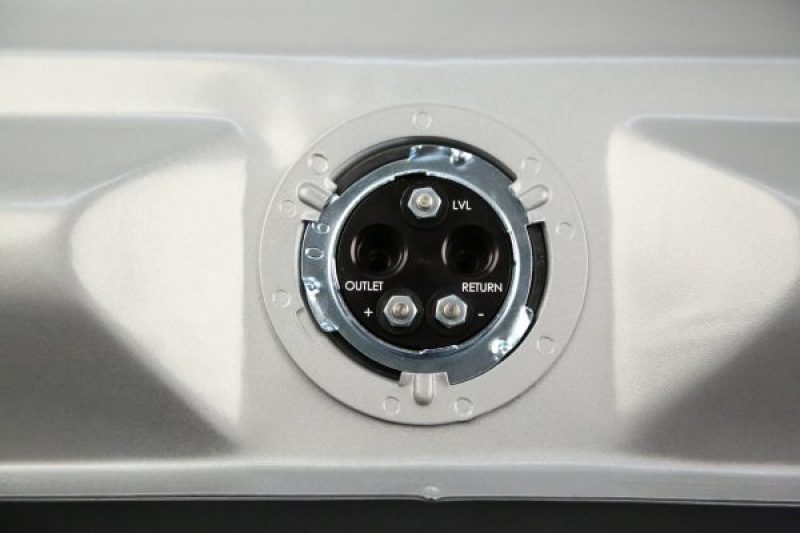

Unlike competitive tanks, Aeromotives Gen II Stealth tanks feature outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers.

All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.

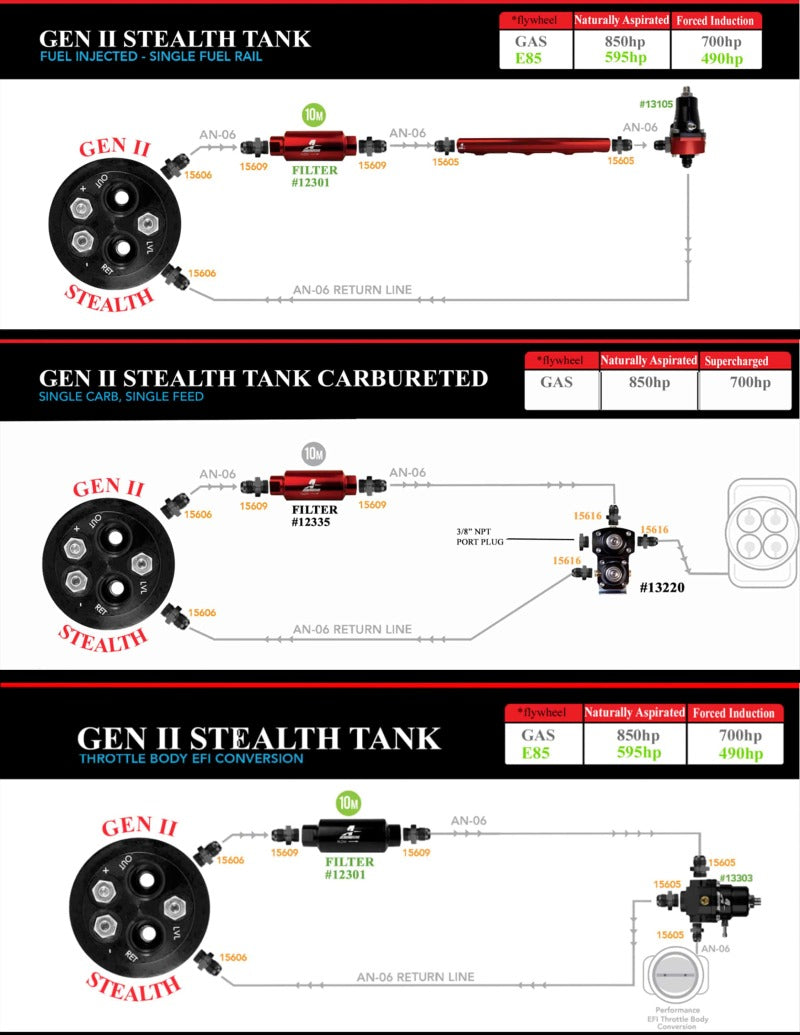

P/N 18164 200lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines (gasoline):

" Up to 600 HP naturally aspirated.

" Up to 450 HP forced air induction.

Carbureted Engines (gasoline):

" Up to 750 HP naturally aspirated.

" Up to 600 HP forced air induction.

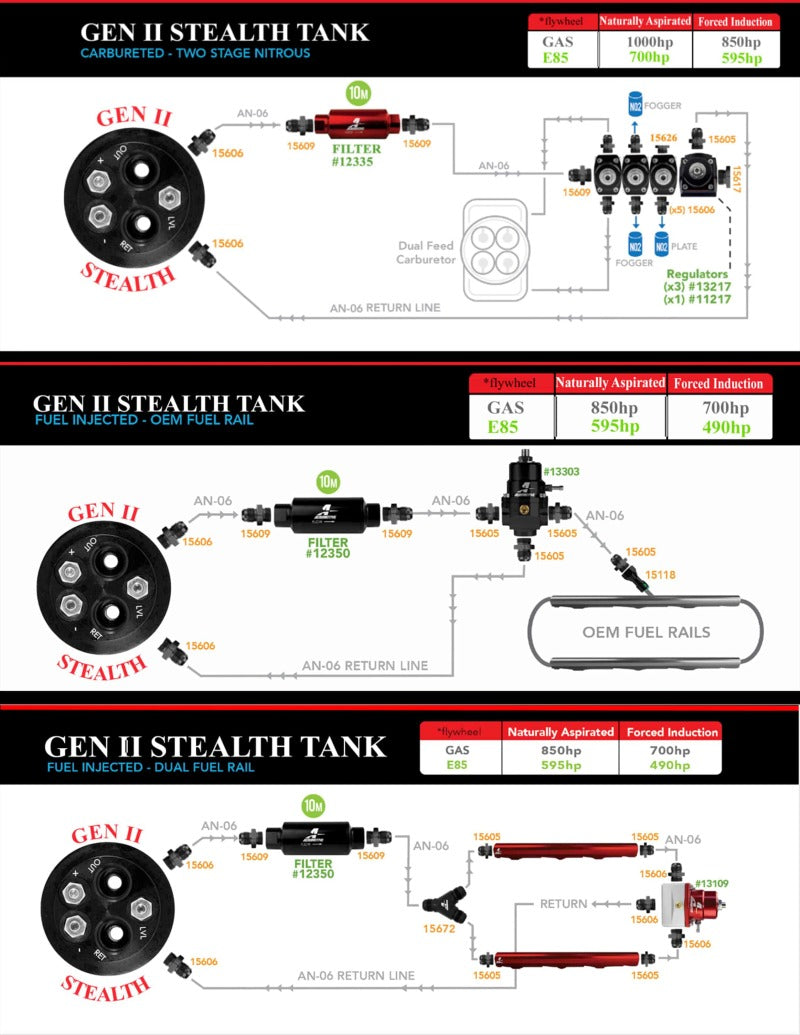

P/N 18464 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

" Gasoline: up to 850 HP naturally aspirated.

" Gasoline: up to 700 HP forced air induction.

" E85: up to 595 HP naturally aspirated.

" E85: up to 490 HP forced air induction.

Carbureted Engines:

" Gasoline: up to 1000 HP naturally aspirated.

" Gasoline: up to 850 HP forced air induction.

" E85: up to 700 HP naturally aspirated.

" E85: up to 595 HP forced air induction.

200lph, 300lphSpecifications

Dimensions: 39 x 11 x 33.75 in.

Pump Options: 200lph, 300lph

Vehicle Fitments:
