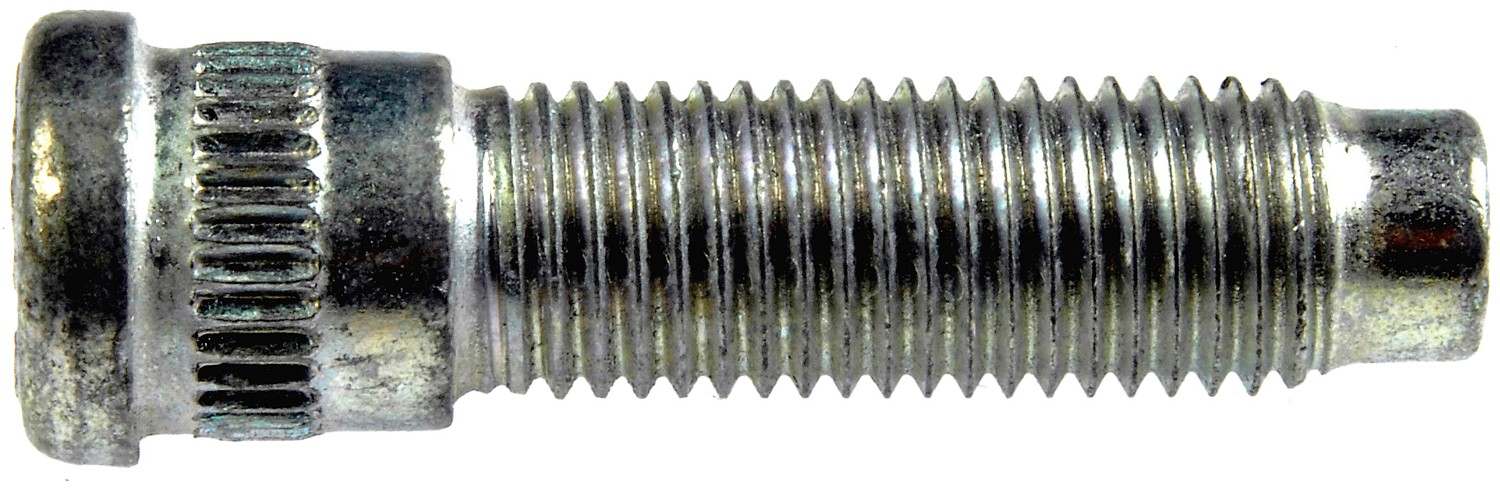

Dorman M12-1.50 Serrated Wheel Stud - 14.55mm Knurl, 49mm Length

M12-1.50 Serrated Wheel Stud - 14.55mm Knurl, 49mm Length

Application Summary: Ford Windstar 1998-95

These wheel lug studs are made of carbon steel and tested to demanding automotive industry standards to ensure strength, longevity and safety.

• Durable material - carbon steel meets SAE automotive industry standards for strength and hardness
• Corrosion tested - 72-hour salt spray testing simulates three years of corrosion resistance
• Tensile tested - lug studs undergo industry-standard proof-load testing to ensure strength
• Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States

Product Specifications

• Bolt Grade: 9.8
• Color: Silver
• Head Diameter: 16.77 mm
• Knurl Diameter (In): 14.61 mm
• Package Contents: 1 Stud
• Quick-Start Nose: Yes
• SAE or Metric: Metric
• Shoulder Diameter: 14.05 mm
• Shoulder Length (In): 11.69 mm
• Stud Material: Steel
• Style: Serrated Stud
• Thread Diameter: M12
• Thread Pitch: 1.5
• Under Head Length: 48.77 mm
• Package Quantity: 10
• Thread Size: M12-1.50
• Packaging Type: Box
• Thread Length (In): 32.64 mm
• Thread Handling: Right Hand Thread
