Dorman Door Hinge Assembly Rear Right Lower

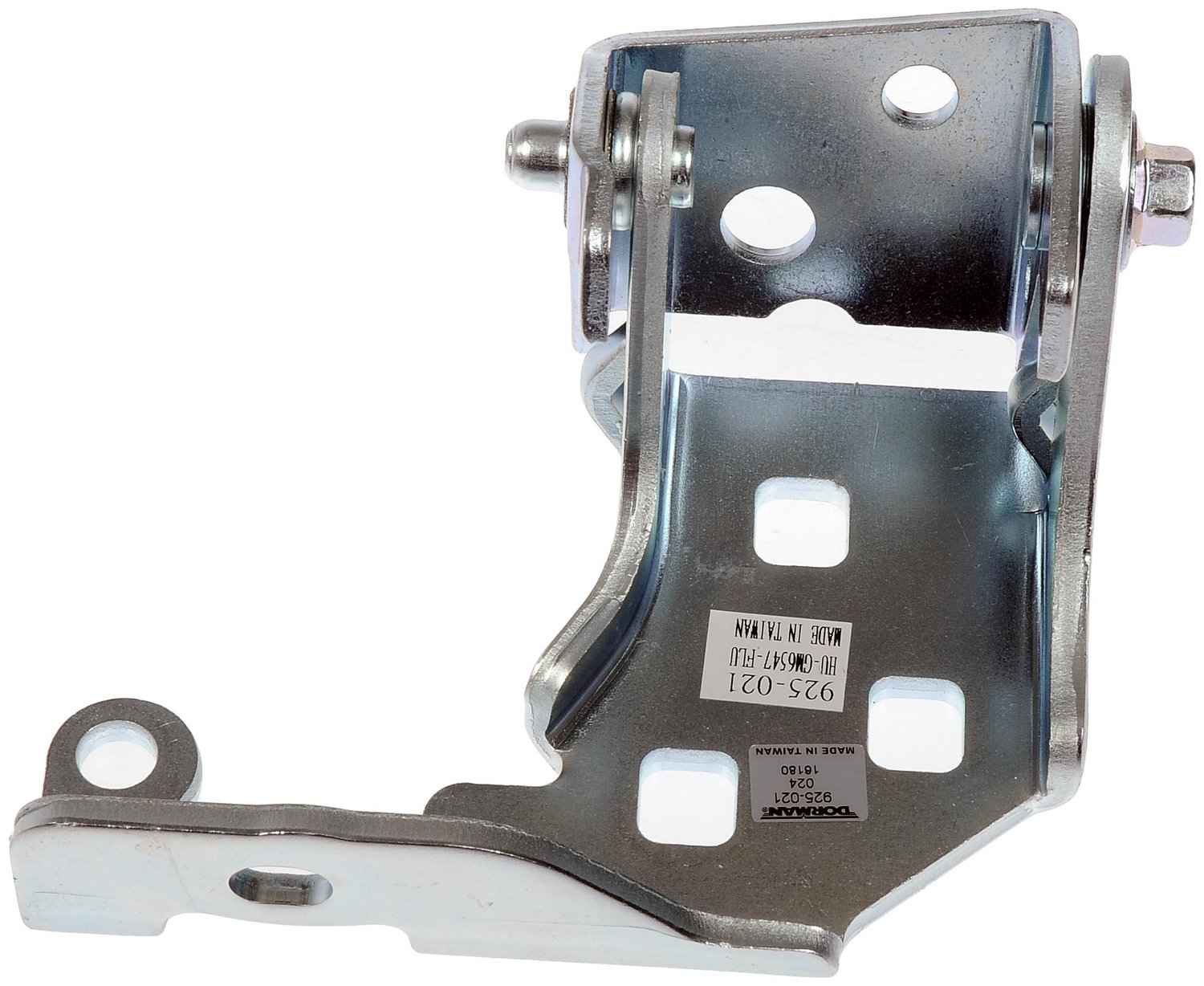

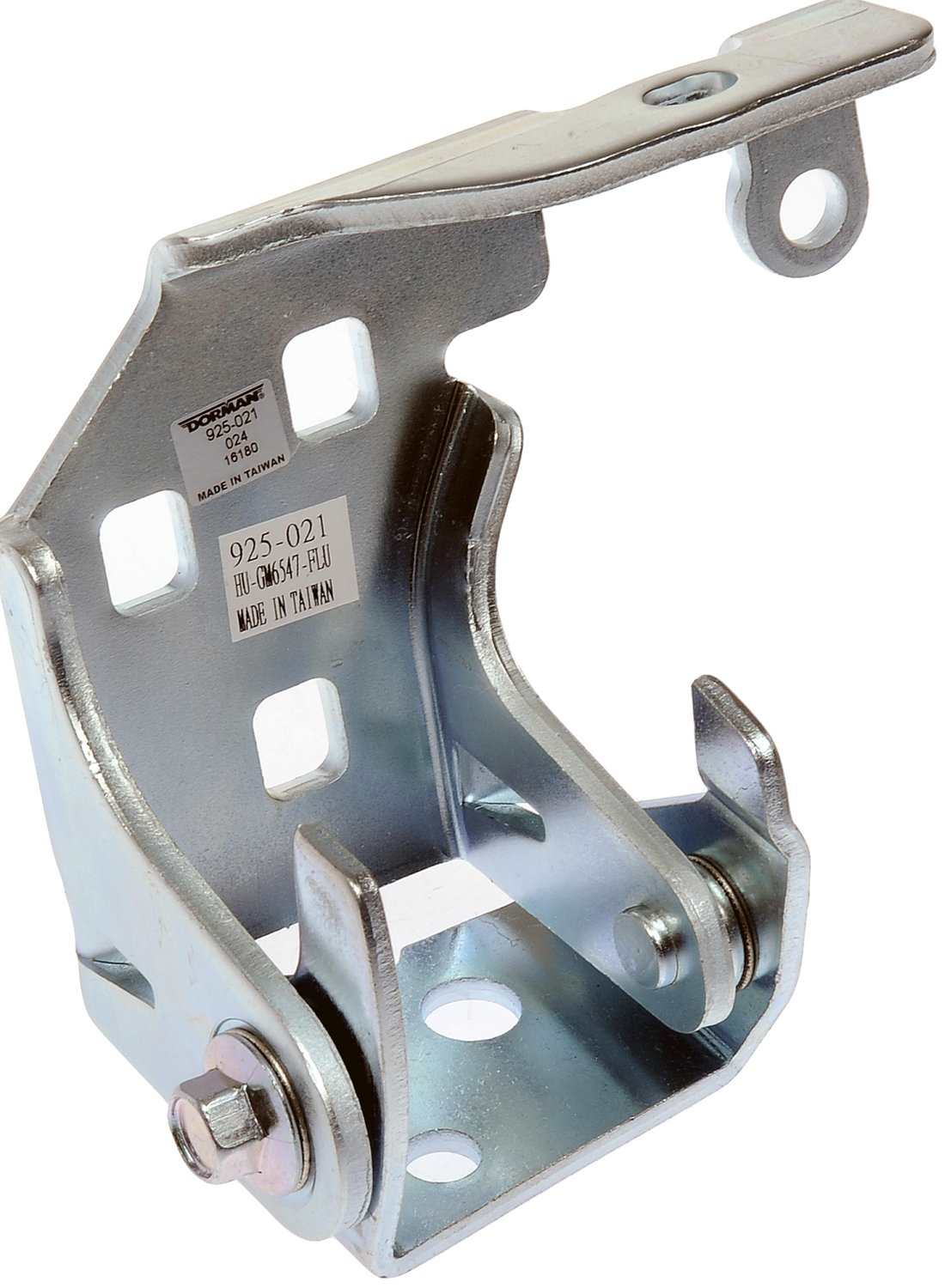

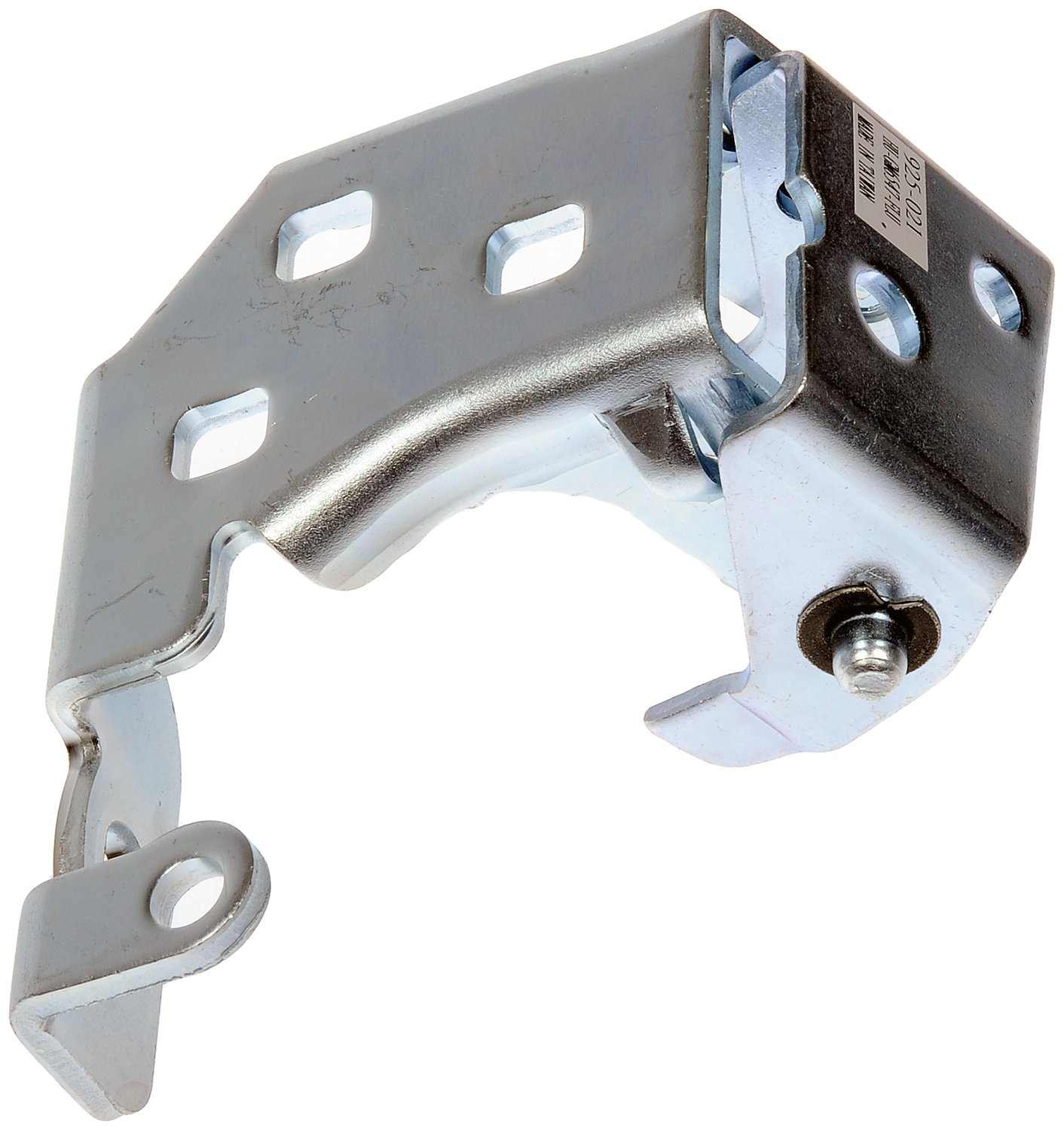

Door Hinge Assembly Rear Right Lower

Application Summary: Cadillac 2014-07, Chevrolet 2014-07, GMC 2014-07

The Dorman Door Hinge is engineered for a trouble-free installation. It comes as a full assembly, with necessary installation components to easily bolt onto the door and door frame to restore proper door operation.

• Durable steel construction for long-lasting use
• Coated for high-corrosion resistance
• Resistant to harsh weather conditions, including water intrusion
• Easy to install

Product Specifications

• Assembled Height: 146 mm
• Assembled Length: 120 mm
• Assembled Width: 73 mm
• Attachment Method: Bolt On
• Color/Finish: Zinc and Clear Chromate
• Configuration: One Piece
• Flange 1 Mount Hole Diameter: 9.8 mm
• Flange 1 Mount Hole Quantity: 1
• Flange 2 Mount Hole Diameter: 12.5 mm
• Flange 2 Mount Hole Quantity: 1
• Installation Hardware Included: No
• Interior/Exterior: Interior
• Material: Carbon Steel
• Package Contents: 1 Hinge
• Package Quantity: 1
• Pin And Bushings Included: Yes
• Pin Attachment Method: Fixed
• Pin Diameter (in): 9.5 mm
• Pin Material: Steel
• Plate Material: Steel
• Selling Package Quantity UOM: Piece
• Universal Or Specific Fit: Specific Fit
• Packaging Type: Box

Vehicle Fitments:
