Dorman Fuel Pump Module Assembly

Fuel Pump Module Assembly

Application Summary: Cadillac Escalade 2000-99, Chevrolet Tahoe 2000-98, GMC Yukon 2000-98

The Fuel Pump Module houses the fuel pump and sends fuel to the engine. The replacement restores drivability and proper engine functioning.

• Direct replacement for a proper fit every time

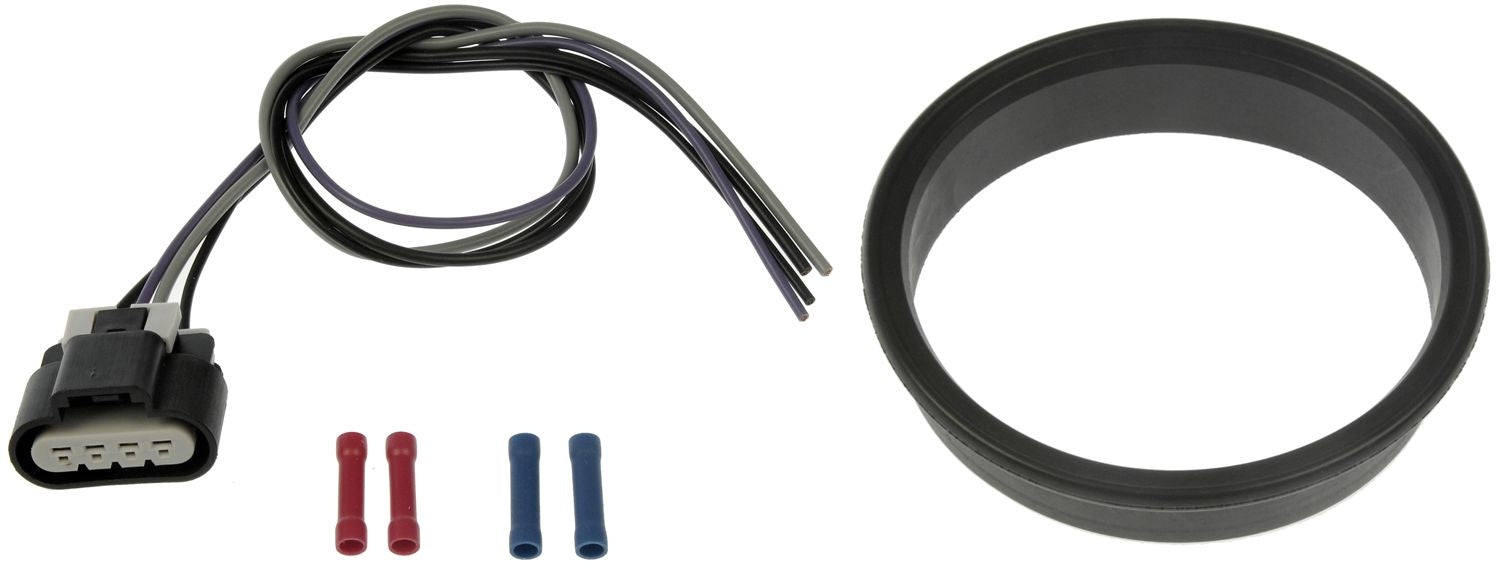

• Comes with lock ring and seal (where applicable)
• No special tools required for installation
• Fuel Tanks also available, sold separately

Product Specifications

Connector Color: White

Connector Gender: Female

Connector Shape: Flat Plug

Height: 270 mm

Housing Length: 184 mm

Housing Material: Plastic (Polybutylene Terephthalate)

Housing Width: 94 mm

Inlet Diameter: 7.89 mm

Inlet Type: Male

Length: 19.5 mm

Lock Ring Included: No

Maximum Flow Rating: 117 LPH

Maximum Pressure: 0.8 MPA

Outlet Diameter: 9.49 mm

Outlet Quantity: 1

Outlet Type: Male

Seal Included: Yes

Terminal Gender: Male Female

Terminal Quantity: 4

Terminal Type: Spade

Top Mount Diameter: 6.35 mm

Universal Or Specific Fit: Specific

Width: 6.35 mm

Wire Gauge Measurement: 1.5 AWG

Wire Quantity: 4
