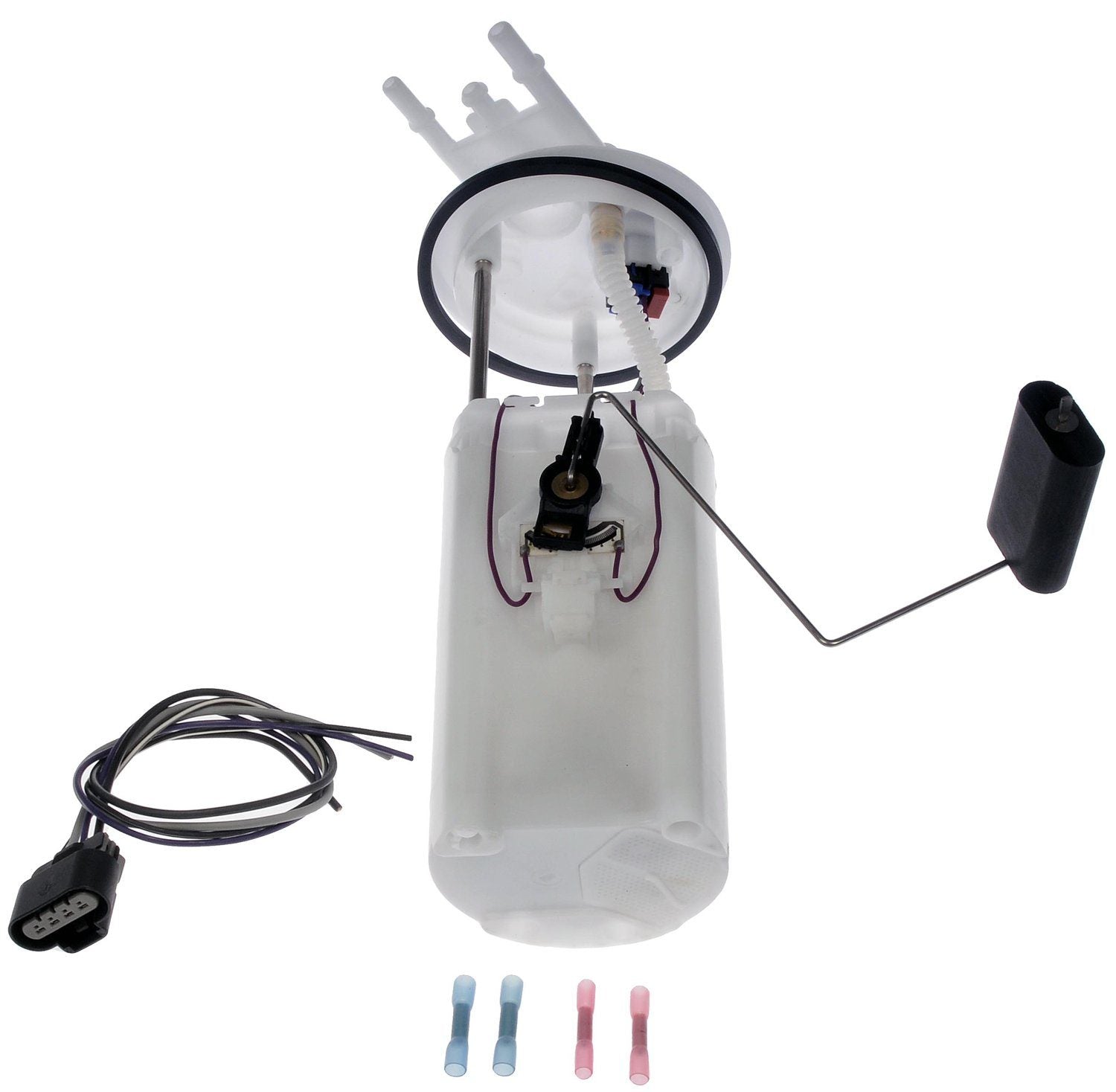

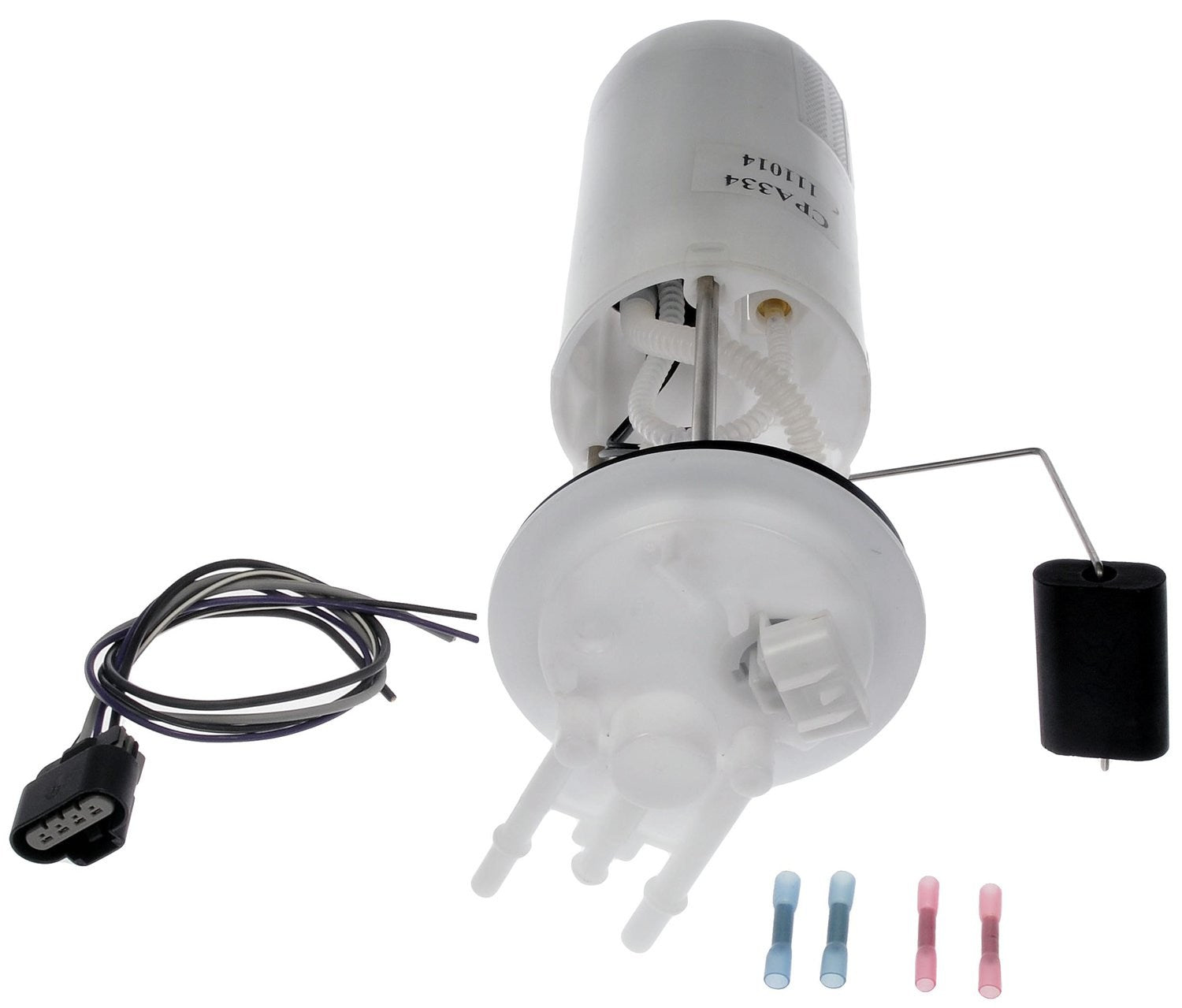

Dorman Fuel Pump, Electric, In-Tank, Sending Unit,

The Fuel Pump Module houses the fuel pump and sends fuel to the engine. The replacement restores drivability and proper engine functioning.

-Direct replacement for a proper fit every time

-Comes with lock ring and seal (where applicable)

-No special tools required for installation

-Fuel Tanks also available, sold separately

Application Summary: Chevrolet Tahoe 1997-96, GMC Yukon 1997-96

Product Specifications

• Connector Color: White
• Connector Gender: Male
• Connector Shape: Oval
• Height: 290 mm
• Housing Length: 168 mm
• Housing Material: Plastic (Polyoxymethylene)
• Housing Width: 92 mm
• Inlet Type: Jet
• Length: 170 mm
• Lock Ring Included: No
• Maximum Flow Rating: 180 LPH
• Maximum Pressure: 110 PSI
• Outlet Diameter: 3/8 In.; 5/16 In.
• Outlet Quantity: 2
• Outlet Type: Male Quick Connect
• Seal Included: Yes
• Terminal Gender: Male
• Terminal Quantity: 4
• Terminal Type: Spade
• Top Mount Diameter: 112.5 mm
• Universal Or Specific Fit: Specific
• Width: 156 mm
• Wire Gauge Measurement: 15 AWG; 17 AWG
• Wire Quantity: 4

Vehicle Fitments:
