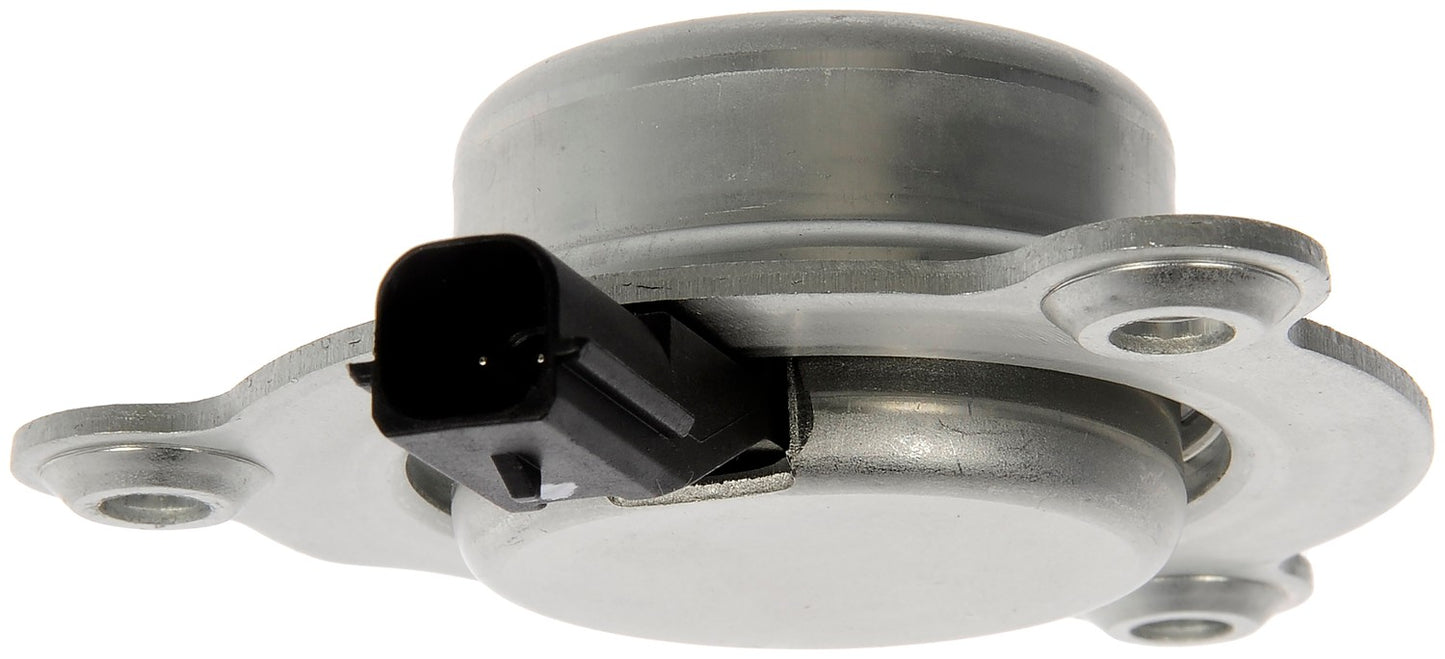

Dorman Vvt Solenoid

Application Summary: General Motors 2017-06, Isuzu 2016-08

The original VVT solenoids on certain vehicles fail in extreme conditions. This Dorman OE FIX replacement features multiple improvements, including a patented, upgraded copper core to eliminate internal movement and extend service life.

• Patented design - exclusive copper core users stronger center tube to eliminate internal movement and extend life cycle
• Improved performance - modified design includes additional passages to increase oil flow

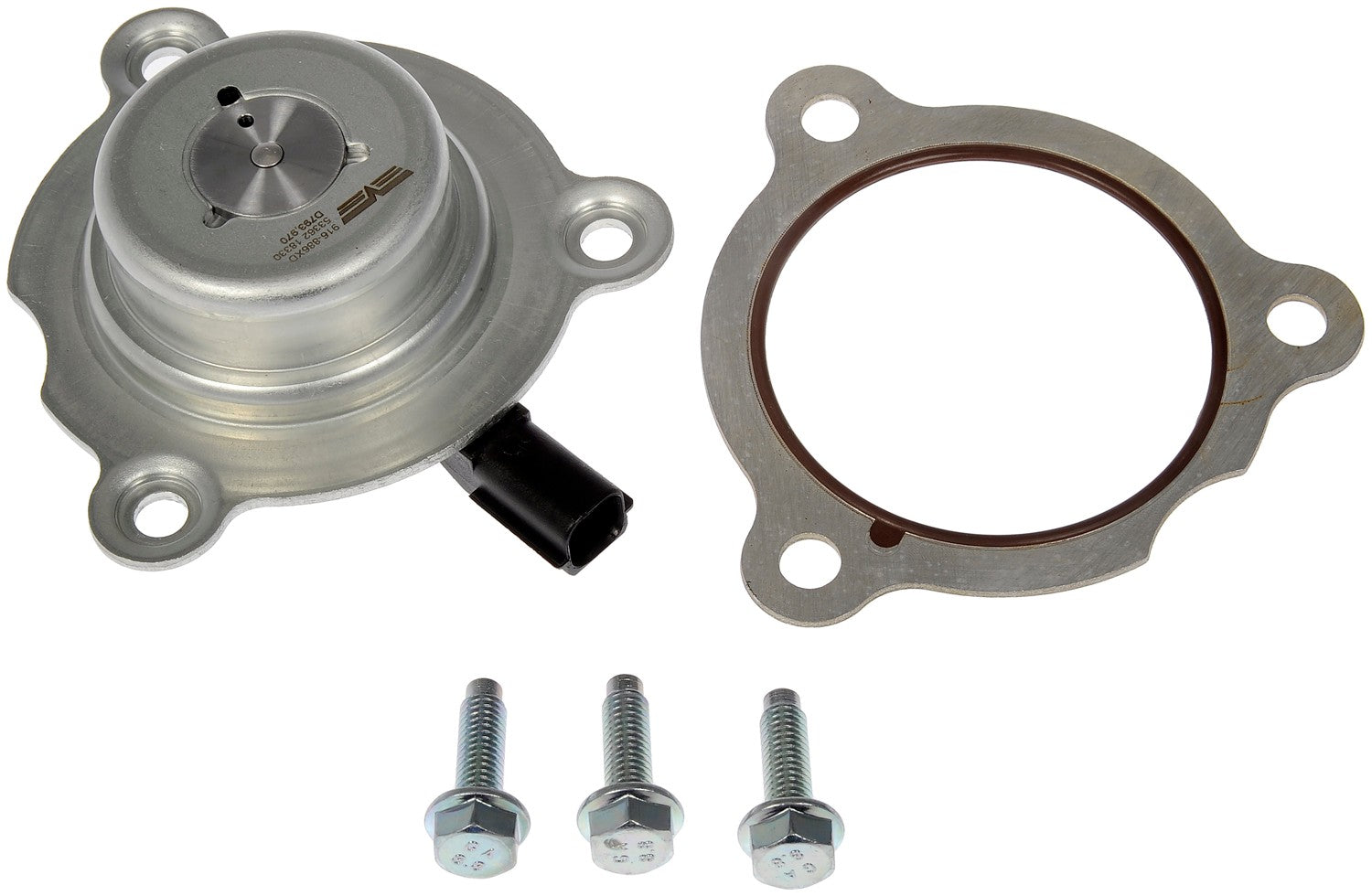

• Hardware included - comes with hard-to-find gasket and high-grade hardware for complete installation
• Application specific - made to directly replace the VVT on a wide range of General Motors and Isuzu vehicles

Product Specifications

• Color/Finish: Silver And Zinc-Plated
• Connector Color: Black
• Connector Shape: Square
• Electrical Connection Quantity: 1
• Electrical Connector Gender: Male
• Electrical Connector Terminal Quantity: 2
• Electrical Connector Terminal Type: Blade
• Electrical Connector Type: Plug and Socket
• Housing Length: 4 In.
• Housing Material: Metal
• Housing Width: 3.4 In.
• Item Grade: Standard Replacement
• Mount Hole Quantity: 3
• Overall Height (in): 1.37 In.
• Overall Length (In): 4 In.
• Overall Width (in): 3.4 In.
• Package Contents: 1 Engine Variable Timing Solenoid
• Package Quantity: 1
• Packaging Type: Box
• Plug/Connector Type: Plug and Socket
• Shaft Diameter (in): 0.155 In.
• Shaft Included: Yes
• Solenoid Activation Type: Electromagnetic
• Solenoid Finish: Silver
• Terminal Gender: Male
• Voltage: 12V
• Wire Quantity: 0
