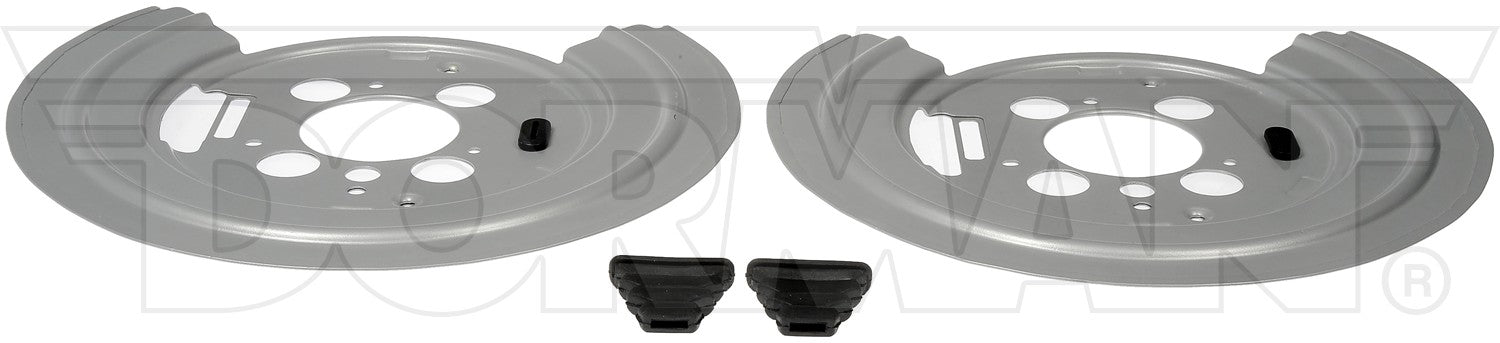

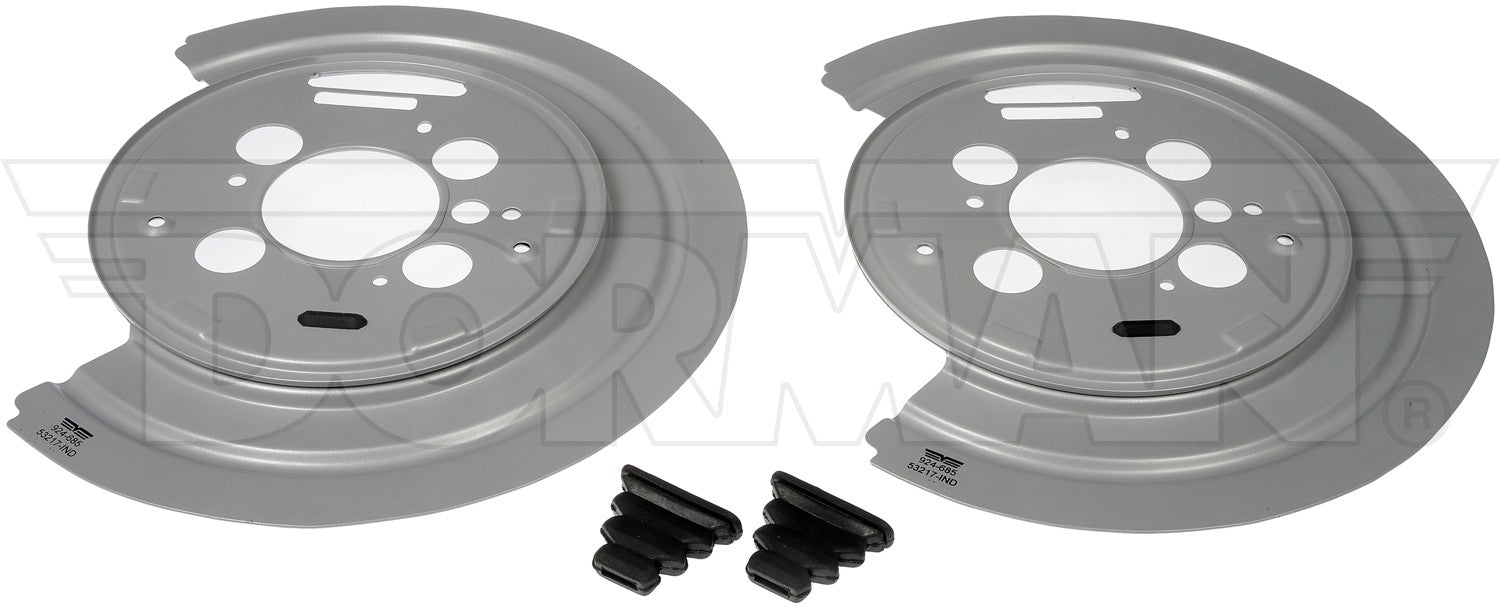

Dorman Brake Dust Shield - 1 Pair

Brake Dust Shield - 1 Pair

Application Summary: Chrysler Aspen 2009-07, Dodge Durango 2009-07, Dodge Ram 1500 2010-06, Ram 1500 2012-11

This brake backing plate provides structure for the other components in the braking system, while also helping to keep debris from entering. It is designed with a rust-resistant coating that counters harsh winter weather conditions and humidity.

• Effective replacement - designed to match the fit and function of the stock brake backing plate on specific vehicle applications
• Longer service life - corrosion-resistant steel construction protects brakes from elements and debris
• Ideal fix - directly replaces highly deterioration-prone original part
• Precision-engineered - has undergone dimensional verification and salt spray testing to ensure quality

Product Specifications

• Brake Type: Disc
• Color: Silver
• Configuration: One Piece
• Inside Diameter: 75 mm
• Lug Hole Quantity: 4
• Material: Steel
• Maximum Diameter: 224 mm
• Mount Hole Diameter: 29 mm
• Mount Hole Quantity: 4
• Mounting Hardware Included: No
• Package Contents: 2 Brake Backing Plates
• Packaging Type: Box
• Rust Resistant: Yes
• Selling Package Quantity UOM: Piece
• Shoe Anchor Stud Attached: No
• Thickness: 1 mm
• Wheel Cylinder Mount Hole Diameter: 29 mm
• Wheel Cylinder Mount Hole Quantity: 4
• Package Quantity: 2

Vehicle Fitments:
