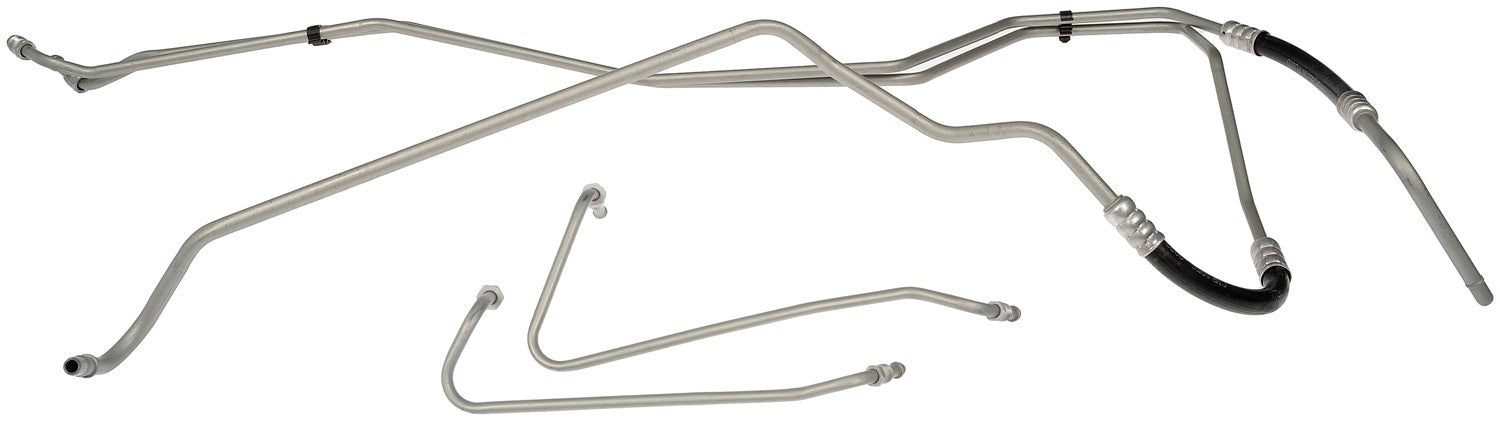

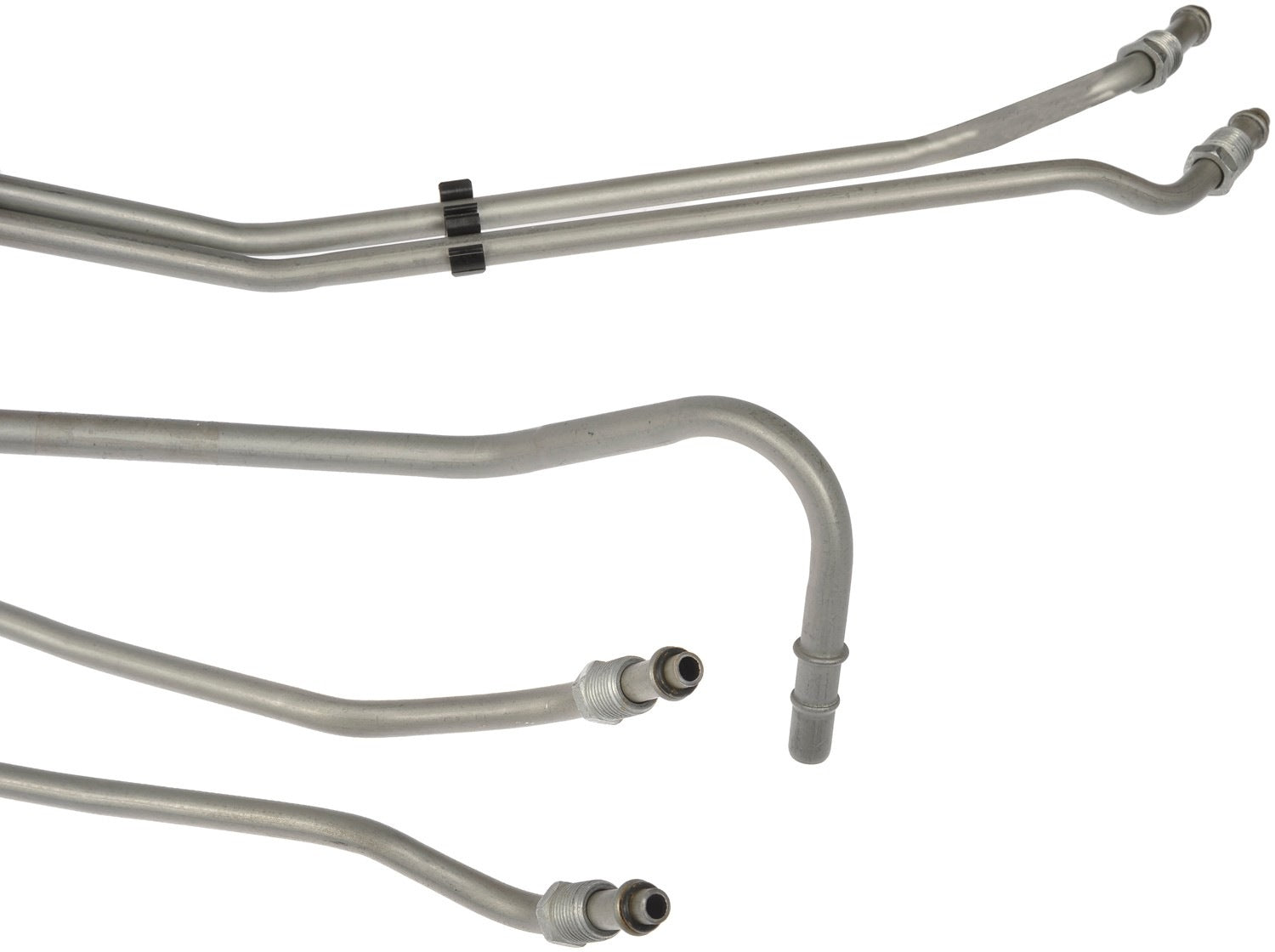

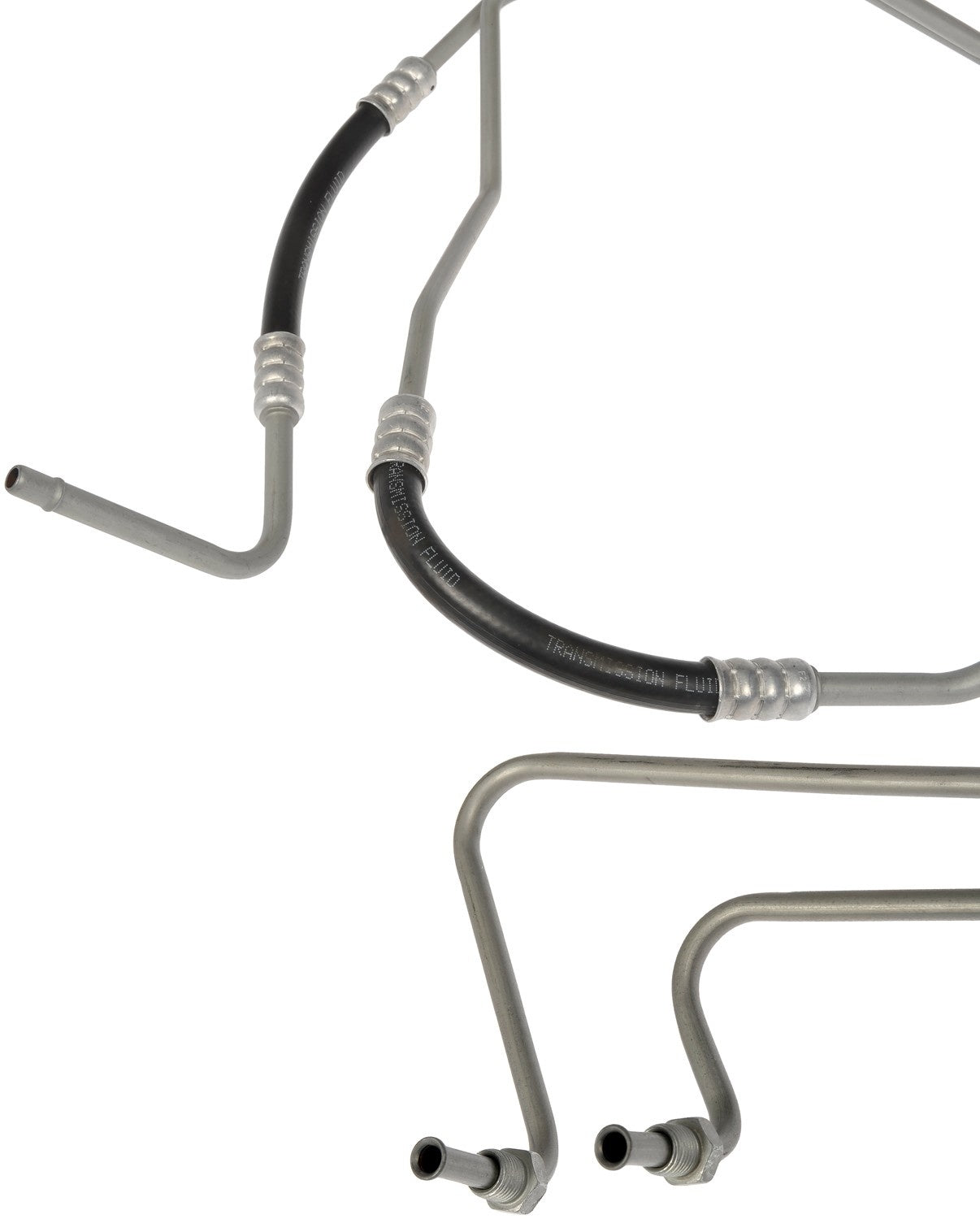

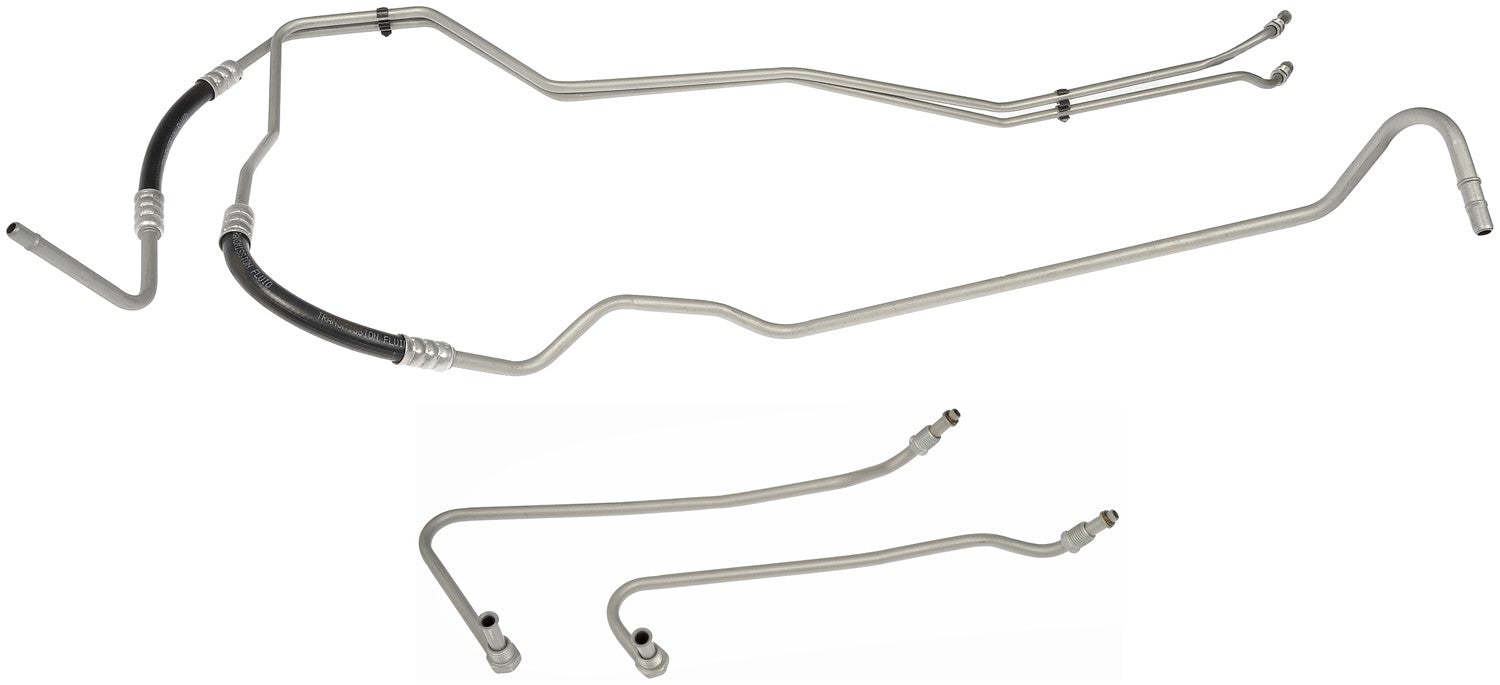

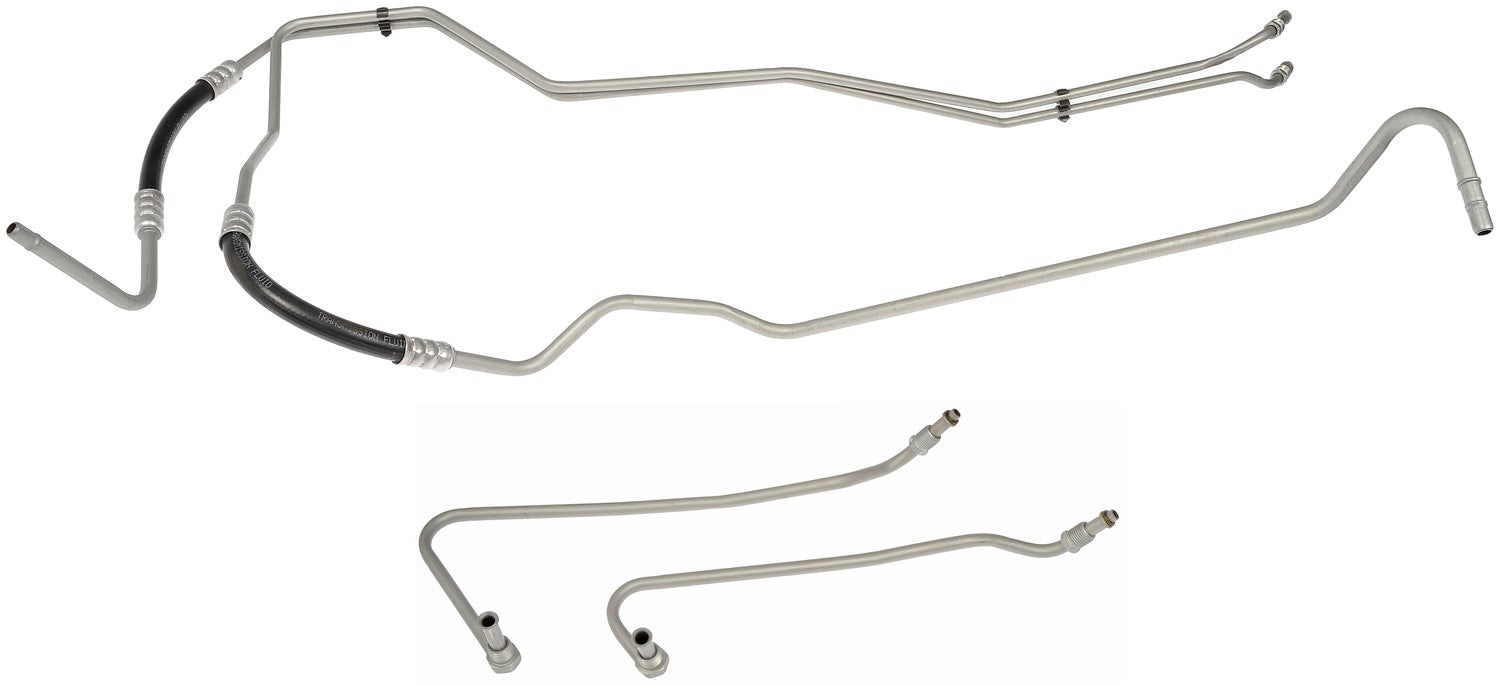

Dorman Transmission Oil Cooler Line

Transmission Oil Cooler Line

Application Summary: Ford F-150 2008-06, Ford F-250 2009-05, Ford Lobo 2008-06, Lincoln Mark LT 2008-06

This replacement automatic transmission oil cooler hose is constructed of quality metal and rubber components to ensure leak-free delivery of critical fluid between the transmission and the transmission oil cooler.

• Reliable replacement - this automatic transmission oil cooler hose is precision-engineered to replace the stock hose assembly on specific vehicles
• Quality construction - manufactured from metal and rubber with OE-style fittings to provide a reliable replacement
• Excellent value - OE quality at a lower price
• Vehicle tested - has undergone on-vehicle testing to ensure quality, proper fit and performance

Product Specifications

• Color/Finish: Coated
• Contains Spring: No
• End Inside Diameter: 7 mm
• Fitting Included: No
• Flexible: Yes
• Gasket or Seal Included: No
• Hose Attachment End 1: Quick Disconnect
• Hose Attachment End 2: Male Threads
• Hose Material: Metal and Rubber
• Hose Overall Length (In): 45 In.
• Hose Shape: Straight
• Hose/Line Maximum Pressure (psi): 1000 PSI
• Maximum Operating Temperature (°F): 302 Deg. F
• Minimum Operating Temperature (°F): -40 Deg. F
• Package Contents: 4 Transmission Lines; 6 Threaded End Connectors; 4 O-rings; 3 brackets
• Package Quantity: 1
• Packaging Type: Bag

Vehicle Fitments:
