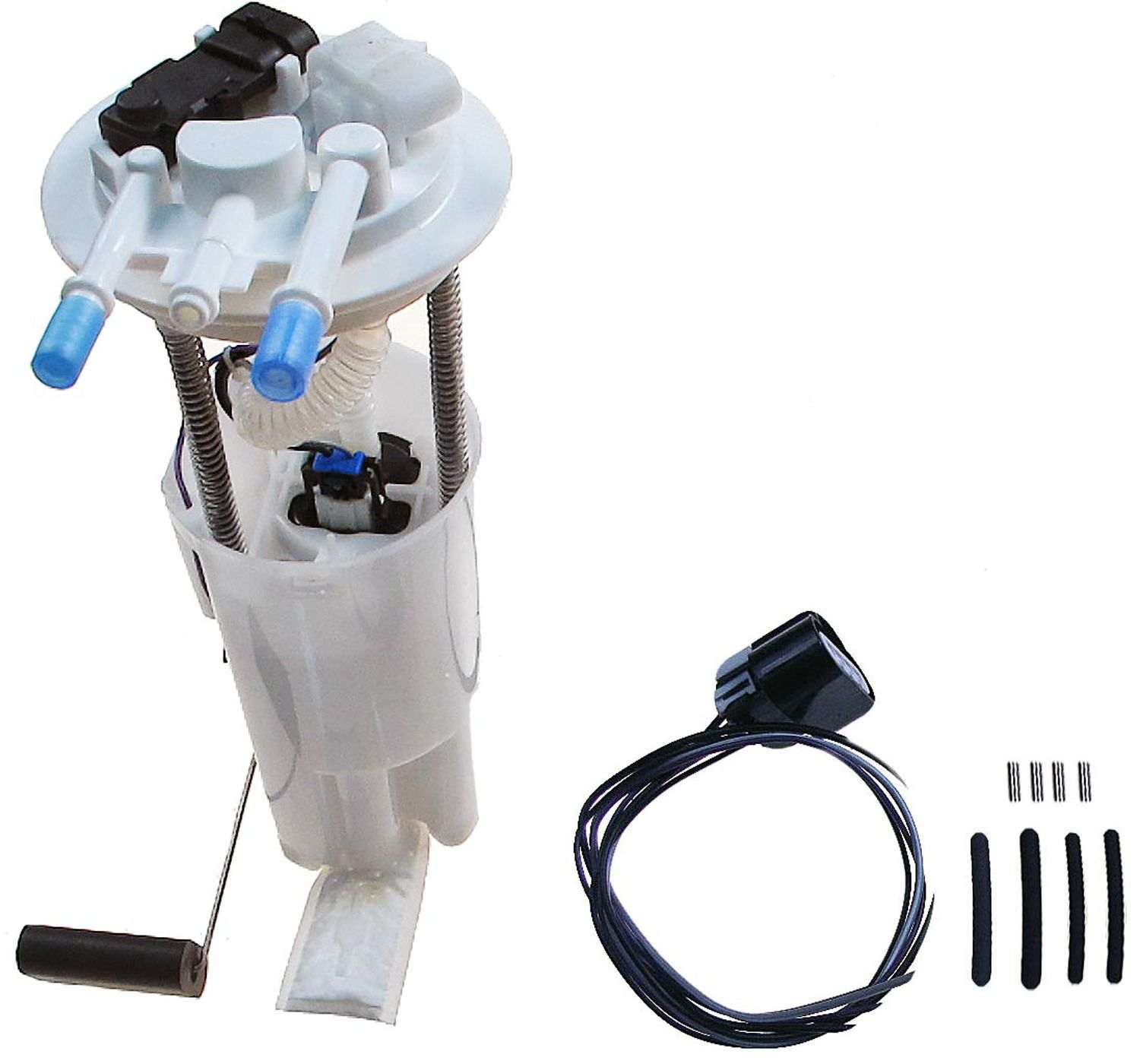

Dorman Fuel Pump Module

The Fuel Pump Module houses the fuel pump and sends fuel to the engine. The replacement restores drivability and proper engine functioning.

- Direct replacement for a proper fit every time

- Comes with lock ring and seal (where applicable)

- No special tools required for installation

- Fuel Tanks also available, sold separately

Application Summary: Chevrolet Venture 2003-01, Oldsmobile Silhouette 2003-01, Pontiac Montana 2003-01

Product Specifications

• Connector Color: White
• Connector Gender: Female
• Connector Shape: Flat Plug
• Height: 210 mm
• Housing Length: 174 mm
• Housing Material: Plastic (Polyoxymethylene)
• Housing Width: 94 mm
• Inlet Diameter: 7.89 mm
• Inlet Type: Male
• Length: 19.5 mm
• Lock Ring Included: No
• Maximum Flow Rating: 117 LPH
• Maximum Pressure: 0.8 MPA
• Outlet Diameter: 9.49 mm
• Outlet Quantity: 1
• Outlet Type: Male
• Seal Included: Yes
• Terminal Gender: Male Female
• Terminal Quantity: 4
• Terminal Type: Spade
• Top Mount Diameter: 6.35 mm
• Universal Or Specific Fit: Specific
• Width: 6.35 mm
• Wire Gauge Measurement: 1.5 AWG
• Wire Quantity: 4

Vehicle Fitments:
