Mishimoto 15-17 Ford F-150 2.7L Eco Boost Black Performance Intercooler Kit
Mishimoto has developed a direct-fit 2015-2017 2.7L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150.
Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCoreT technology. The 38% larger volume of our pipes allows your 2015-2017 2.7L F-150 EcoBoost to breathe free and make the most of its two turbochargers. DuraCoreT boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.
- Direct fit for 2015-2017 Ford F-150 2.7L EcoBoost
- 38% increase in total internal volume over the stock pipes
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Includes Mishimoto Silicone Boots with DuraCoreT technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77% increase in internal intercooler core volume
- 163% increase in external fin surface area
- All-aluminum, TIG-welded construction
Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

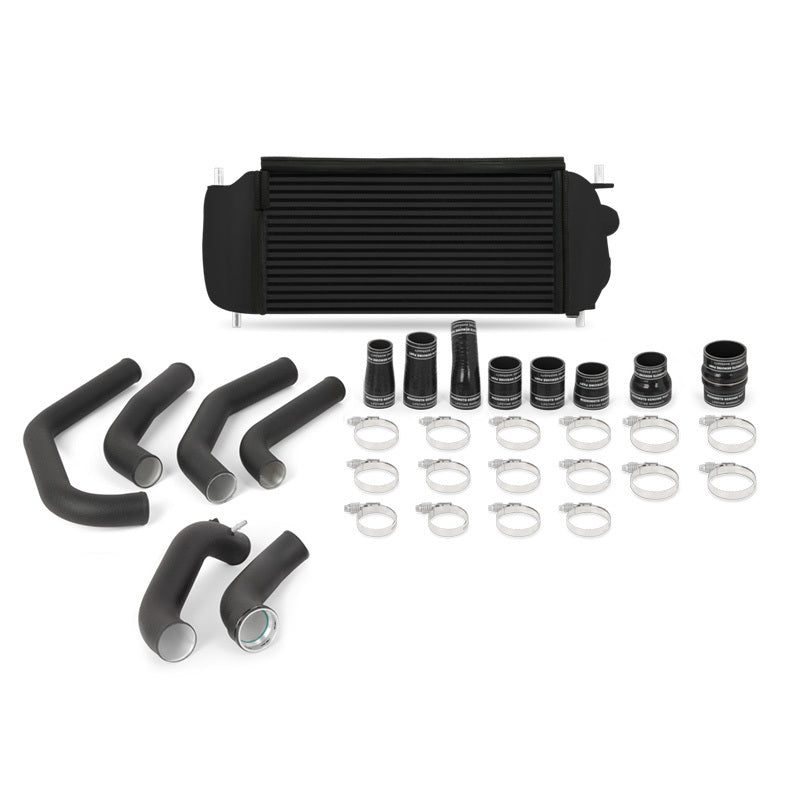

Purchase Includes
(1) Mishimoto Intercooler w/ Assembled Rubber Trim
(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange
(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing
(4) Aluminum Intercooler Pipes
(8) Silicone Boots w/ DuraCoreT Technology
(2) High Torque Worm Gear Clamps
(14) Constant Tension T-Bolt Clamps
Mounting Hardware
Mishimoto Lifetime Warranty
Engine Codes 2.7L EcoBoost
Chassis Codes P552
Fits 2015-2017 Ford F-150 2.7L EcoBoost
Coating Powder Coated
Tank Wall Thickness 0.157"
Max Rec. PSI 50 psi
Outlet 3.0"
Inlet 2.5"
Core Size 20"L x 5"T x 9.5"H
Overall Width 7"
Overall Height 9.5"
Overall Length 29"
Construction Bar-and-Plate
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 - 2017 | Ford | F-150 | Limited, SSV |
| 2017 | Ford | F-150 | Raptor |
| 2015 - 2017 | Ford | F-150 | XL, Platinum, Lariat, XLT, King Ranch |
