GReddy Authorized Dealer

GReddy Oil Cooler Filter Block Adapter Type-I - Remote Filter ( & Optional Bypass Tube )  Optional -10AN Bypass Tube for Type I Oil Block 12009990

GReddy Oil Cooler Filter Block Adapter Type-I - Remote Filter ( & Optional Bypass Tube )

sku: 8Q1KH | mpn: 12009990
$30.00
$30.00
Sale Sold out
Shipping calculated at checkout.
Filter Size, Optional Bypass

Low stock: 7 left

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
12401114

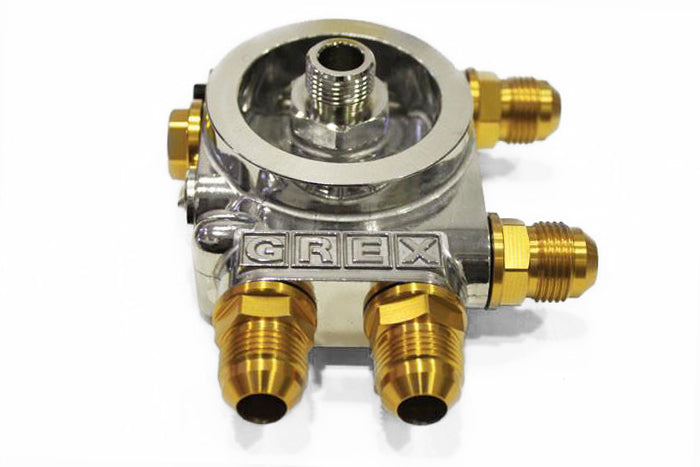

   Universal Remote Oil Filter Oil Block (Type I) AN10  for 3/4x16UNF Filter

12401182

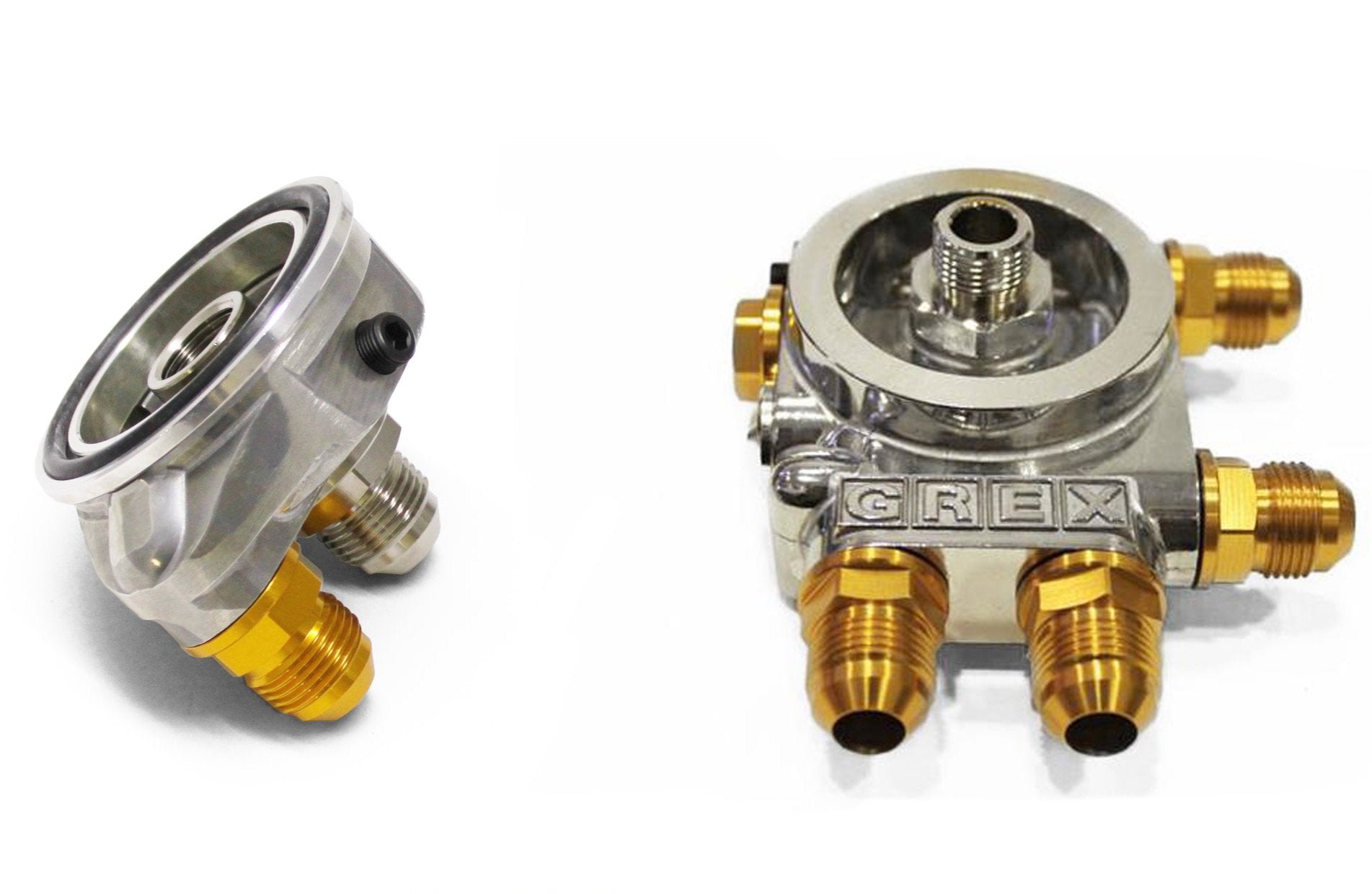

   Universal Remote Oil Filter Oil Block (Type I) AN10  for M20xP1.5 Filter

12009990

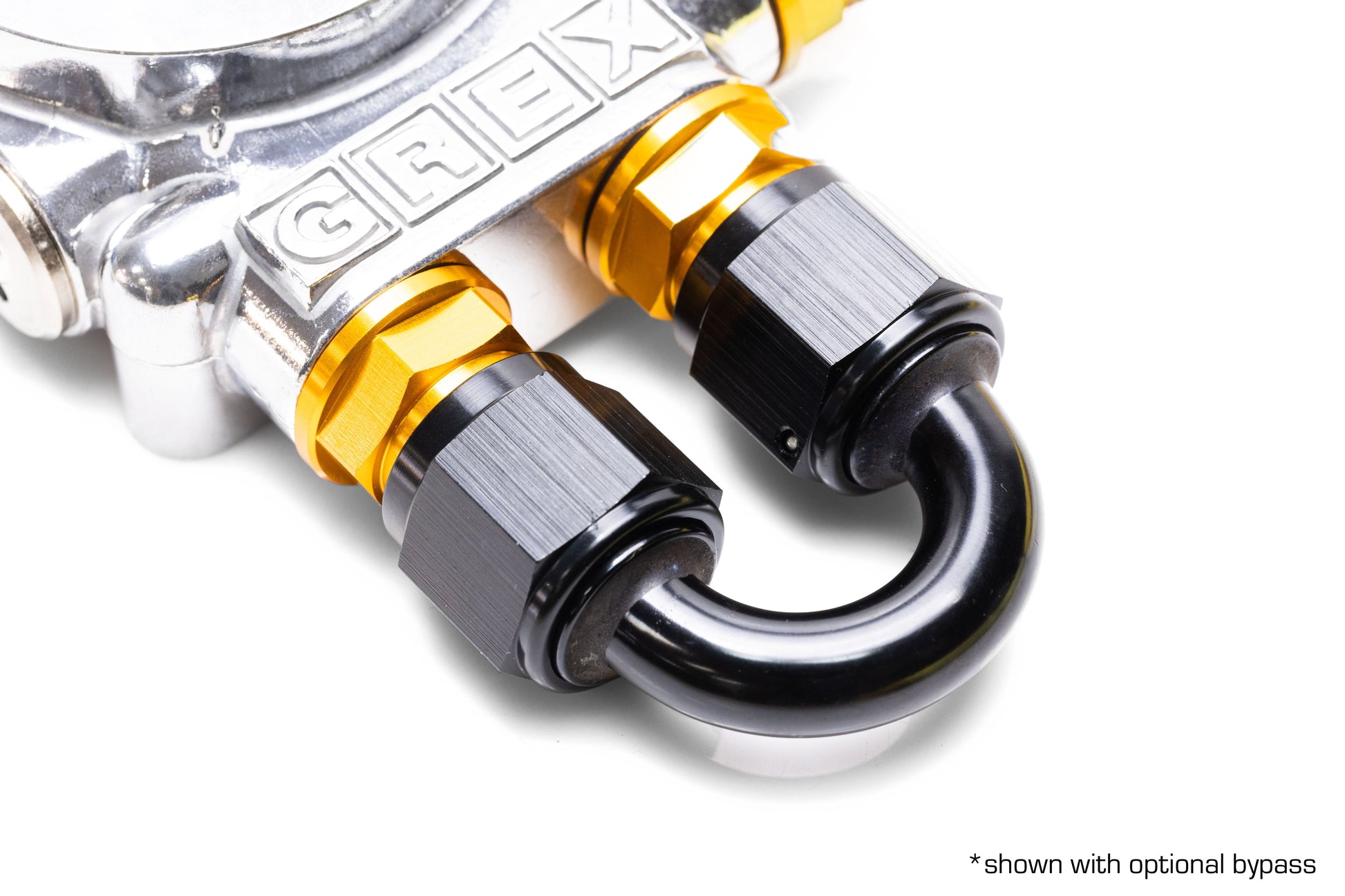

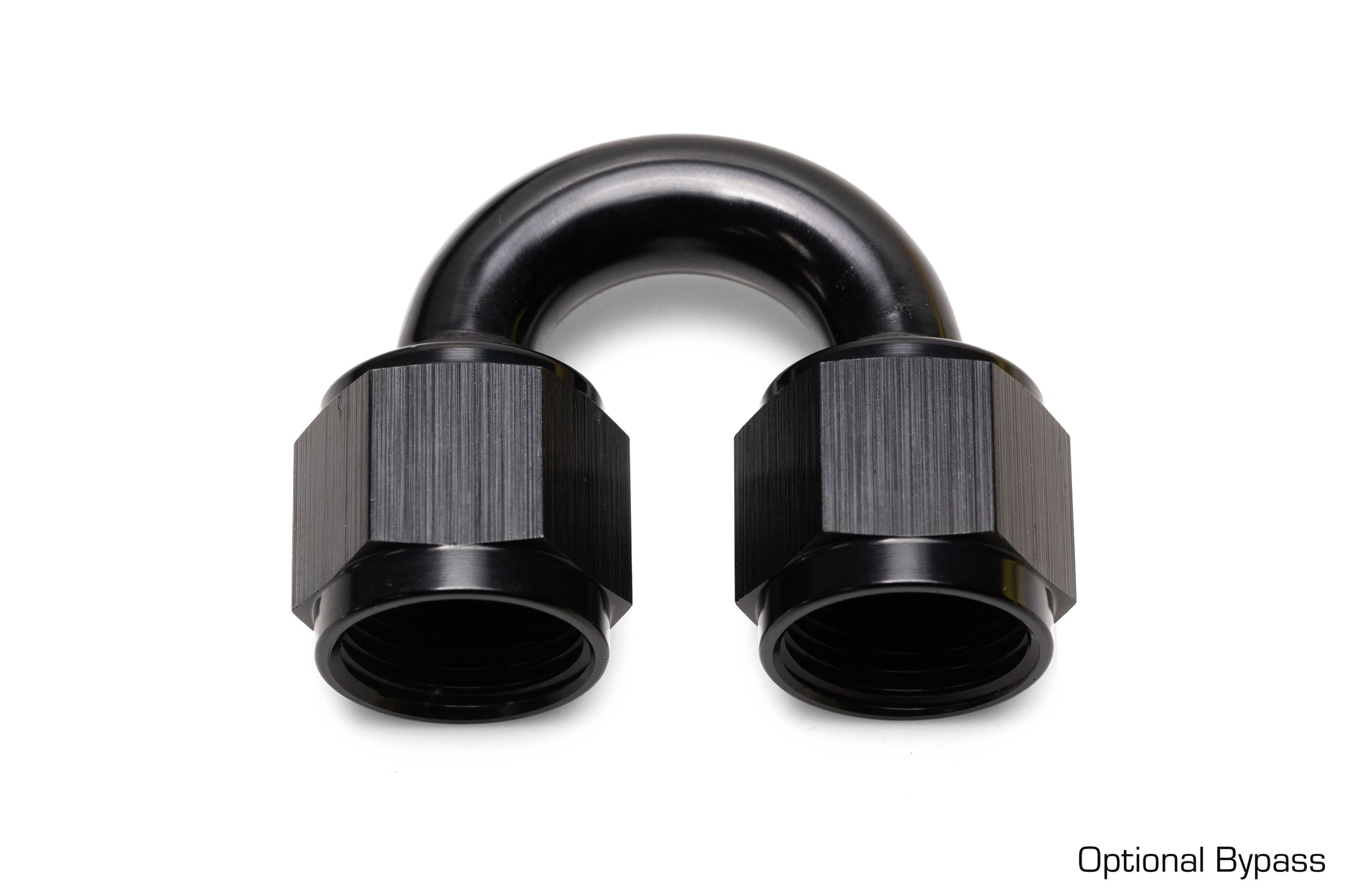

   *optional -10AN bypass tube (if no oil cooler is used, the inlet and outlet ports must be looped back)

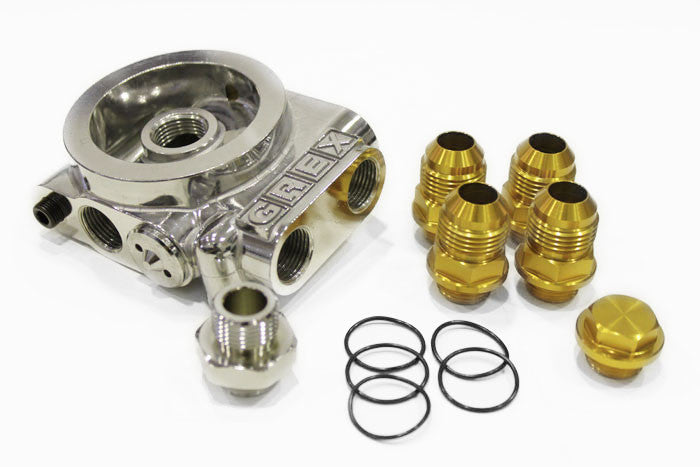

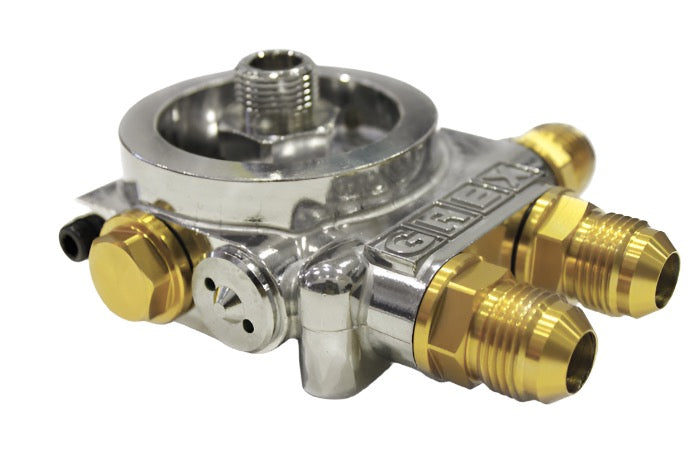

GReddy Universal Remote Oil Filter Oil Block Type I with AN -10 Fittings.  With built-in GReddy Thermostat. (70-80 C) for 3/4x16UNF filters

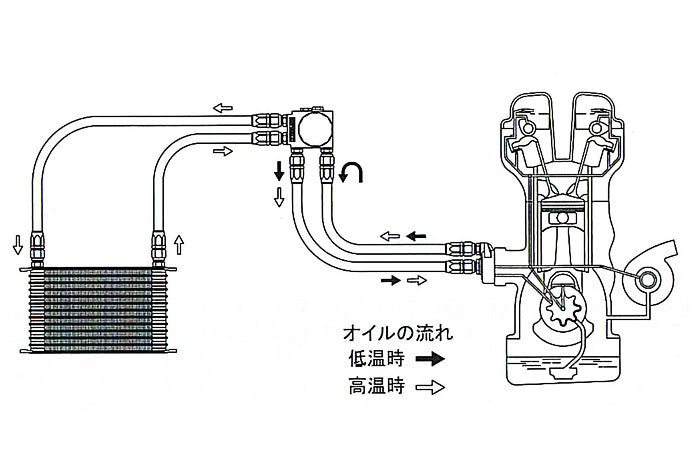

*Ideal for custom Oil Cooler Kits with oil filter relocation.

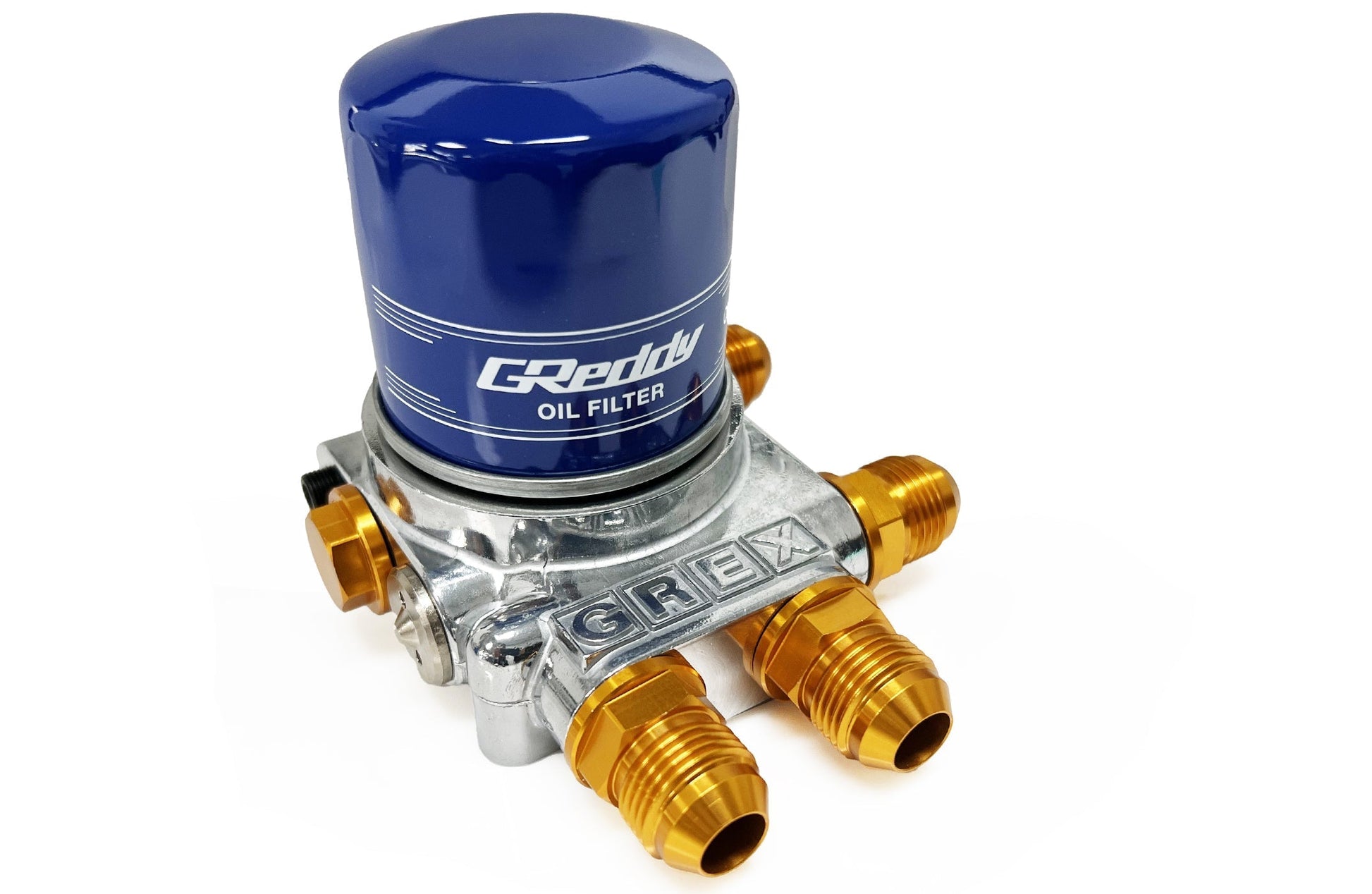

* Must use GReddy Sized Oil Filters : QX-01 P/N 13901101 or QX-03 P/N 13901103 (3/4"x16UNF) or AE86 - 4AG sized Oil Filter.

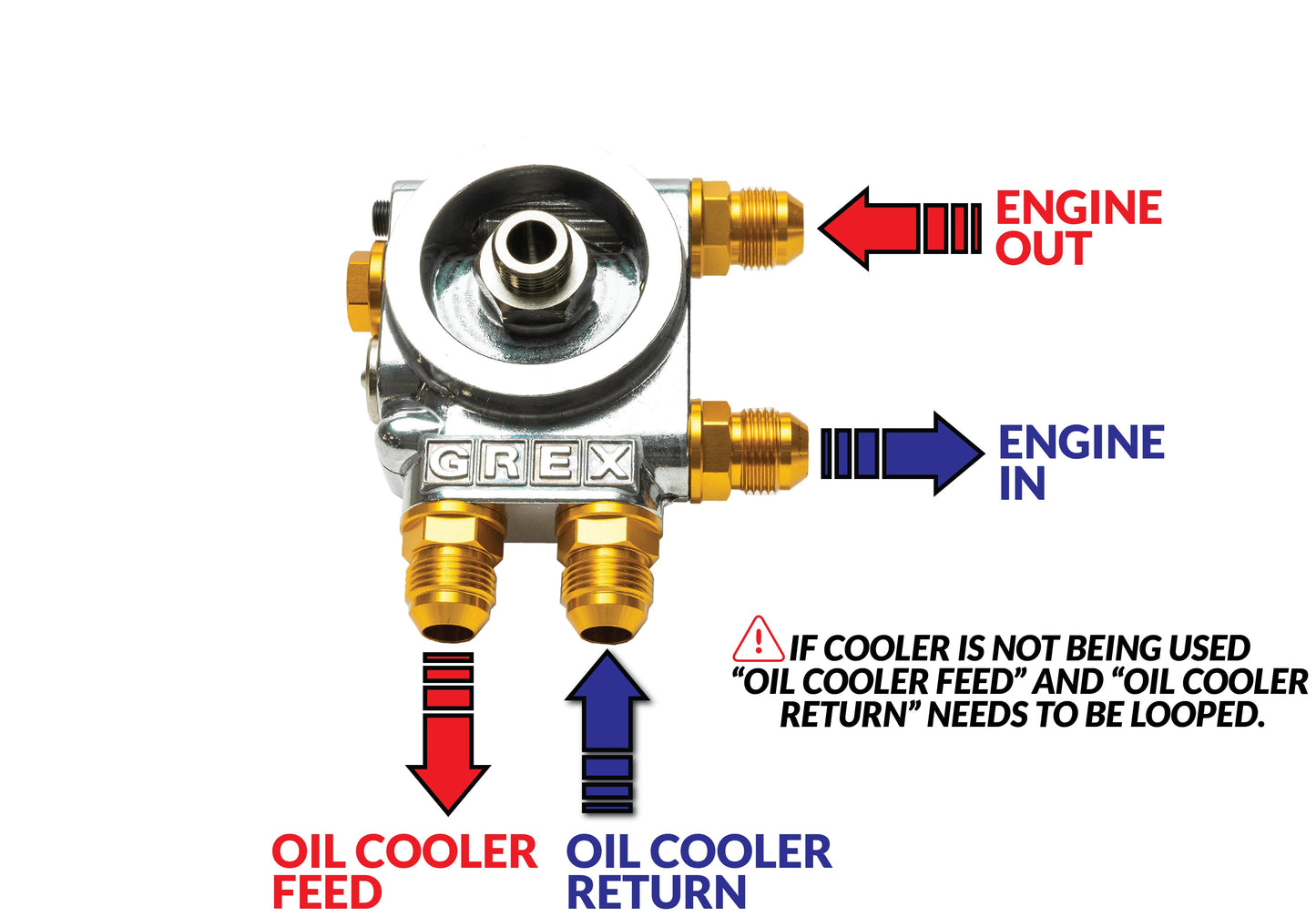

  ** IMPORTANT! - 12009990 - *optional -10AN bypass tube (if no oil cooler is used)
                                                 Oil outlet and inlet for the oil cooler must be looped back.



 - Ideally to used with -10 AN Oil Block Adapter to engine without thermostat :
   Type- B: M20 x P1.5 - P/N 12401129 or 3/4 x 16UNF - P/N 12401111 (sold separately) or
Type-F: M20 x P1.5 - P/N 12401131 or 3/4 x 16UNF - P/N 12401135 (sold separately)

Use P/N 16400721 for 1/8PT ports to use with Pressure & Temperature Sensors

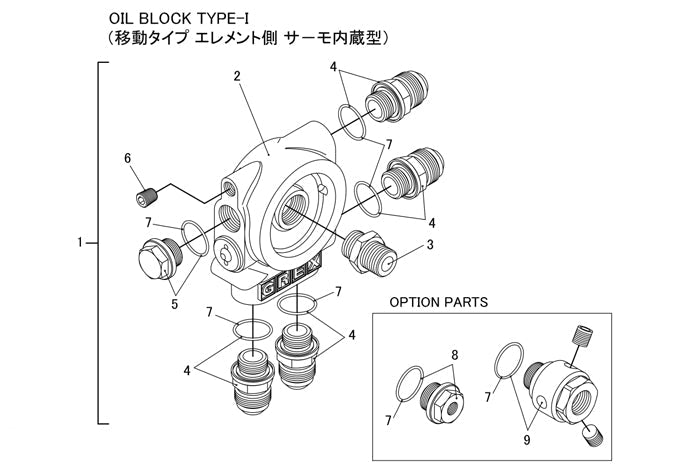

Replacement Parts for Type-I Oil Block (HERE)
