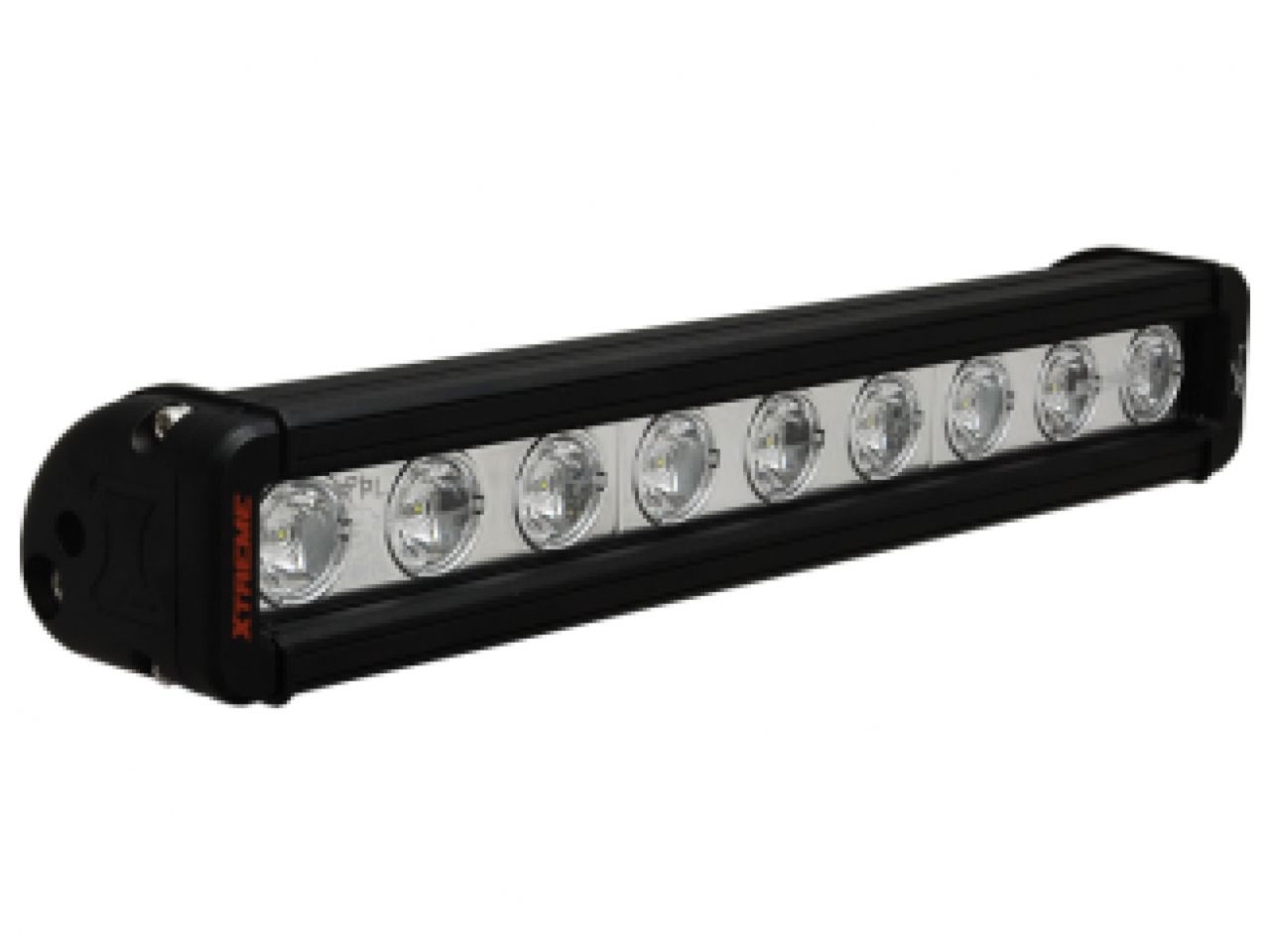

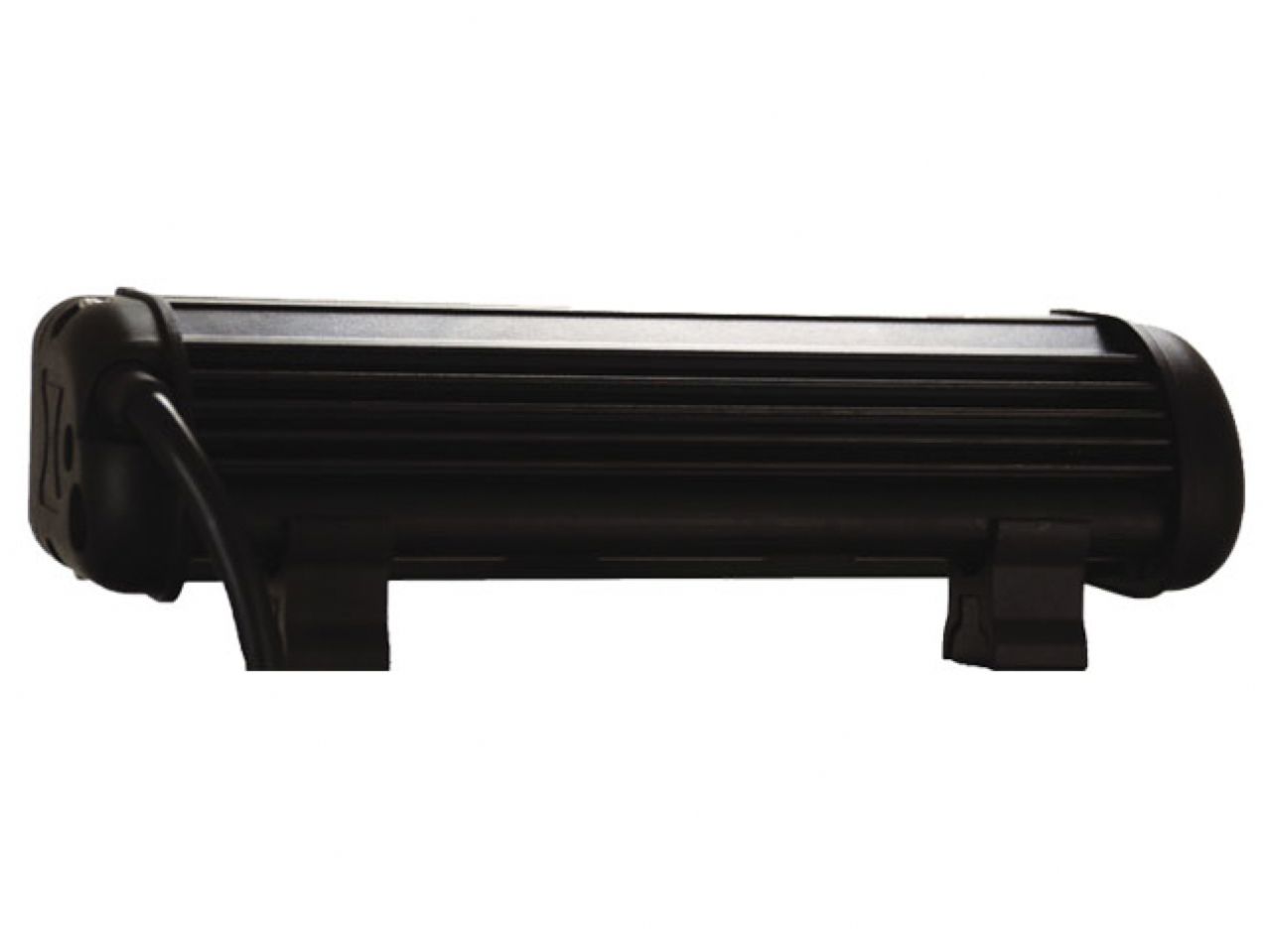

Vision X 12' Low Pro Xtreme

SKU: 1KX9B | MPN:  4000773
Sale price$200.46 USD
Sold out

About the Xmitter Low Pro Xtreme
The Low Profile Prime XP is compact with a height of only 2.06″ for a universal fit with double the light output of the 3 watt Low Profile Bar. The Low Profile Prime XP Series also makes use of Prime Drive Technology which manages heat levels to prolong the life of the LEDs.

Electronic Thermal Management
ETM monitors the heat output of the LEDs and makes use of integrated Pulse Width Modulation circuitry in order to maintain safe operating temperatures in order to prolong the LED life span to its full 50,000 hour potential.

Pulse Width Modulation
The Low Profile Xmitter Xtreme utilizes integrated Pulse Width Modulation (PWM) dimming circuitry to manage heat levels. PWM works by flashing the LED at a frequency faster than the human eye can detect, reducing the time that the LED is operating while still delivering 100% light output.

Features

  • Integrated Electronic Thermal Management (ETM)
  • New Generation LED is Driven to 90% Efficiency
  • PWM Integrated Dimming Circuitry


Specification

  • BEAM: 10°
  • LENGTH: 12.21″
  • # OF LIGHTS: 9
  • RAW LUMENS: 4,752 lm
  • EFFECTIVE LUMENS: 3,330 lm
  • WEIGHT: 6.61 lb
  • INPUT VOLTS: 9-32V
  • WATTS: 45
  • AMP DRAW: 3.7A
