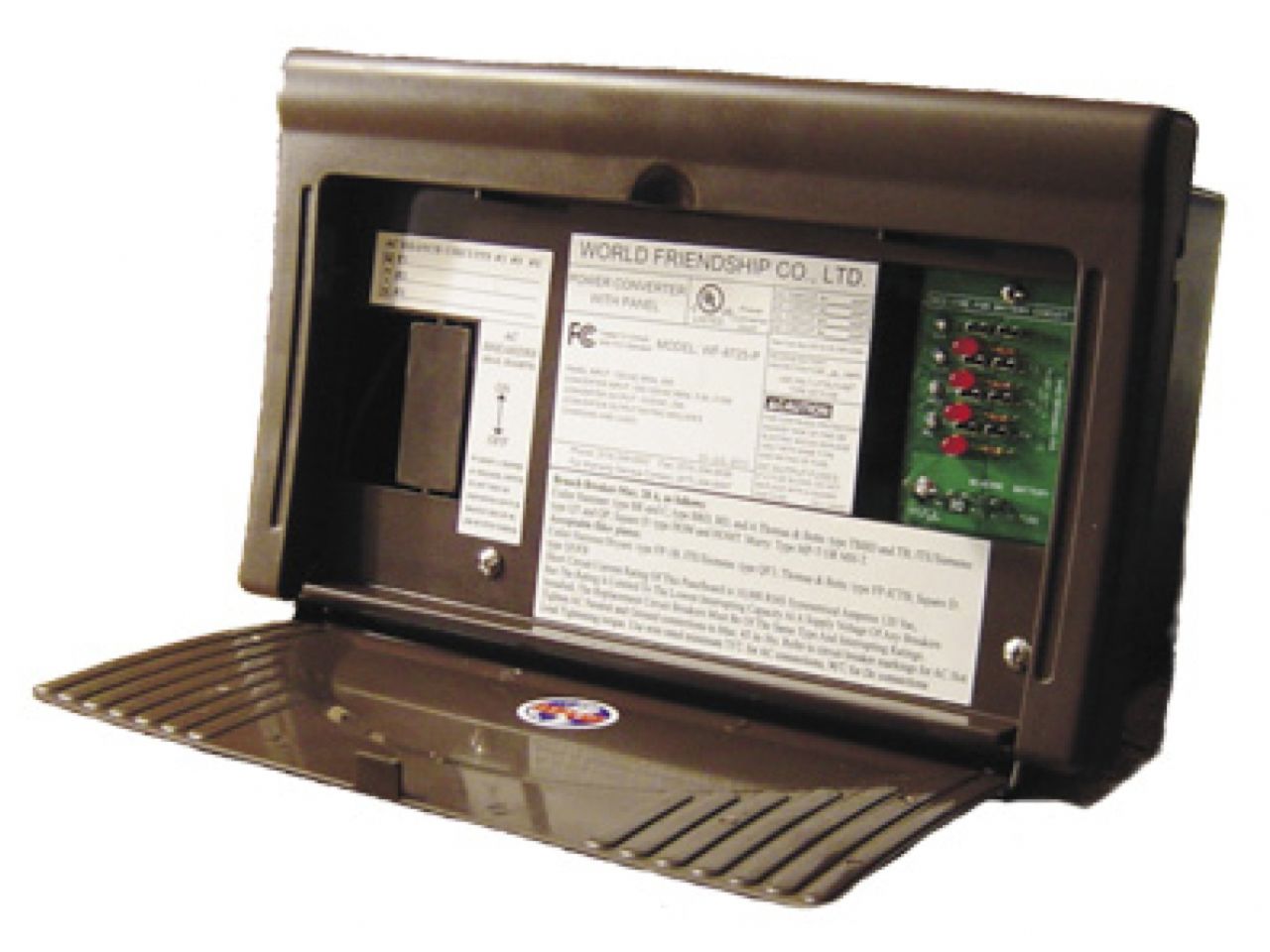

Arterra Dist 12 Amp Power Center, Brown

WF-8712 model converters provide 12 Amp DC output, and a highly reliable nominal 13.6 VDC with or without a battery. No extra filtering is required.

WFCO's three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 VDC range "float" mode, 13.6 VDC range "absorption" charge mode, and a 14.4 VDC range "bulk" charge mode. Short-circuit and reverse polarity protection provides you with further reliability and peace of mind.

Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30 Amp main AC breaker and a total of up to three 20 Amp branch AC circuits can be installed. DC circuits include LED lights that illuminate to indicate open circuits.

SPECIFICATION

Output Power
210 W

Input Voltage/Hz
105-130 VAC, 60 Hz

Converter Type
Three-Stage Converter Charger

Output Current
12 A

Voltage Output
13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)

AC Circuits (twin breakers)
4 (Main and 3 branch circuits)

DC Circuits (Quantity)
4 (one battery circuit)

Case Material
Plastic

Case Color
Brown

Over Current
Yes

Over Temperature
Yes

Over Voltage
Yes

Reverse Polarity
Yes

Cooling System
No

Dimensions
10 7/16? x 6 1/8? x 3 3/4?

Weight
4.75 lbs.

Certifications
FCC Class B compliant
