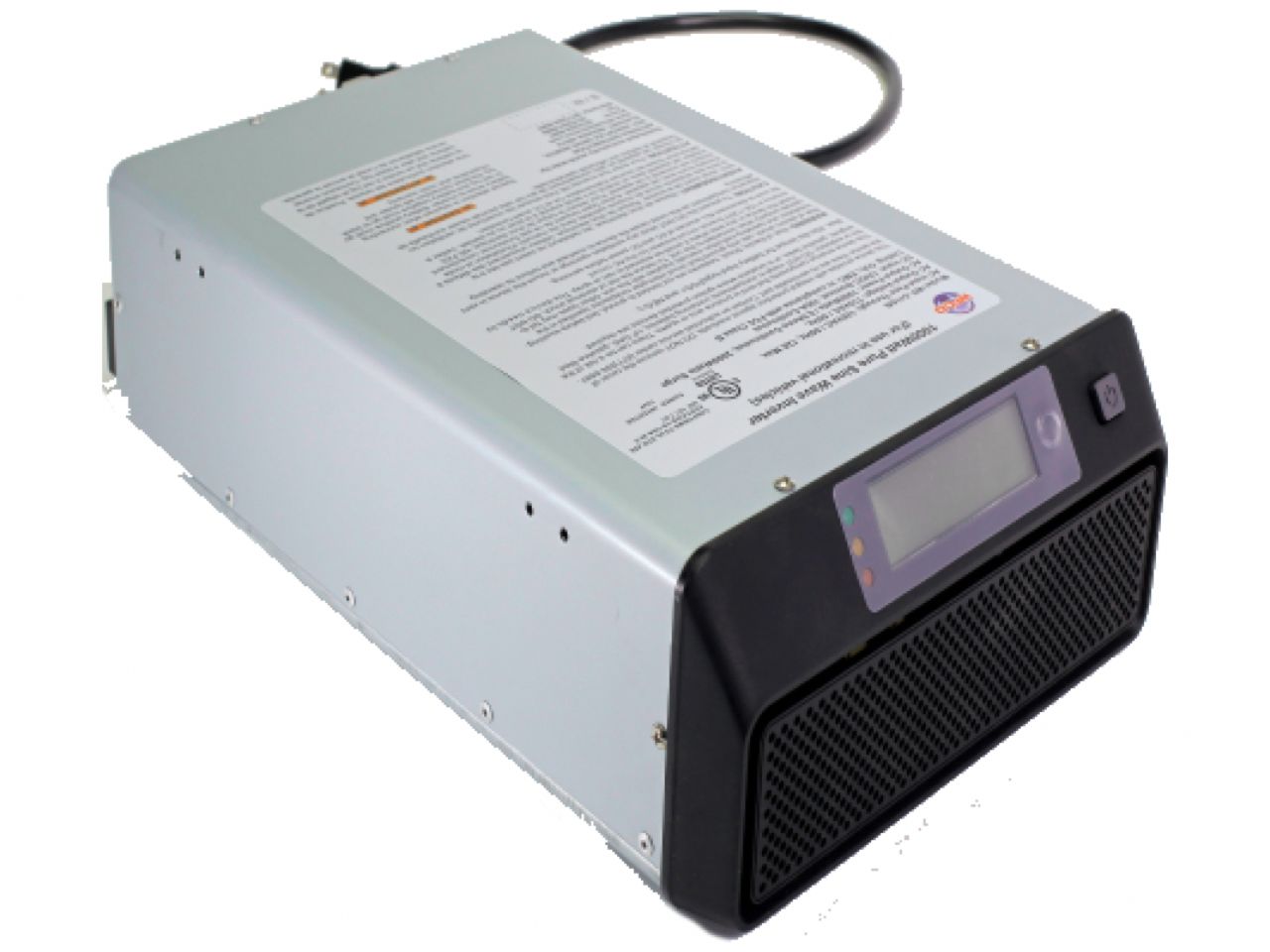

Arterra Dist 1000 Watt Power Inverter; Replacement To WF-5110HP

WFCO's 1000 watt WF-5110R inverter delivers outstanding performance for multiple, lower power appliances. Featuring automatically resettable Reverse Polarity protection, the WF-5110R
is protected from permanent damage should a battery be connected backwards. Once the battery connections are corrected, the unit will operate normally. The WF-5110R also has an exclusive internal transfer system which automatically allows the AC input to bypass the inverter when the inverter is connected to an AC power source.

Additionally, the WF-5110R provides high-efficiency power at full-load conditions with safeguards that include overload protection, over-temperature protection, and short-circuit protection. The cooling fan enhances efficiency as its operation is controlled by the amount of load incurred by the inverter. FCC Class B compliance, which means that the inverter is designed not to cause interference with televisions, radios, or other signals.

SPECIFICATION

DC Input Voltage
12V DC

DC Input Voltage Regluation
10-15V DC

Output Voltage Frequency
120 VAC/60Hz +/- 0.05%

Output Waveform
Pure Sine Wave (THD <3%)

Efficiency (full load)
>86%

Continuous Output Power
1000 W

Status Indicator Lights
Greed LED: AC Input Status, Red LED: Inverter Failure, Yellow LED: Battery Back Up Status

Transfer Switch
10 A

Transfer Time
<50 milliseconds

AC Output Fuse
12 A

Protection Features
AC Output Fuse, GFCI, Over Temperature, Over/Under Input Voltage, Overload, Reverse Polarity (fuse), Short Circuit

Operating Temperature Range
32-104ºF

Storage Temperature Range
-25.6-158ºF

Cooling
Load Controlled Cooling Fan

Output Wiring
Hard Wired

Certifications
FCC Class B compliant

Listed
UL 458

Dimensions
11 1/8?W x 4?H x 14 3/4?D

Weight
11.5 lbs.
