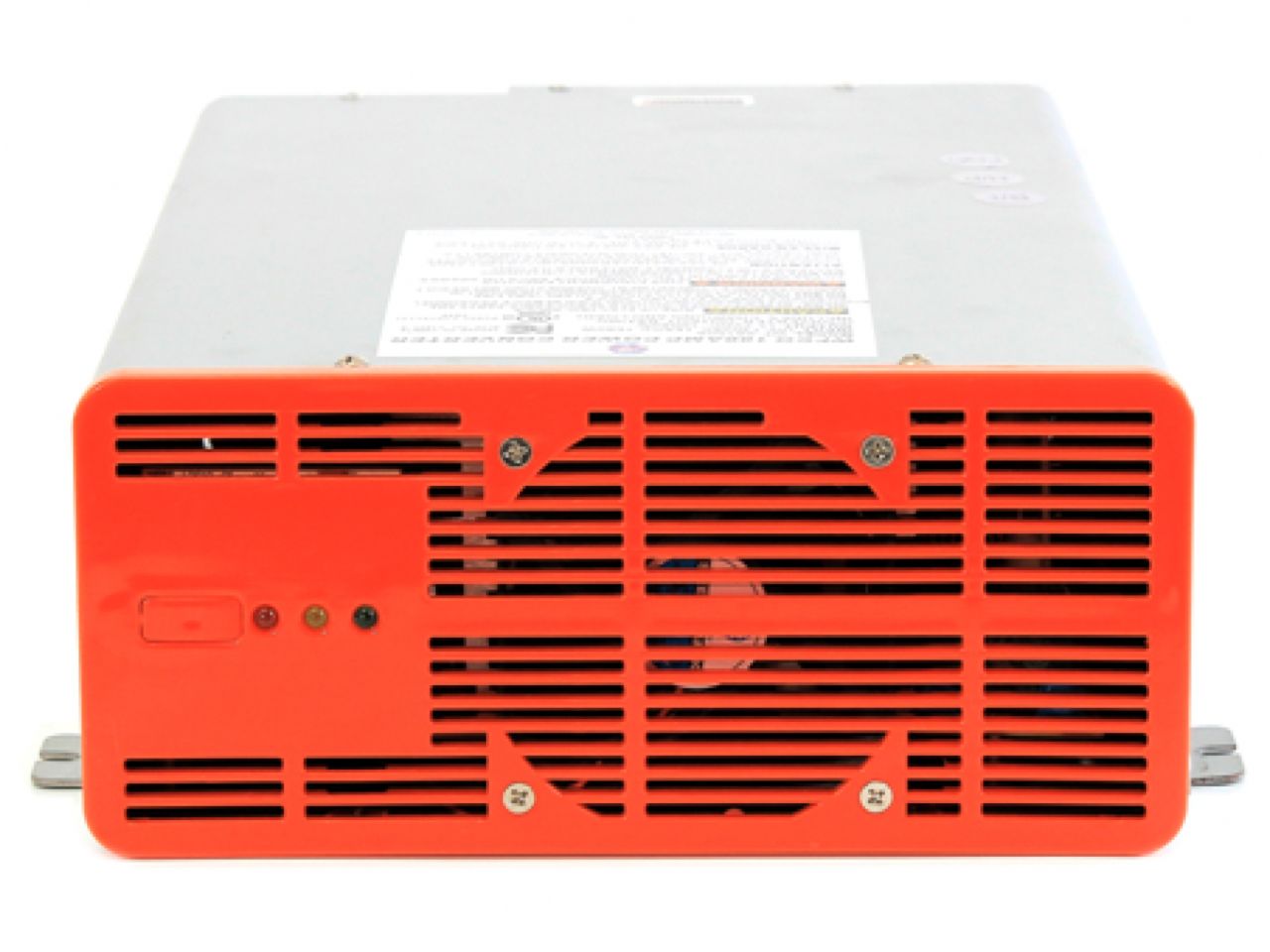

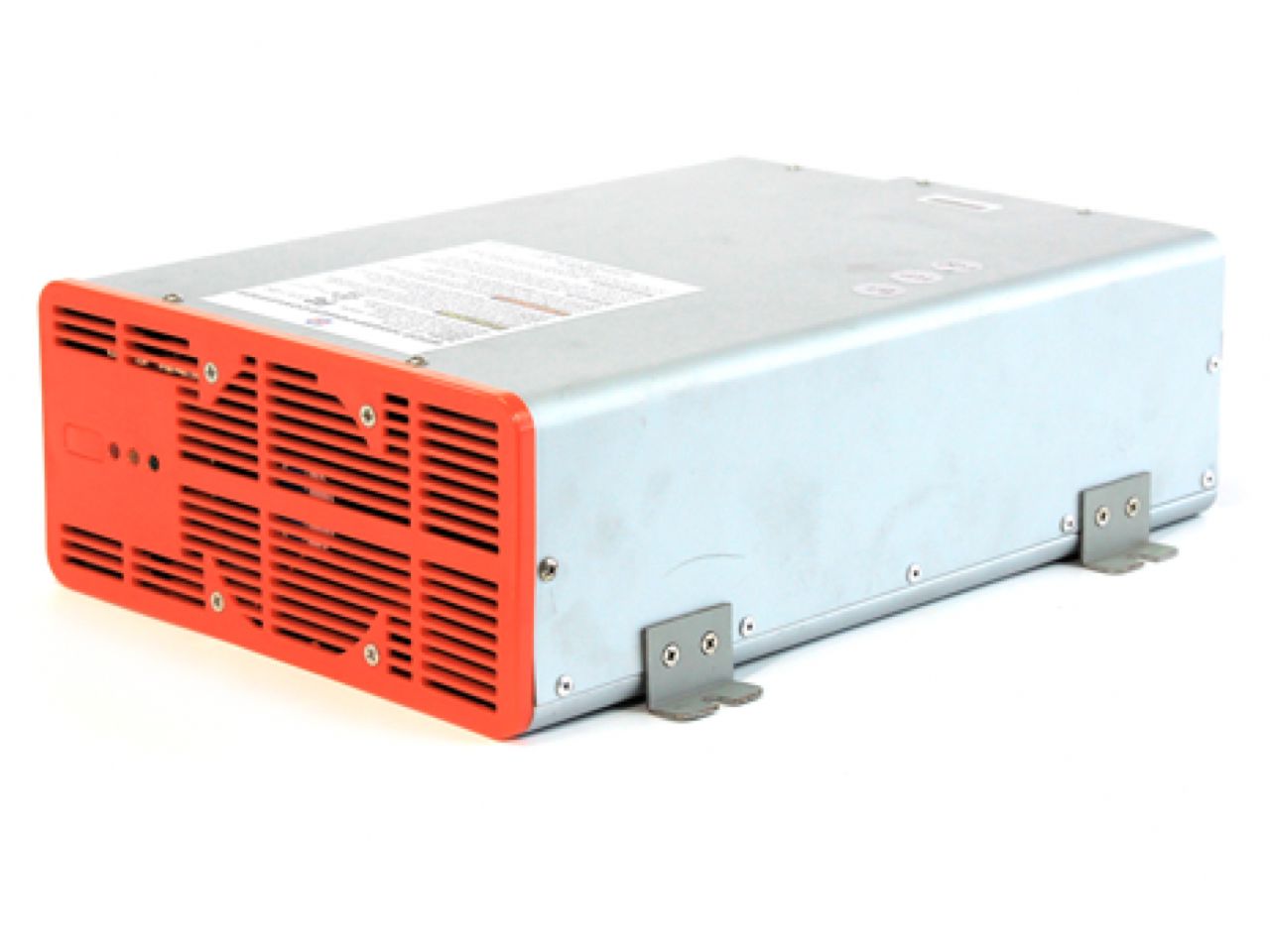

Arterra Dist 100 Amp Power Converter

The WF-6800 Series converter/chargers are versatile, advanced power source solutions. The output rating of 100 Amps provides clean, reliable DC power and is ideal for powering electronics and appliances. The 6800 Series is designed to provide clean power with or without a battery. Quiet operation is part of the design as the cooling fan runs only when needed. Another advantage is FCC Class B compliance, which means that the converters are designed not to cause interference with televisions, radios, or other signals.

Battery type selection between AGM/Lead Acid and Gel-Cell type of batteries ensures longer battery life and smoother converter operation. Electronic current limiting automatically shuts down power during overload or short-circuit conditions. A status LED system on the front of the converter monitors converter operation, as well as provides indication of low battery state of charge.

SPECIFICATION

Output Power
1710 W

Input Voltage/Hz
105-130 VAC, 60 Hz

Dimensions
9.9" wide; 3.9" high; 13.36" deep

Weight
10.25 lbs

Output Current
100 A

Power Factor Correction
Unity (0.99)

Converter Type
Three-Stage Converter Charger

Voltage Output
13.2 - 14.4V DC Range

Battery Adaptability
AGM, Gell Cell, Lead Acid

Manual Bulk Charge
Yes

Over Temperature
Yes

Over Voltage
Yes

Reverse Polarity
Yes

Short Circuit
Yes

Cooling System
Yes

Status Indicator Lights
Yes

Certifications
FCC

Over Current
Yes

Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)
