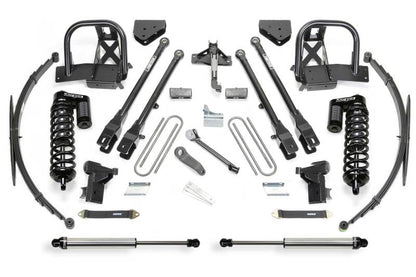

Fabtech 10" 4 Link System w/Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shock

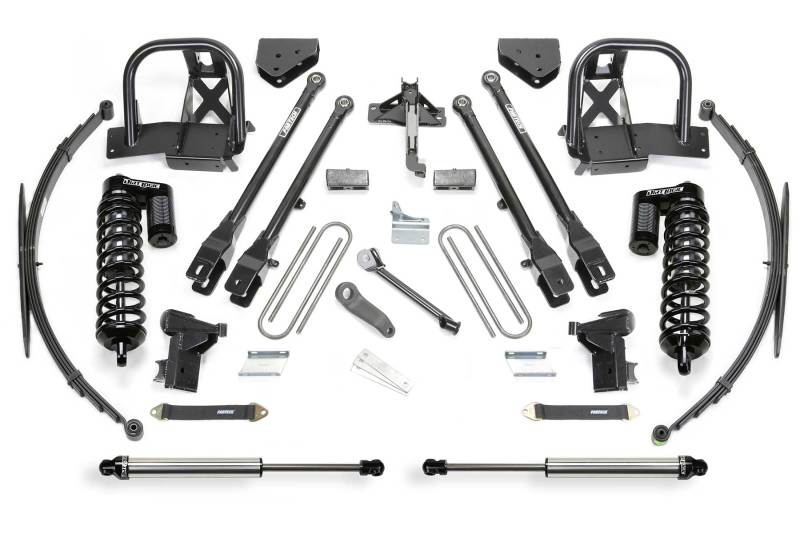

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilovers. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.

• 2" OD Heavy Wall Links
• Fabtech Heavy Duty 5 Ton Joints®
• Front Dirt Logic 4.0 Coilovers
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Leaf Springs
• Rear Block & U-bolt Kit

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.253 OD Stainless Steel Body
• 2.03 OD Billet Aluminum Piston
• 7/83 NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

Vehicle Fitments:
