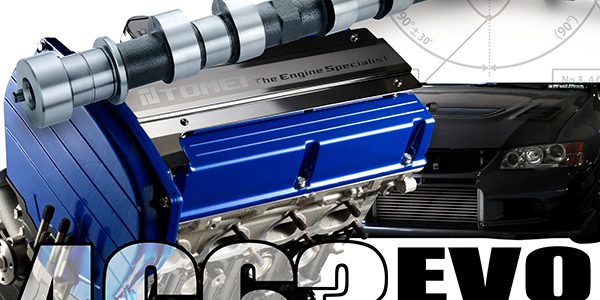

Released New Product - 4G63 CAMSHAFTS

		DURATION (°)	LIFT (mm)	IN/ EX	PART No.
					EACH	SET
EVO 7/8		272	10.70	IN	TA301D-MT01A	TA301B-MT01A
			10.20	EX	TA301F-MT01A
		282	11.50	IN	TA301D-MT01C	TA301B-MT01C
				EX	TA301F-MT01C
EVO 9		272	10.70	IN	TA301D-MT01B	TA301B-MT01B
			10.20	EX	TA301F-MT01B
		282	11.50	IN	TA301D-MT01D	TA301B-MT01D
				EX	TA301F-MT01D

TA301B-MT01A　CAMSHAFT SET PONCAM 4G63 EVO7-8 272-10.70/10.20

TA301B-MT01D　CAMSHAFT SET PROCAM 4G63 EVO9 282-11.50

4G63 EVO7-8 IN

4G63 EVO9 IN

4G63 EVO7/8  EX

4G63 EVO9  EX

	DURATION (°)	LIFT (mm)	IN/EX	PART No.
				EACH	SET
EVO 7/8	272	10.70	IN	TA301D-MT01A	TA301B-MT01A
		10.20	EX	TA301F-MT01A
EVO 9	272	10.70	IN	TA301D-MT01B	TA301B-MT01B
		10.20	EX	TA301F-MT01B

	DURATION (°)	LIFT (mm)	IN/EX	PART No.
				EACH	SET
EVO 7/8	282	11.50	IN	TA301D-MT01C	TA301B-MT01C
			EX	TA301F-MT01C
EVO 9	282	11.50	IN	TA301D-MT01D	TA301B-MT01D
			EX	TA301F-MT01D

4G63 CAMSHAFT SPEC

EVO 7/8

	TYPE	DURATION (°)	IN/EX	CAM LIFT (mm)	VALVE LIFT (mm)	ROCKER ARM RATIO	CENTER LINE (°)	BASE CIRCLE (Φ)	REQUIERED VALVE SPRING	REQUIERED VALVE LIFTER	REQUIERED CAM GEAR
	HYDRAULIC	272	IN	6.17	10.70	1.73	105	30	*1	OEM	*2
			EX	5.88	10.20	1.73	115	30	*1	OEM	*2
	HYDRAULIC	282	IN	6.65	11.50	1.73	110	30	*3	OEM	*4
			EX	6.65	11.50	1.73	115	30	*3	OEM	*4

EVO 9

	TYPE	DURATION (°)	IN/EX	CAM LIFT (mm)	VALVE LIFT (mm)	ROCKER ARM RATIO	CENTER LINE (°)	BASE CIRCLE (Φ)	REQUIERED VALVE SPRING	REQUIERED VALVE LIFTER	REQUIERED CAM GEAR
	HYDRAULIC	272	IN	6.17	10.70	1.73	130	30	*1	OEM	OEM
			EX	5.88	10.20	1.73	110	30	*1	OEM	*2
	HYDRAULIC	282	IN	6.65	11.50	1.73	130	30	*3	OEM	OEM
			EX	6.65	11.50	1.73	110	30	*3	OEM	*4
