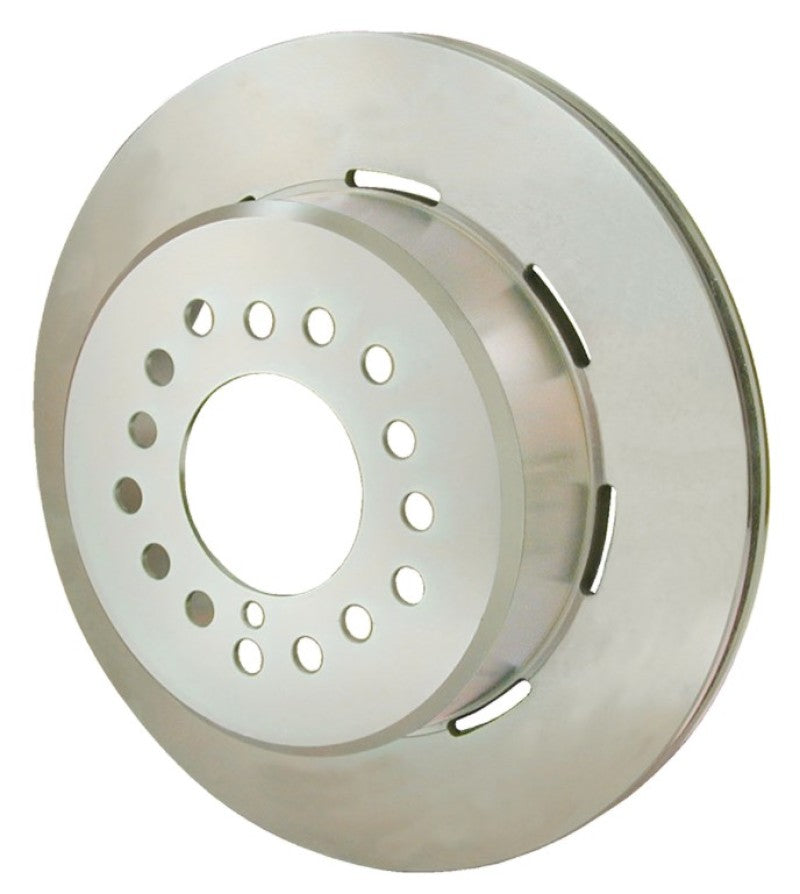

Wilwood Rotor-2.32" Offset, 12.19 x .810 - 5 Lug
Wilwood Rotor-2.32" Offset, 12.19 x .810 - 5 Lug
sku: 02RL0 | mpn: 160-9986
Regular price
$309.00
Regular price
$309.00
Sale price
$309.00
Shipping calculated at checkout.
104 in stock
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Ultralite HP 32 Vane Rotor & Hat
HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.
Specifications
| Rotor Dimensions | |
|---|---|
| Width (in): | 0.81 |
| Diameter (in): | 12.19 |
| Rotor Design | |
| Material: | Iron |
| Vane Count: | 32 V |
| Weight(Lbs): | 14.4 |
| Rotor Style & Finish | |
| Type: | ULHP |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Rotor Upgrades | |
| Bedded: | No |
| Balanced: | No |
| Lug ID / Registration (in): | 2.8 |
| Far Side Inside Diameter (in): | 8.38 |
| Offset Dimension (in): | 2.32 |
| Shoe Inside Dimension (in): | 7.24 |
| Clearance Inside Diameter (in): | 7.16 |
| Wheel Bolt Circle (in): | 5 x 4.50/4.75/5.00 |
| Stud Diameter (in): | 0.52 |
| Face Thickness (in): | 0.18 |
