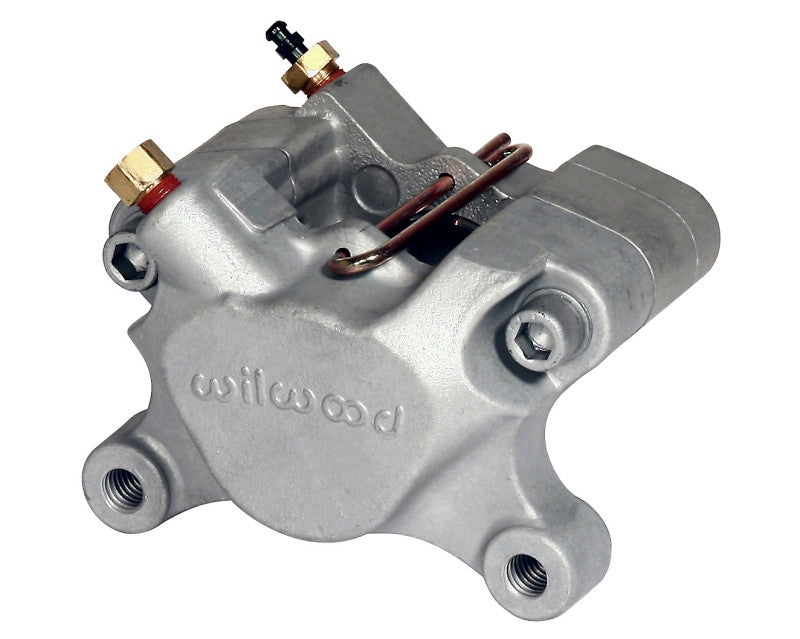

Wilwood Caliper-DLS IIIA, 1.75" Piston, .25" Disc
Wilwood Caliper-DLS IIIA, 1.75" Piston, .25" Disc
sku: 0BFEJ | mpn: 120-3842
Regular price
$132.66
Regular price
$132.66
Sale price
$132.66
Shipping calculated at checkout.
Low stock: 8 left
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Dynalite Single IIIA
Wilwood's Dynalite Single IIIA utilizes a cost effective permanent mold casting with advanced design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.8 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in many OEM applications like snowmobile & motorcycle.
Specifications
| Piston Count: | 2 |
| Piston Area (in²): | 2.40 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Width(in): | 0.25 |
| Rotor Diameter(in): | 13 |
| Pad Area (in²): | 3 |
| Pad Volume (in³): | 1.1 |
| Material: | Aluminum |
| Weight(Lbs): | 2 |
| Color: | Ano |
| Finish: | Type III Ano |
| Mount Center(in): | 3.75 |
| Mount Side: | Universal |
| Mount Type: | Lug |
| Rotor Width(in): | 0.25 |
| Maximum Rotor Width(in): | 0.25 |
| Minimum Rotor Width(in): | 1.19 |
| Maximum Rotor Diameter(in): | 13 |
| Minimum Rotor Diameter(in): | 6 |
| Brake Pad Type 1: | 6812 |
| Brake Pad Type 2: | 7012 |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 3 |
| Total Pad Volume (in³): | 1.1 |
| Piston 1 Bore(in): | 1.75 |
| Piston 2 Bore(in): | |
| Total Piston Area (in²): | 6.28 |
| Mount Type: | Lug |
| Mount Side: | Universal |
| Mount Center(in): | 3.75 |
| Mount Hole Size(in): | 0.39 |
| Mount Height(in): | 1.92 |
| Inlet Thread Size: | 3/8-24 |
