MOOG Chassis Products

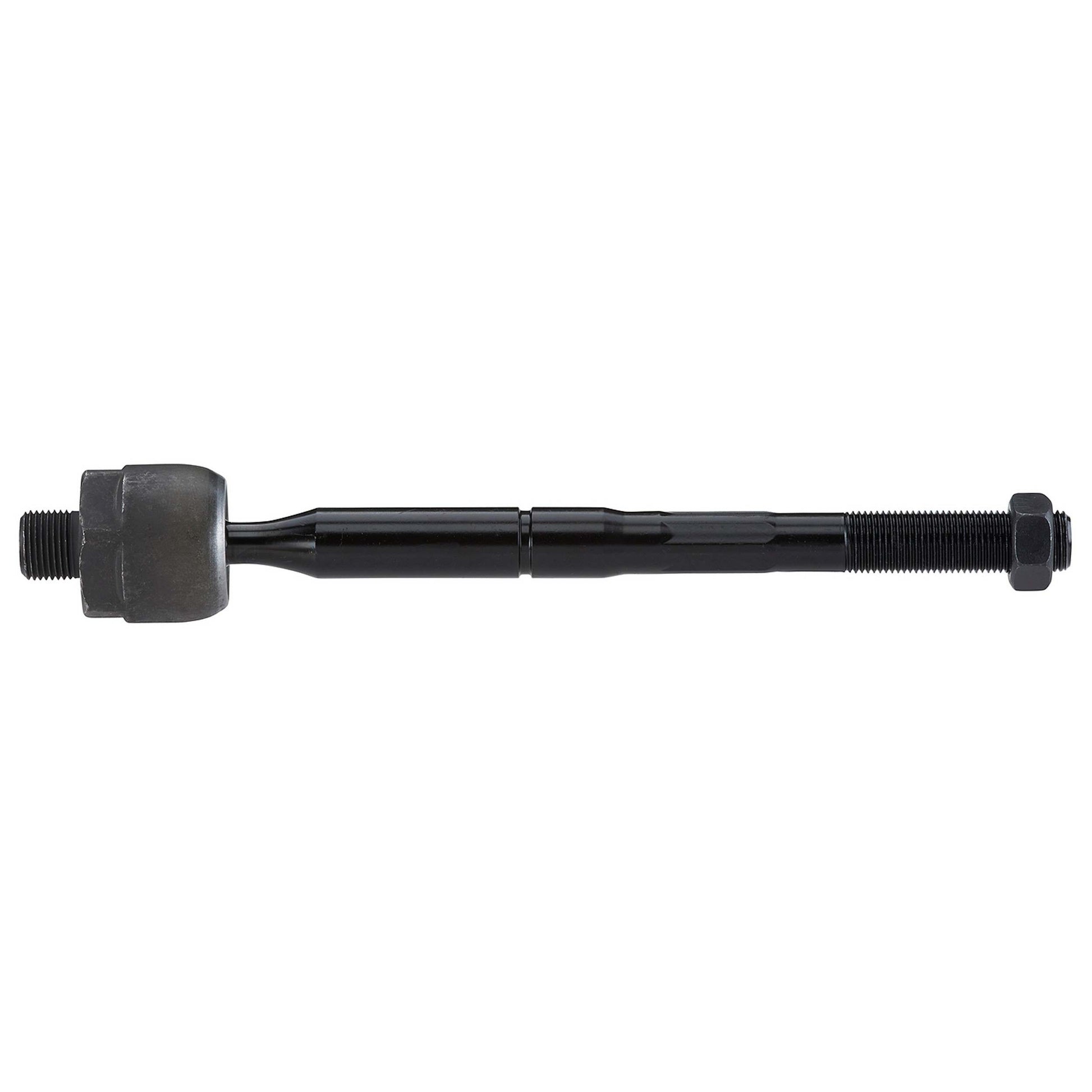

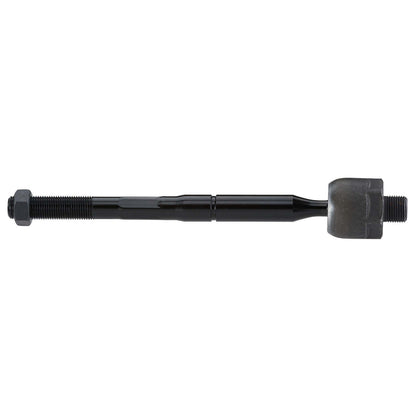

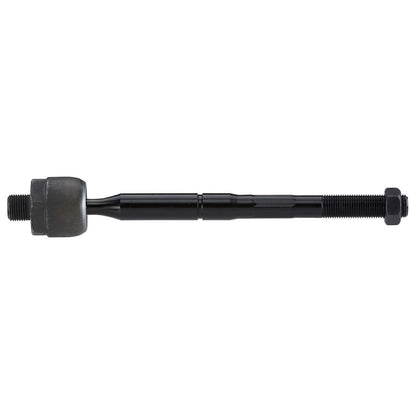

Moog Tie Rod

Moog Tie Rod

sku: 1EFZJ | mpn: EV801089
$43.13
$43.13 $43.13
Sale Sold out
Shipping calculated at checkout.

11 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications:

Tie Rods

Length (in) 9.633
Outer Tie Rod Thread M16 X 1.25-6G RH
Shaft Diameter (in) 0.686
Rack End Thread M18 X 1.0-6G RH
Rack End Type (Male / Female) MALE
End 2 Thread Diameter (MM) 18.0
End 2 Thread Pitch (MM) 6.0


Vehicle Fitments:

Year Make Model Submodel
2010 Buick Allure CXL, CXS, CX
2012 Buick LaCrosse Base, Premium, Touring, Leather, Convenience
2010 - 2011 Buick LaCrosse CXL, CX
2010 - 2012 Buick LaCrosse CXS
2012 - 2013 Buick Regal Base, GS, Turbo
2013 Buick Regal Premium
2013 - 2019 Cadillac XTS Platinum, Livery, Luxury, Base
2013 - 2018 Cadillac XTS Premium
2017 - 2019 Cadillac XTS Premium Luxury
2014 - 2019 Cadillac XTS Vsport Platinum
2014 - 2017 Cadillac XTS Vsport Premium
2010 - 2011 Saab 9-5 Aero
2011 Saab 9-5 Turbo6, Turbo4
View full details
