PART# FOR 12MM STRUT SHAFTS: TH-RSX-F1-12
PART# FOR 14MM STRUT SHAFTS: TH-RSX-F1-14
Application: 02-06 DC5/RSX 01-05 CIVIC

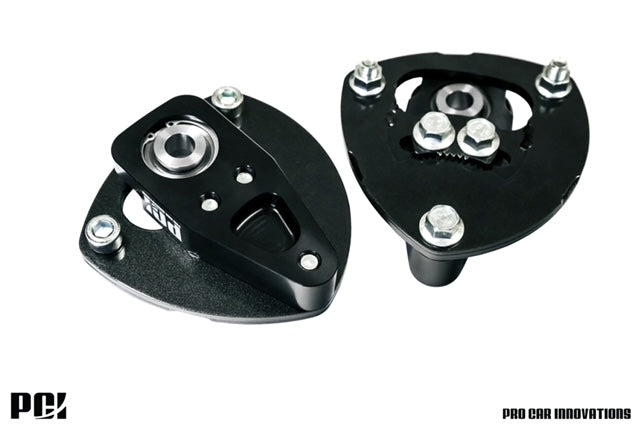

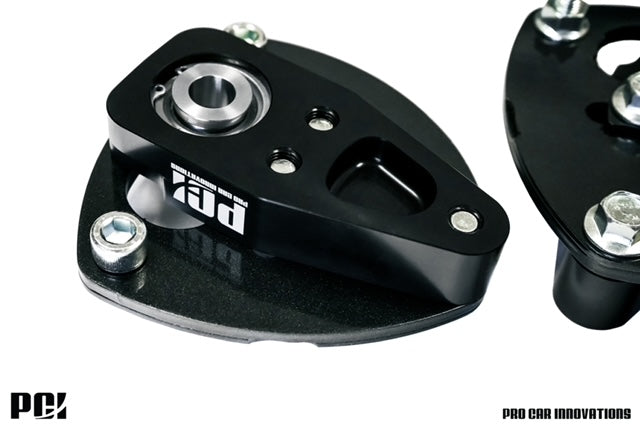

ADJUSTABLE CAMBER PLUS CASTER SPHERICAL FRONT TOP HAT SET FOR 12MM AND 14MM STRUT SHAFT THREADS.

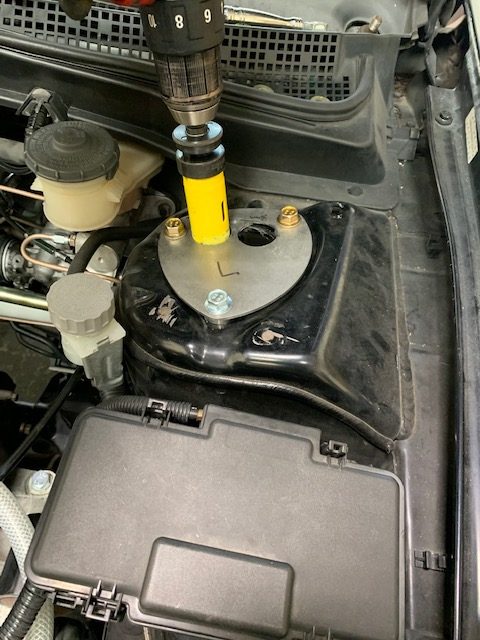

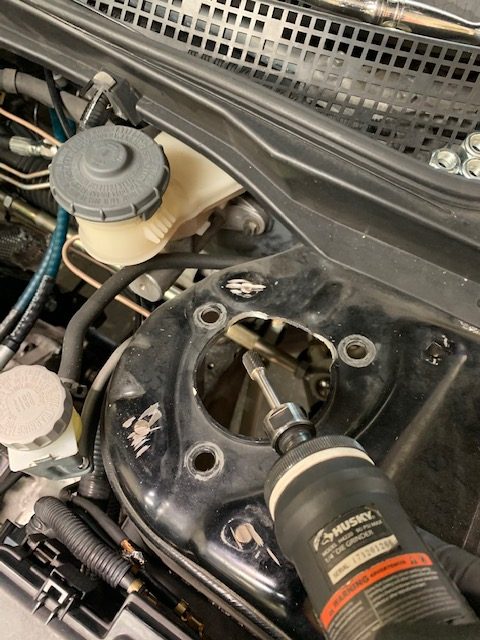

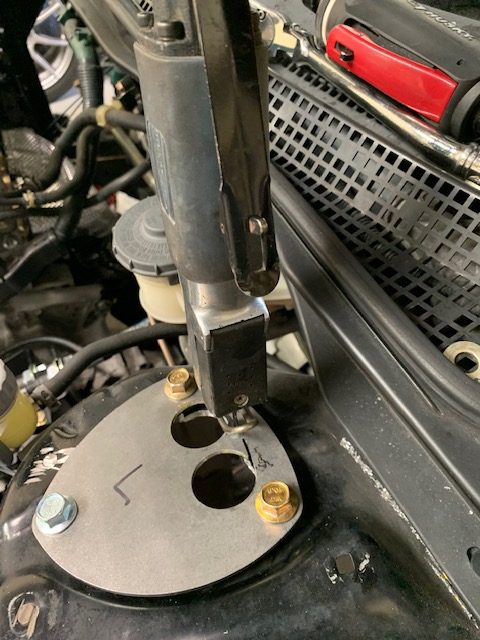

Our adjustable camber top hats have a fixed offset caster setting of plus 3 degrees over stock for increased positive caster. Due to clearance, camber adjustability, and reduction in steering ackerman we felt this was the max amount caster offset without having any negative side effects. (For installation, the shock tower will require a small cut out. *see pictures**) The kit will have a supplied bolt on steel template to easily and precisely make the modification. This will not weaken the tower or prevent the use of stock or other types of top hats.
CAMBER/CASTER SPECS:
Fixed caster: plus 3 degrees over stock
Adjustable camber: positive 1.5 degrees and negative 2.5 degrees over stock
*** MAX CAMBER OR CASTER NUMBERS WILL BE STOCK CAMBER OR CASTER NUMBERS PLUS THE ABOVE NUMBERS.***
**ALL MOUNTING HARDWARE WILL BE SUPPLIED. (M10X1.25 THREAD GRADE 10.9 ZINC PLATED HEX HEAD FLANGE BOLTS) NOT SHOWN IN PICTURES.
**MAY NOT FIT ALL STRUTS** The combined height of the spherical with the supplied top and bottom spacers is 1″ or 25.4mm. Your strut will need to have at least that plus enough extra thread to securely thread on and properly torque the nut. ***
