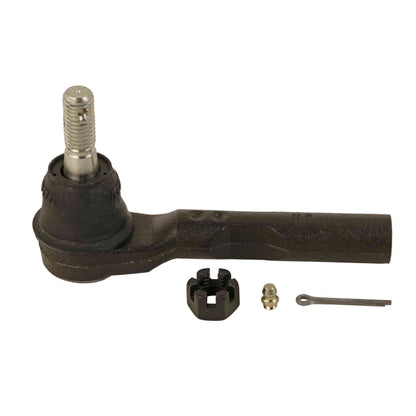

Moog Tie Rod End

Moog Tie Rod End

sku: 14P4U | mpn: ES80311
$75.63
$75.63 $75.63
Sale Sold out
Shipping calculated at checkout.

119 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Tie Rods

Greaseable Yes
Stud Center to End (in) 5.500
Rod Thread M14 X 1.50
Configuration STRAIGHT
Rod Type (Male / Female) FEMALE
Stud Diameter Dimension (top in.) 0.548
Stud Diameter Dimension (bottom in.) 0.695
Stud Thread M14 X 2.00
Rack End Thread M14 X 2.00
Specification Image Reference OUTERTIEROD.tif
Dust Boot Included Yes
End 1 Thread Diameter (MM) 14.000
End 1 Thread Pitch (MM) 1.500
End 1 Thread Direction R
End 2 Thread Diameter (MM) 14
End 2 Thread Pitch (MM) 2


Vehicle Fitments:

Year Make Model Submodel
2003 - 2014 Chevrolet Express 1500 LS, Base
2006 - 2014 Chevrolet Express 1500 LT
2003 - 2005 Chevrolet Express 2500 Base, LS
2003 - 2014 GMC Savana 1500 Base
2006 - 2014 GMC Savana 1500 LS, LT
2009 - 2013 GMC Savana 1500 SL
2003 - 2013 GMC Savana 1500 SLE
2003 - 2005 GMC Savana 2500 SLE, Base
