MOOG Chassis Products

Moog Tie Rod End:Passenger Side Outer,Hyundai,Kia

Moog Tie Rod End:Passenger Side Outer,Hyundai,Kia

sku: 14P7W | mpn: ES800718
$61.99
$65.83 $61.99
Sale Sold out
Shipping calculated at checkout.

77 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

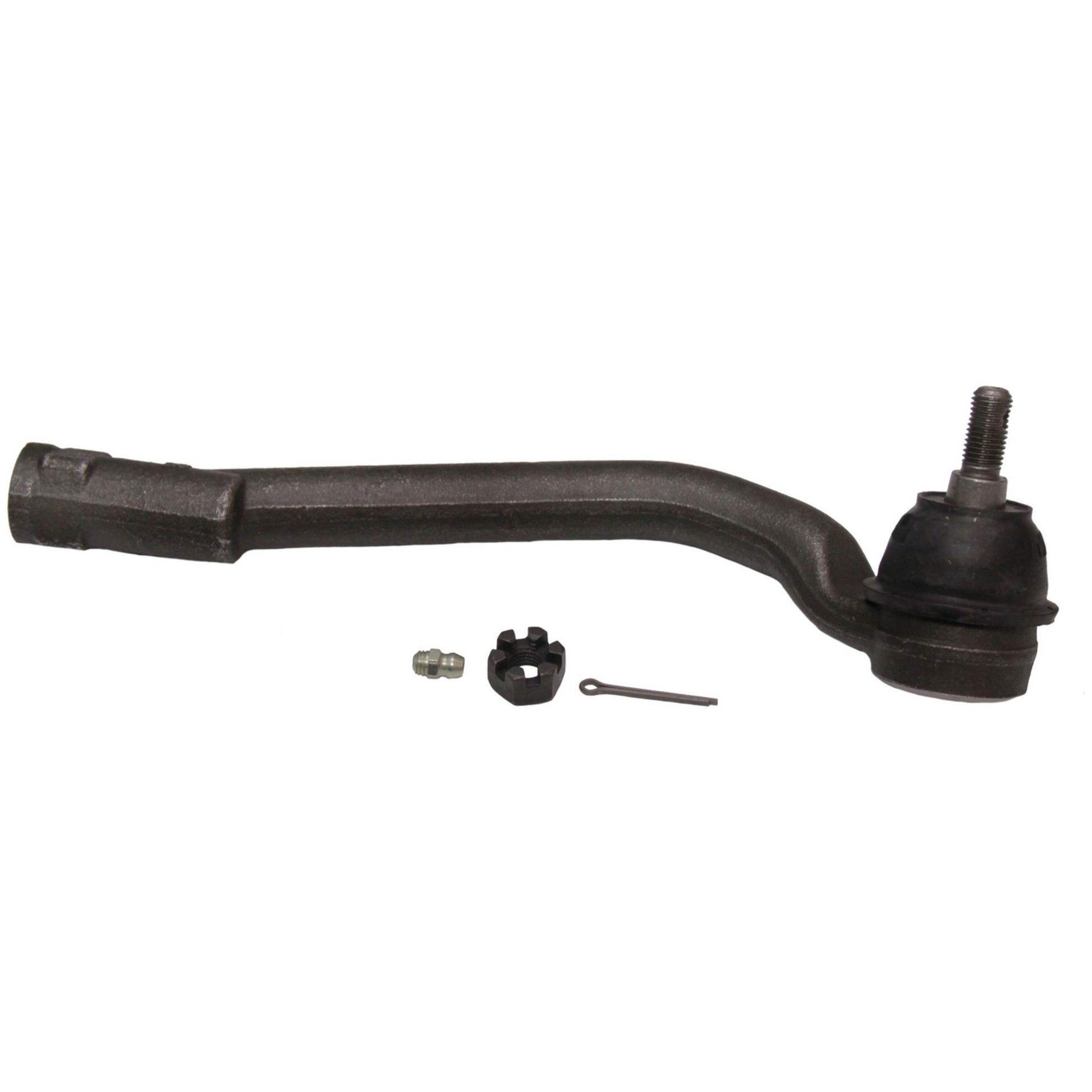

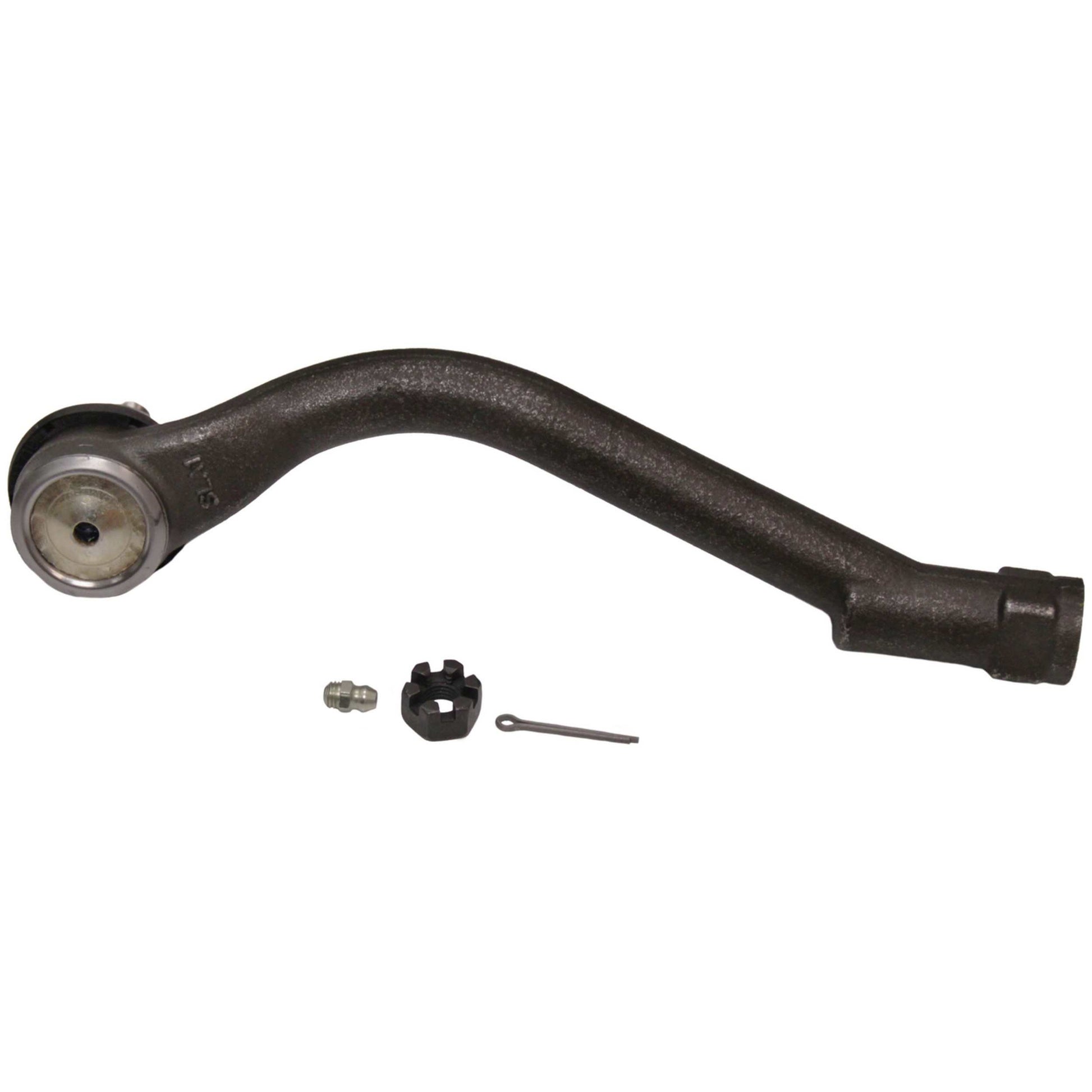

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 9.140
Rod Thread: M16 X 1.50
Configuration: BENT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.527
Stud Diameter Dimension (bottom in.): 0.593
Stud Thread: M10 X 1.25
Rack End Thread: M10 X 1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 16.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 10.0
End 2 Thread Pitch (MM): 1.25


Vehicle Fitments:

Year Make Model Submodel
2012 - 2017 Hyundai Azera Base
2014 - 2017 Hyundai Azera Limited
2011 - 2012 Hyundai Sonata 2.0T, 2.0T Limited
2013 - 2015 Hyundai Sonata Hybrid Limited
2012 Hyundai Sonata Hybrid Premium
2015 Hyundai Sonata Limited 2.0T, Ultimate 2.0T, Sport, Eco, Sport 2.0T, Premium
2011 - 2015 Hyundai Sonata Limited, GLS, GL, Hybrid, SE
2015 - 2017 Hyundai Tucson Fuel Cell
2011 - 2015 Hyundai Tucson GL
2010 - 2017 Hyundai Tucson GLS, Limited
2011 - 2013 Hyundai Tucson L
2016 - 2017 Hyundai Tucson Luxury, Sport, Premium, Base, Eco, GLS Premium, Ultimate
2014 - 2017 Hyundai Tucson SE
2017 Hyundai Tucson Value
2014 - 2016 Kia Cadenza Premium, Base, Limited
2013 - 2015 Kia Optima EX Luxury, Hybrid EX, Hybrid LX
2011 - 2015 Kia Optima EX, SX, LX
2011 - 2013 Kia Optima Hybrid
2014 Kia Optima Hybrid EX Premium
2013 Kia Optima Hybrid Premium, SXL
2014 - 2015 Kia Optima SXL Turbo, SX Turbo, Limited
2011 - 2013 Kia Sportage Base
2013 - 2016 Kia Sportage EX Luxury
2011 - 2016 Kia Sportage SX, LX, EX
