MOOG Chassis Products

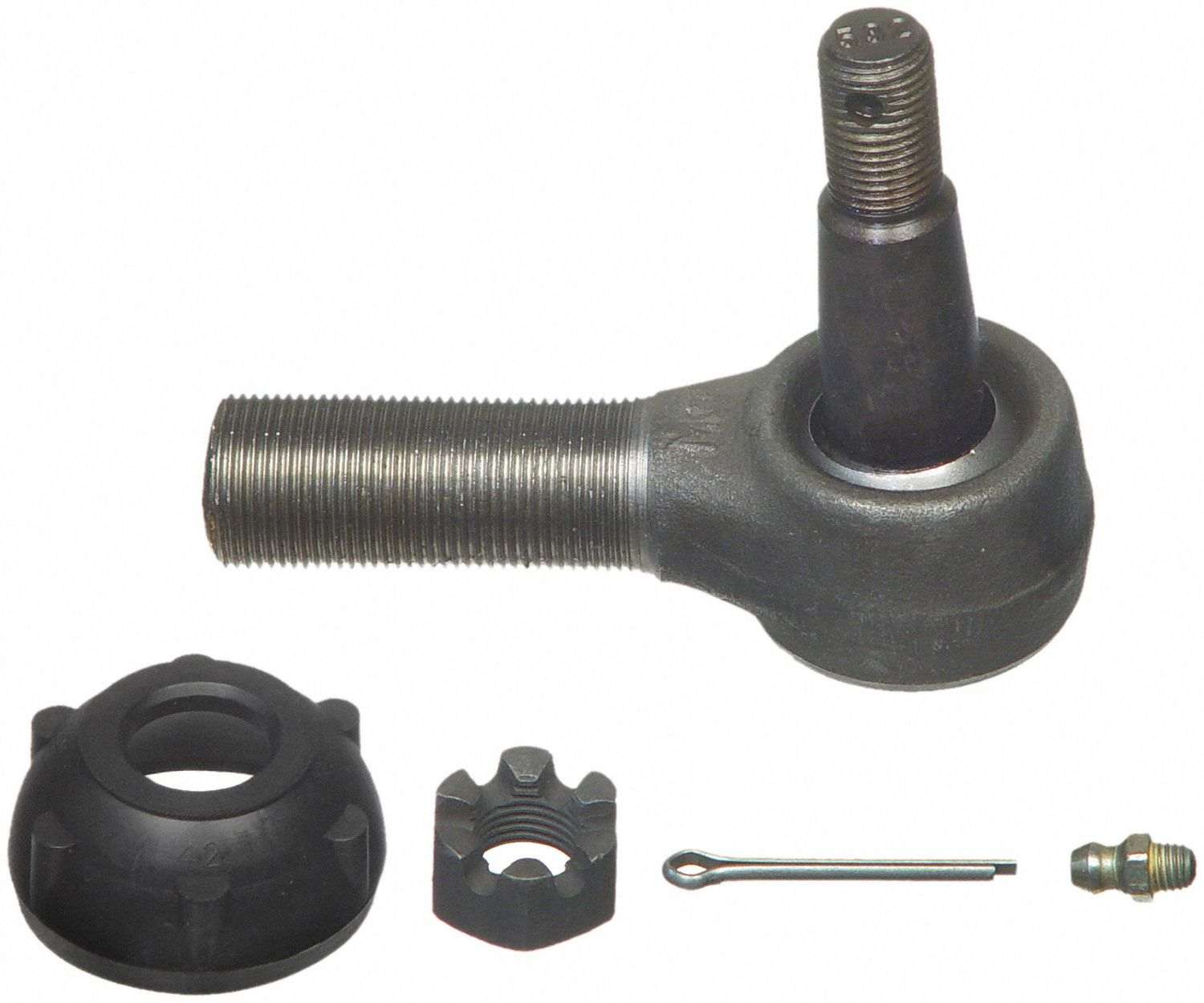

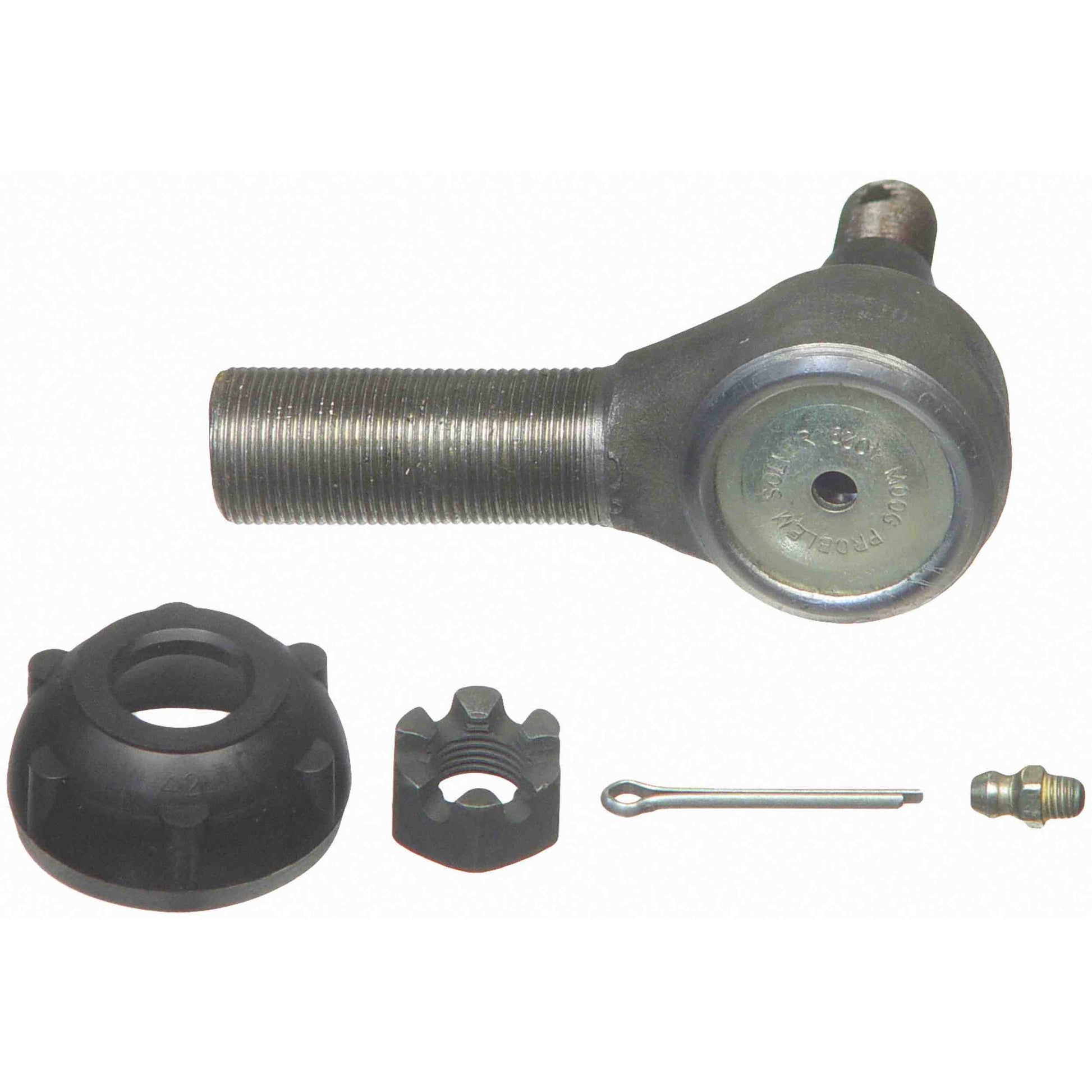

Moog Tie Rod End, Greasable, Inner, Jeep,

Moog Tie Rod End, Greasable, Inner, Jeep,

sku: 14NJ7 | mpn: ES453L
$81.30
$81.30 $81.30
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
Stud center to End (in) 3.380
Rod thread .875-18L
Configuration STRAIGHT
Rod Type (male/female) MALE
Stud Diameter Dimension (top in) 0.675
Stud Diameter Dimension (bottom in) 0.765
stud thread 9/16-18
Specification Image Reference OUTERTIEROD.tif
End 1 Thread Diameter (IN) 0.875
End 1 Thread Direction L
End 1 Threads Per Inch 18
End 2 Thread Diameter (IN) 9/16
End 2 Threads Per Inch 18
  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength


Vehicle Fitments:

Year Make Model Submodel
1974 - 1983 Jeep Cherokee Base
1981 - 1983 Jeep Cherokee Chief
1981 Jeep Cherokee Laredo
1983 Jeep Cherokee Pioneer
1974 - 1980 Jeep Cherokee S
1978 - 1980 Jeep Cherokee Wide Track
1975 - 1982 Jeep Cherokee Wide Track Chief
1979 - 1980 Jeep Cherokee Wide Track Golden Eagle
1980 - 1983 Jeep Cherokee Wide Track Laredo
1980 Jeep Cherokee Wide Track Limited
1984 - 1991 Jeep Grand Wagoneer Base
1984 - 1985 Jeep Grand Wagoneer Limited
1974 - 1988 Jeep J10 Base
1982 - 1984 Jeep J10 Laredo
1974 - 1988 Jeep J20 Base
1983 Jeep Wagoneer Alpina
1974 - 1983 Jeep Wagoneer Base
1982 - 1983 Jeep Wagoneer Brougham
1974 - 1976 Jeep Wagoneer Custom
1979 - 1983 Jeep Wagoneer Limited
View full details
