MOOG Chassis Products

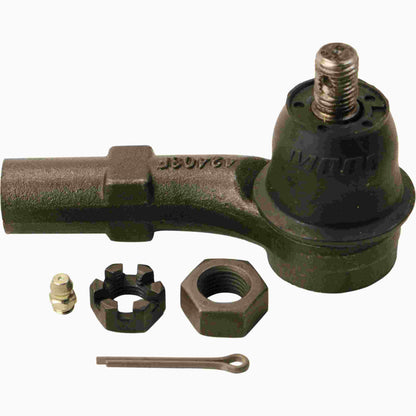

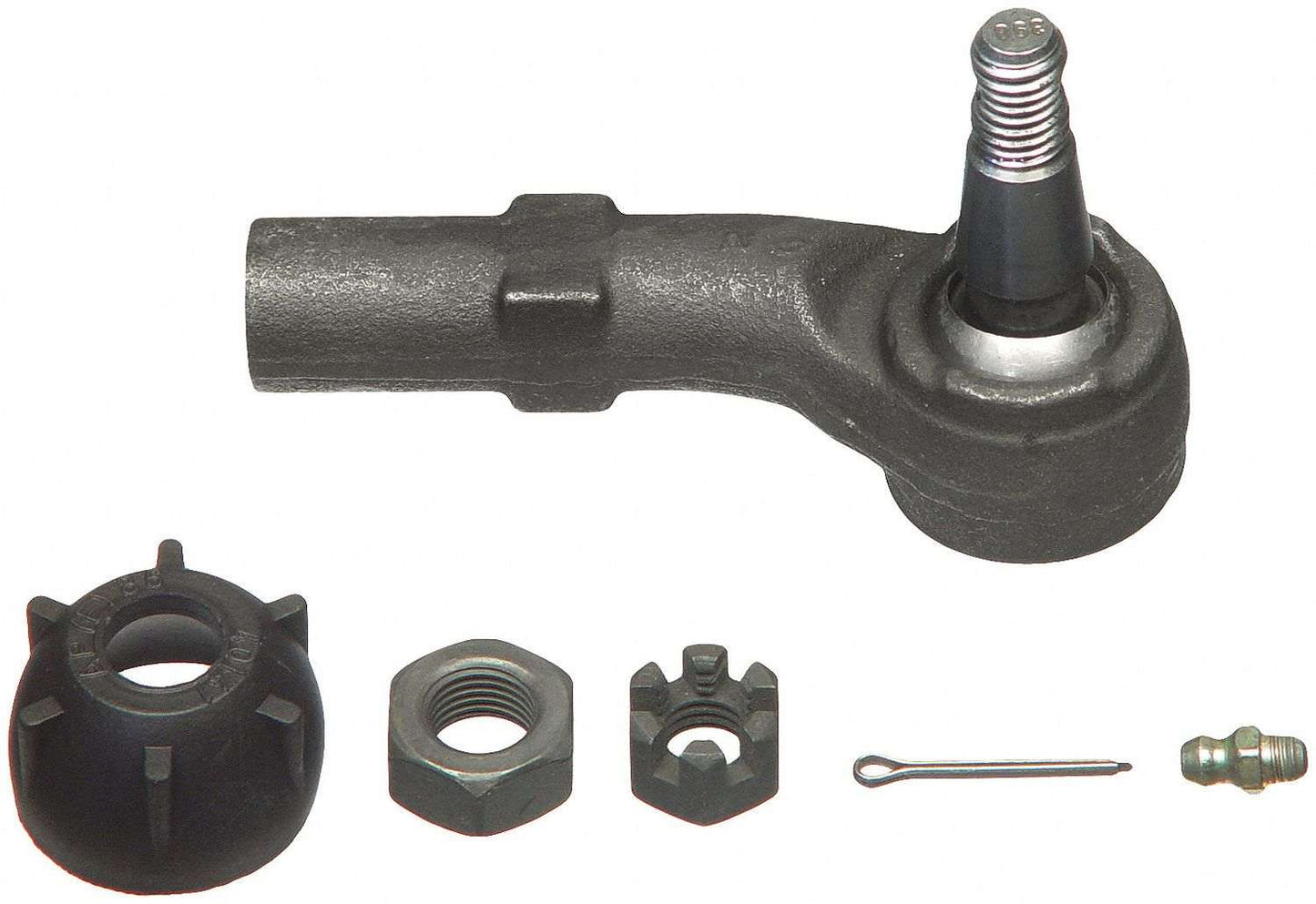

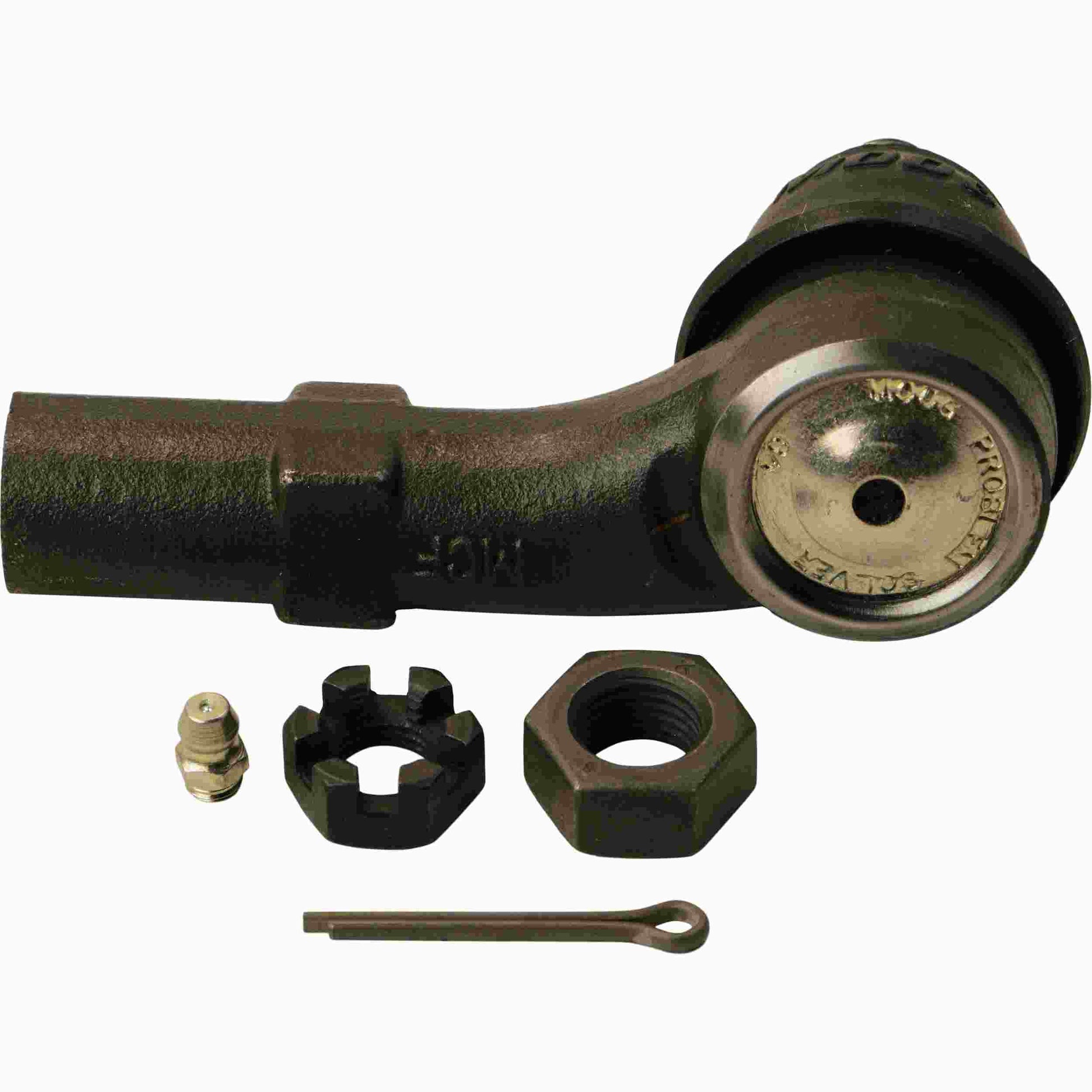

Moog Tie Rod End

Moog Tie Rod End

sku: 14NZY | mpn: ES3525
$38.05
$38.05 $38.05
Sale Sold out
Shipping calculated at checkout.

16 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Tie Rods

Greaseable Yes
Stud Center to End (in) 3.7
Rod Thread M14 X 1.50
Configuration OFFSET
Rod Type (Male / Female) FEMALE
Stud Diameter Dimension (top in.) 0.518
Stud Diameter Dimension (bottom in.) 0.662
Stud Thread M12 X 1.50
Rack End Thread M12 X 1.50
Specification Image Reference OUTERTIEROD.tif
Dust Boot Included Yes
End 1 Thread Diameter (MM) 14.000
End 1 Thread Pitch (MM) 1.500
End 1 Thread Direction R
End 2 Thread Diameter (MM) 12
End 2 Thread Pitch (MM) 1.5


Vehicle Fitments:

Year Make Model Submodel
2006 - 2008 Volkswagen Beetle 2.5
1998 - 2010 Volkswagen Beetle Base
2003 - 2009 Volkswagen Beetle Cabrio
2009 - 2010 Volkswagen Beetle Comfortline
1999 - 2005 Volkswagen Beetle GL
1999 - 2010 Volkswagen Beetle GLS
2002 - 2005 Volkswagen Beetle GLS Sport Turbo, Turbo S
2003 Volkswagen Beetle GLS Sport, GLS Edicion especial
2005 Volkswagen Beetle GLS TDI
1999 - 2004 Volkswagen Beetle GLX
2001 - 2005 Volkswagen Beetle GLX Sport Turbo
2000 - 2001 Volkswagen Beetle GLX Turbo, GLS Turbo
2008 Volkswagen Beetle Hot Wheels, SE, 10 Anos, S
1999 Volkswagen Beetle Lujo
2001 - 2010 Volkswagen Beetle Sport
2006 - 2010 Volkswagen Beetle Sport GLX
1998 - 2006 Volkswagen Beetle TDI
2009 Volkswagen Beetle Trendline
2000 - 2003 Volkswagen Golf Base
2003 - 2006 Volkswagen Golf Europa
2004 Volkswagen Golf GL TDI
1999 - 2006 Volkswagen Golf GL, GLS
2004 - 2006 Volkswagen Golf GLS TDI
2002 - 2006 Volkswagen Golf GTI 1.8T
2003 Volkswagen Golf GTI 20th Anniversary
2002 Volkswagen Golf GTI 337
2000 - 2001 Volkswagen Golf GTI GLX, GTI GLS
2001 - 2003 Volkswagen Golf GTI Turbo
2000 - 2002 Volkswagen Golf Lujo, Verano, Confort
1999 Volkswagen Golf MI, Wolfsburg Edition
1999 - 2005 Volkswagen Golf TDI, GTI VR6, GTI
2003 - 2005 Volkswagen Golf Trendline, Comfortline
2007 - 2010 Volkswagen Golf City Base
2006 Volkswagen Jetta 2.0T, Value Edition, Soccer 2, Winter 1, 475 Aniversario, Soccer 1, Winter 2
2005 - 2006 Volkswagen Jetta 2.5
1999 Volkswagen Jetta CL, GLS Confort, Base, VR6 Carat
2004 - 2005 Volkswagen Jetta Comfortline
2004 Volkswagen Jetta Europa 50 Aniversario, GLI 50 Aniversario
2000 - 2002 Volkswagen Jetta GL Confort
2001 Volkswagen Jetta GL Variant, GLS Variant, GLS Wolfsburg
2002 - 2006 Volkswagen Jetta GLI, Trendline, Europa
2005 Volkswagen Jetta GLS TDI, Summer Edition, Special Edition, GL TDI, Limited Edition
2000 - 2001 Volkswagen Jetta GLS Turbo
1999 - 2000 Volkswagen Jetta GLS VR6
1999 - 2005 Volkswagen Jetta GLS, GL
1999 - 2002 Volkswagen Jetta GLX VR6
2003 Volkswagen Jetta Jazz, Europa Wolfsburg, Trendline Wolfsburg, Edicion Limitada
2002 - 2005 Volkswagen Jetta Sportline
1999 - 2006 Volkswagen Jetta TDI
2002 - 2003 Volkswagen Jetta Variant Trendline, Confortline, Variant Comfortline, Highline
1999 - 2003 Volkswagen Jetta Wolfsburg Edition, GLX
2007 - 2009 Volkswagen Jetta City Base
