Moog Tie Rod End:Greasable,Outer,1/2-20 Threads,Dodge,LT

Moog Tie Rod End:Greasable,Outer,1/2-20 Threads,Dodge,LT

sku: 14N67 | mpn: ES2847RT
$46.64
$46.64 $46.64
Sale Sold out
Shipping calculated at checkout.

28 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

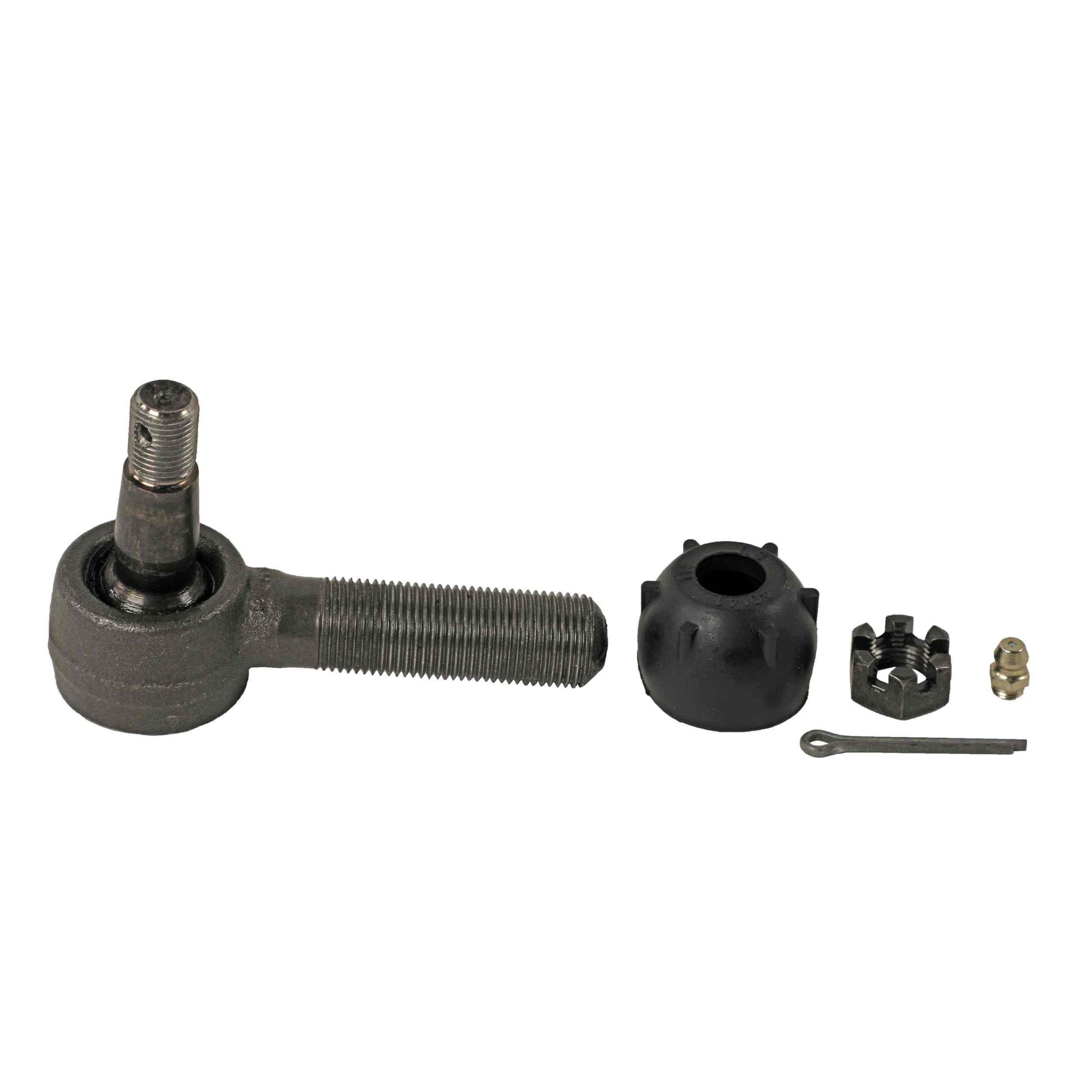

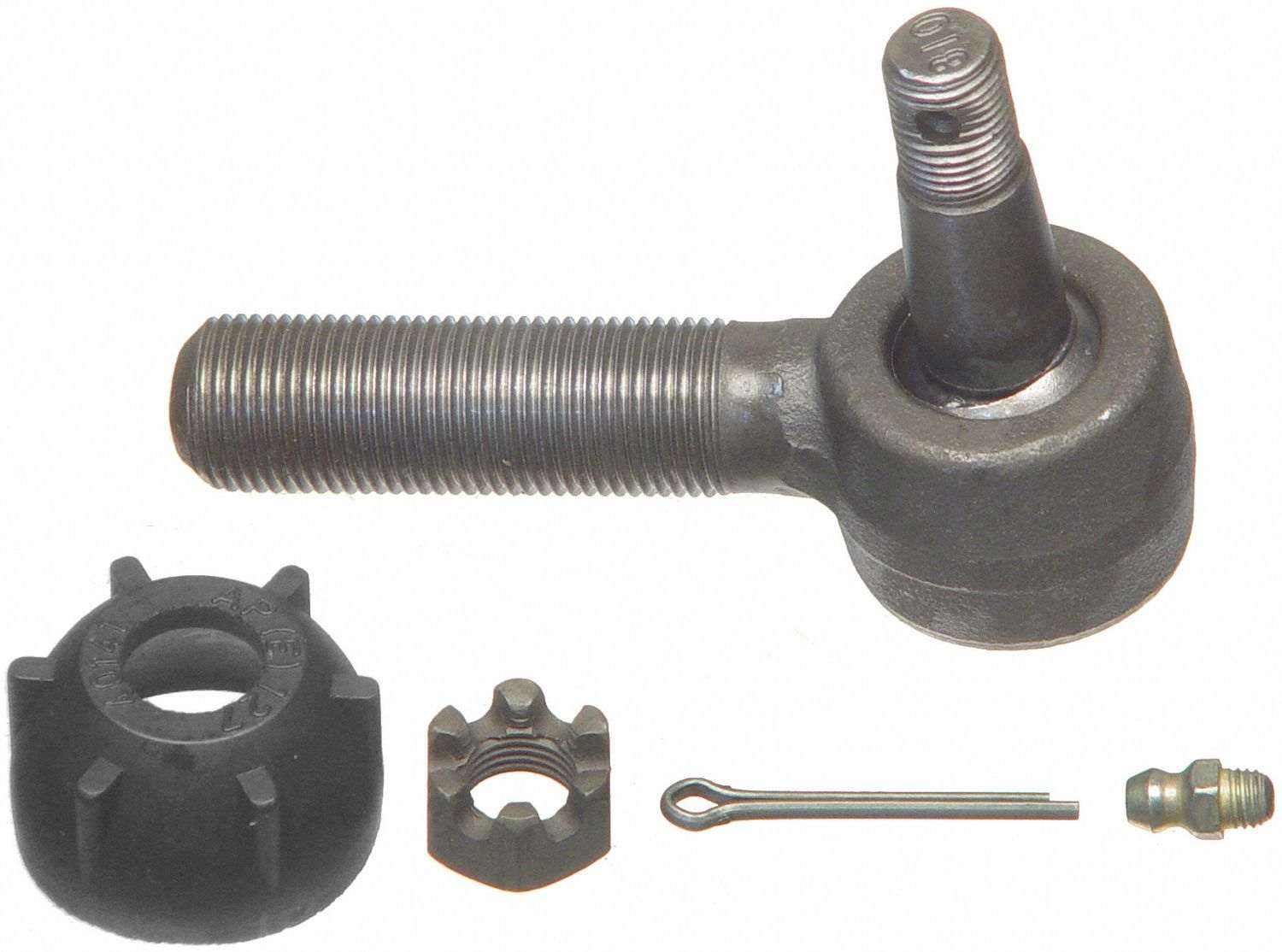

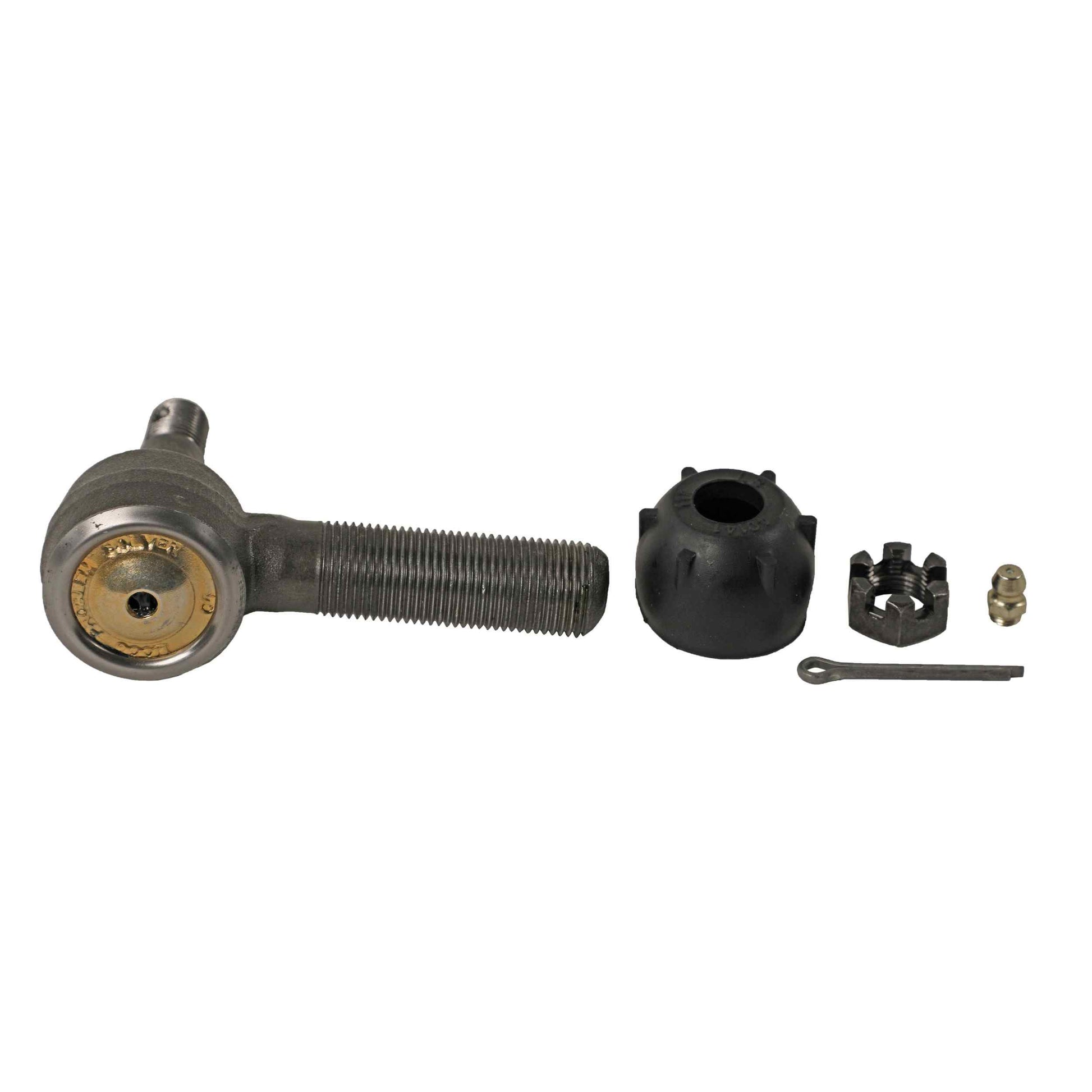

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.385
Rod Thread: 3/4" - 16"
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.543
Stud Diameter Dimension (bottom in.): 0.630
Stud Thread: 1/2" - 20"
Rack End Thread: 1/2" - 20"
Dust Boot Included: Yes
End 1 Thread Diameter (in): 3/4
End 1 Threads Per Inch: 16
End 1 Thread Direction: R
End 2 Thread Diameter (in): 1/2
End 2 Thread Direction: R
End 2 Threads Per Inch: 20


Vehicle Fitments:

Year Make Model Submodel
1991 - 1993 Dodge Ramcharger Canyon Sport
1986 - 1993 Dodge Ramcharger Royal SE, Base
1986 - 1989 Dodge W100 Custom
1986 - 1993 Dodge W150 Base
1990 - 1991 Dodge W150 S
1986 - 1993 Dodge W250 Base
