MOOG Hub Assemblies

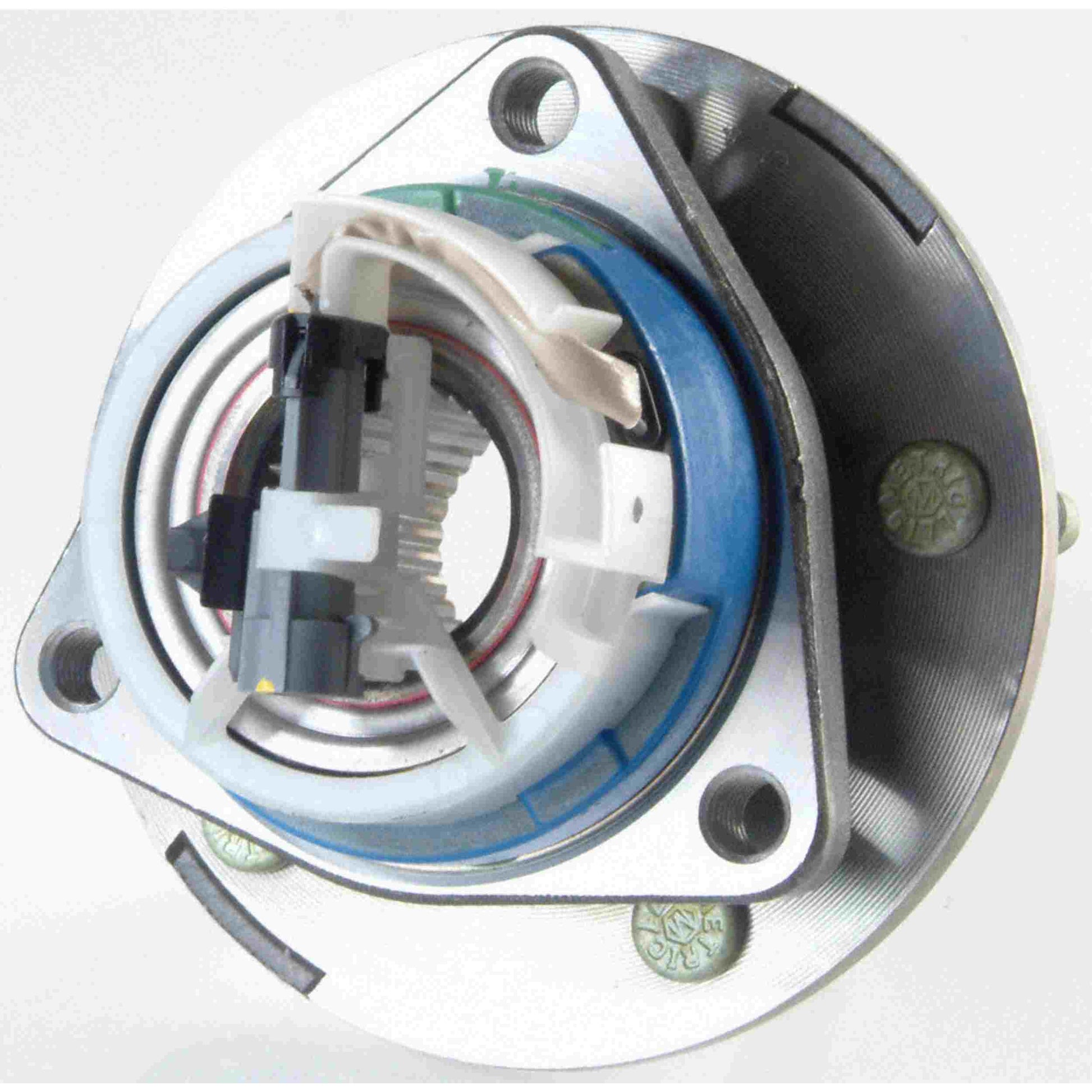

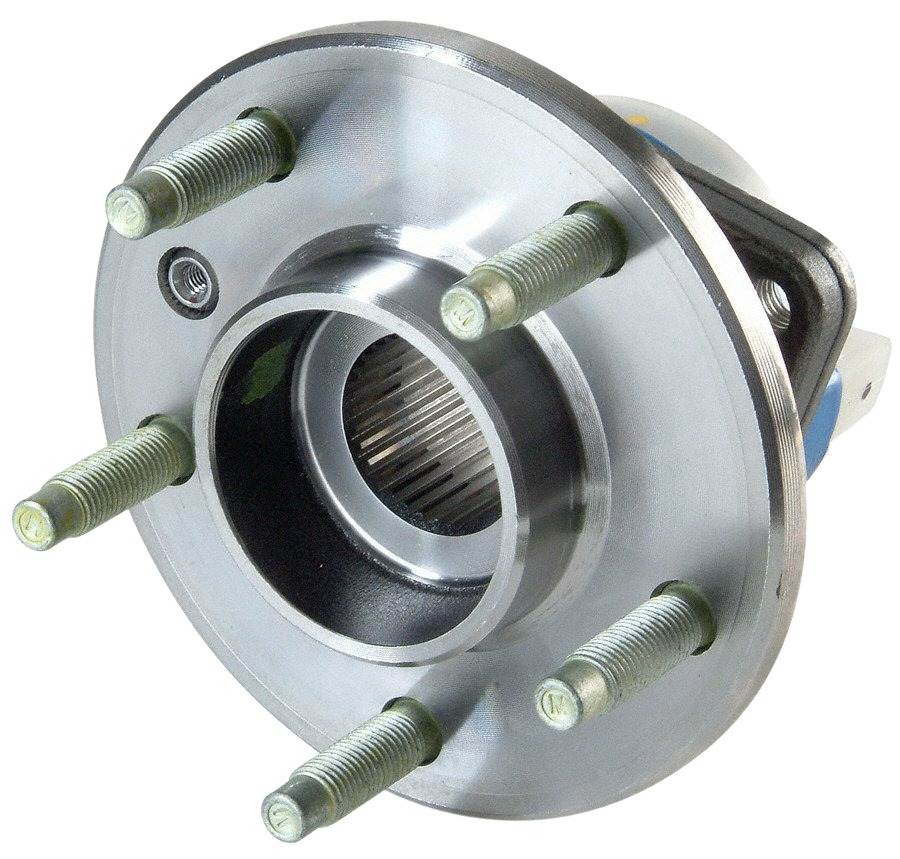

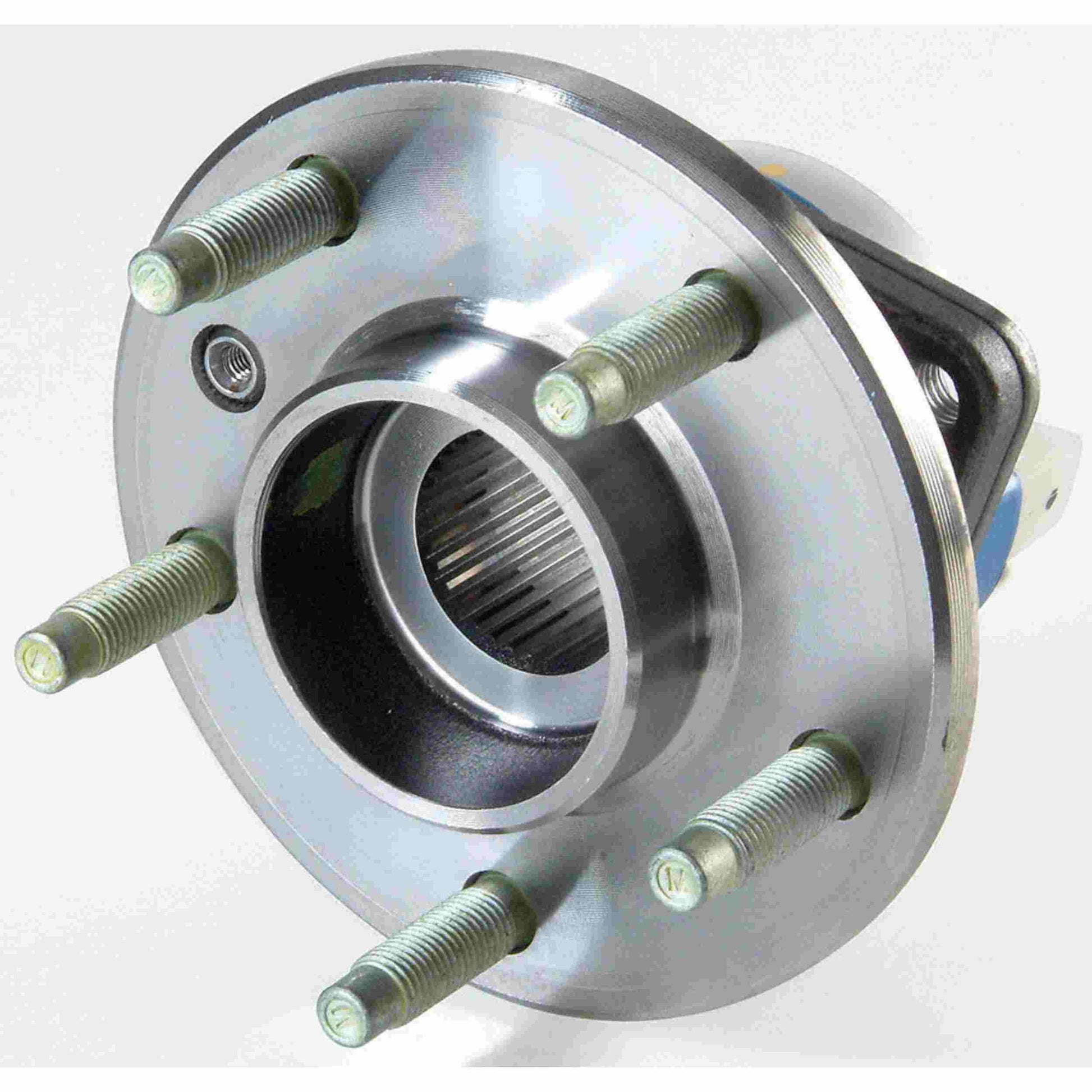

Moog Wheel Hub and Bearing Assembly:Front,Chevy,GMC,Each

Moog Wheel Hub and Bearing Assembly:Front,Chevy,GMC,Each

sku: 14NWX | mpn: 513200
$146.24
$211.57 $146.24
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

  • Innovative roll form design ensures consistent and optimal preload.
  • Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
  • Engineered to overcome problems and deliver smooth, reliable performance.
  • MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 146.0
Bolt Circle Diameter (B): 4.750
Bolt Circle Diameter Metric (B): 120.8
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.5
Flange Offset (F): 47.0
Hub Pilot Diameter (G): 88.9
Bolt Hole MET (I): M12X1.75
Bolt Hole Quantity: 5
Flange Shape (K): MODIFIED
ABS Sensor: Cable
Location: Front Wheel


Vehicle Fitments:

Year Make Model Submodel
1998 - 2005 Chevrolet Blazer Base
1998 - 2004 Chevrolet Blazer LS
1998 - 2002 Chevrolet Blazer LT
2002 Chevrolet Blazer LTZ
1999 - 2001 Chevrolet Blazer Trailblazer
2001 - 2005 Chevrolet Blazer Xtreme
2003 - 2005 Chevrolet Blazer ZR2
2000 - 2001 GMC Jimmy Diamond Edition
1998 - 2000 GMC Jimmy Envoy
1998 - 2004 GMC Jimmy SLS
1998 - 2001 GMC Jimmy SLT, SL, SLE
