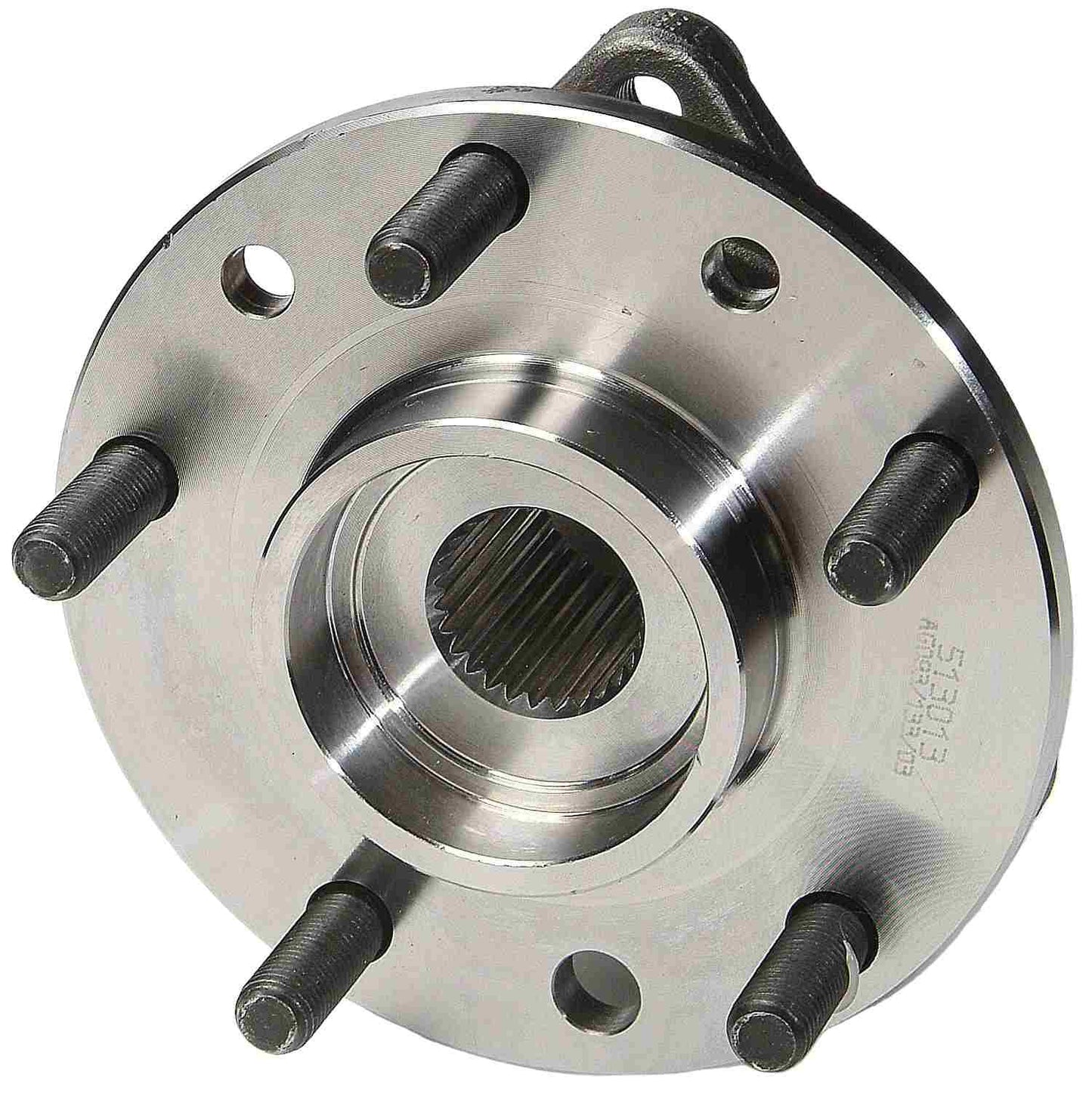

Moog Wheel Hub and Bearing:Steel,Buick,Cadillac,Chevy,GMC,Excaliber
Moog Wheel Hub and Bearing:Steel,Buick,Cadillac,Chevy,GMC,Excaliber
sku: 14MV3 | mpn: 513013
Regular price
$136.70
Regular price
$202.84
Sale price
$136.70
Shipping calculated at checkout.
Low stock: 9 left
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
- Application specific design
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 144.5
Bolt Circle Diameter (B): 4.750
Bolt Circle Diameter Metric (B): 120.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 47.2
Hub Pilot Diameter (G): 80.7
Bole Hole MET (I): M12X1.75
Number of Splines: 27
ABS Sensor: No
Flange Shape (K): MODIFIED TRIANGLE
ABS Sensor: Sensor
Location: Front Wheel
Bearing OD (Inch): 11.378
Bearing Width (Inch): 4.264
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 4.264
Outter Race OD (Inch): 5.689
Outter Race Width (Inch): 4.264
Bearing OD (mm): 144.5
Bearing Width (mm): 108.3
Inner Race Radius (mm): 3.6
Inner Race Width (mm): 108.3
Outter Race OD (mm): 144.5
Outter Race Width (mm): 108.3
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1979 - 1985 | Buick | Riviera | Base |
| 1982 | Buick | Riviera | Limited Edition |
| 1983 - 1985 | Buick | Riviera | Luxury |
| 1979 - 1980 | Buick | Riviera | S |
| 1981 - 1985 | Buick | Riviera | T-Type |
| 1983 | Buick | Riviera | XX Anniversary Edition |
| 1979 - 1985 | Cadillac | Eldorado | Biarritz, Cabriolet, Base |
| 1981 | Cadillac | Eldorado | Brougham d'Elegance |
| 1982 - 1985 | Cadillac | Eldorado | Touring |
| 1980 - 1985 | Cadillac | Seville | Elegante, Base |
| 1988 | Chevrolet | Corvette | 35th Anniversary Edition |
| 1993 | Chevrolet | Corvette | 40th Anniversary Edition |
| 1984 - 1996 | Chevrolet | Corvette | Base |
| 1996 | Chevrolet | Corvette | Grand Sport, Collector's Edition |
| 1986 - 1995 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1990 - 1995 | Chevrolet | Corvette | ZR-1 |
| 1991 | Chevrolet | S10 | Baja |
| 1983 - 1993 | Chevrolet | S10 | Base |
| 1983 - 1990 | Chevrolet | S10 | Durango |
| 1992 - 1993 | Chevrolet | S10 | EL |
| 1991 - 1993 | Chevrolet | S10 | Maxi |
| 1983 - 1989 | Chevrolet | S10 | Sport |
| 1983 - 1992 | Chevrolet | S10 | Tahoe |
| 1987 - 1989 | Chevrolet | S10 Blazer | High Country |
| 1983 - 1990 | Chevrolet | S10 Blazer | Sport |
| 1991 | Chevrolet | S10 Blazer | Tahoe LT |
| 1983 - 1991 | Chevrolet | S10 Blazer | Tahoe, Base |
| 1990 - 1991 | GMC | Jimmy | Base |
| 1990 | GMC | Jimmy | Sierra Classic |
| 1987 | GMC | S15 | EL |
| 1983 - 1988 | GMC | S15 | Gypsy |
| 1983 - 1990 | GMC | S15 | High Sierra, Sierra Classic, Base |
| 1983 - 1991 | GMC | S15 Jimmy | Base |
| 1983 - 1990 | GMC | S15 Jimmy | Gypsy, Sierra Classic |
| 1985 | GMC | S15 Jimmy | High Sierra |
| 1991 | GMC | S15 Jimmy | SLS, SLE, SLT |
| 1988 - 1989 | GMC | S15 Jimmy | Timberline |
| 1979 - 1985 | Oldsmobile | Toronado | Brougham |
| 1985 | Oldsmobile | Toronado | Caliente |
| 1980 - 1981 | Oldsmobile | Toronado | XSC |
| 1979 | Oldsmobile | Toronado | XSR |
